Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| A/T Shift Indicator Controller | Behind dash, left of steering column. |
| Cruise Control Unit | At right kick panel. |
| Electronic Brake Control Module (EBCM) (1995) | Below right front seat. |
| Electronic Brake Control Module (EBCM) (1996) | Right rear corner of engine compartment. |
| Electronic Ignition (EI) Assembly (3.2L) (1995) | Center front of engine. See Figure . |

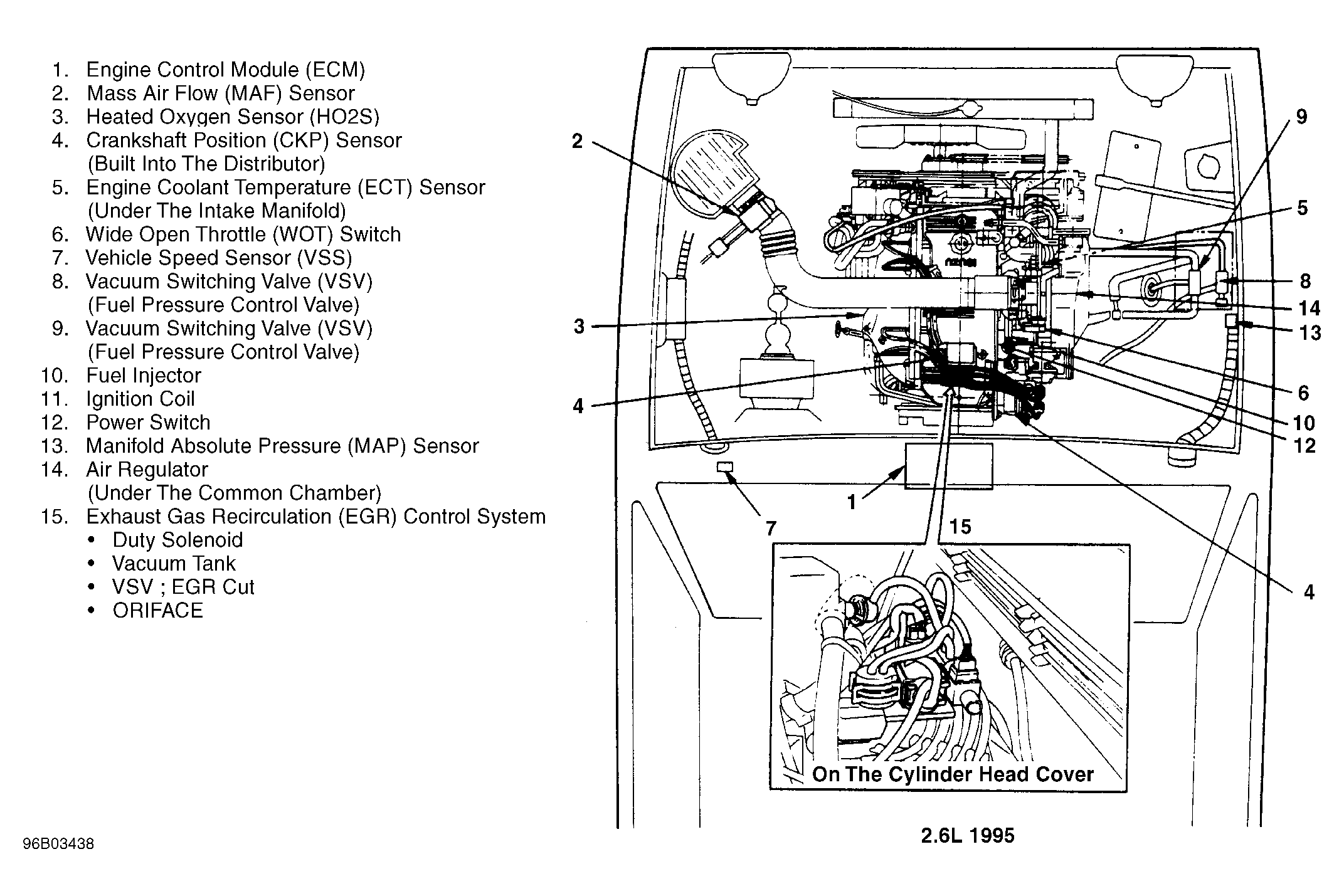

| Engine Control Module (ECM) (2.6L) (1995) | Below center of dash. See Figure . |

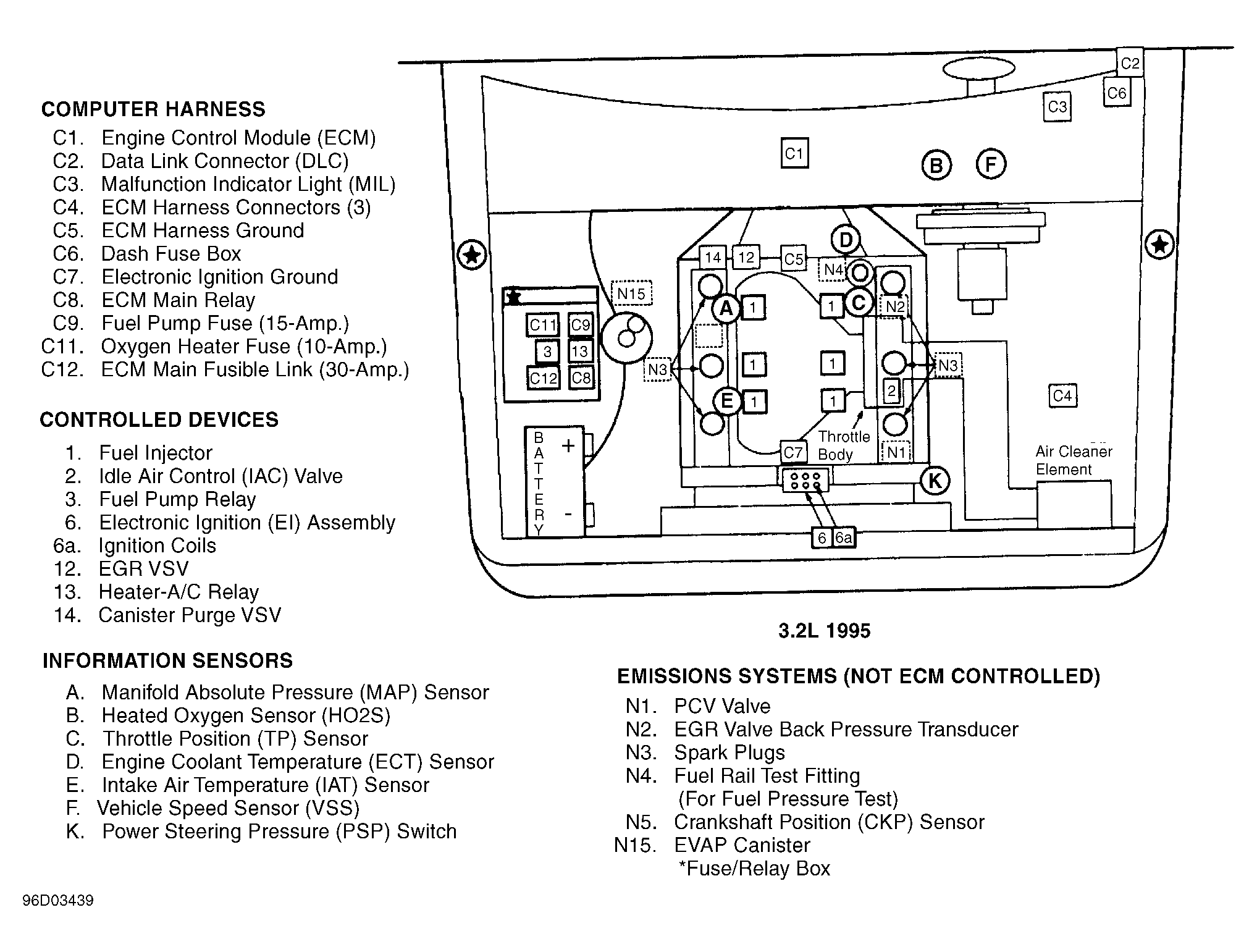

| Engine Control Module (ECM) (3.2L) (1995) | Below center of dash. See Figure . |

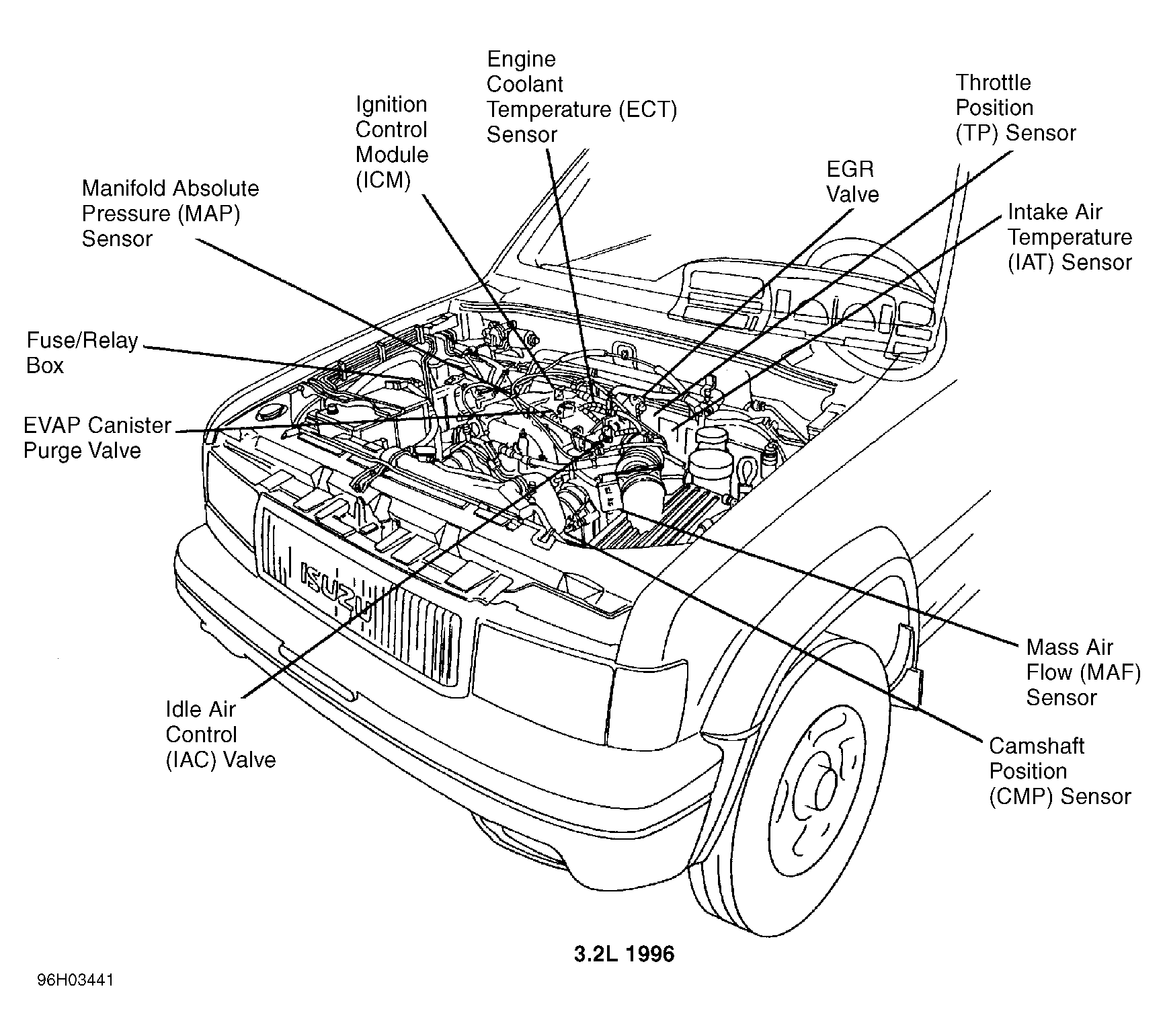

| Ignition Control Module (ICM) (3.2L) (1996) | Top rear of engine. See Figure . |
| Powertrain Control Module (PCM) (1996) | Below center of dash. |
| Sensing & Diagnostic Module (SDM) | Below center of dash. |
| Shift Lock Controller | Below shift lever cover. |
| Transmission Control Module (TCM) (1995) | Behind dash, left of steering column. |
| Wheel Anti-Lock Brake Controller (Rear) (1996) | Below right front seat. |
| Wiper Controller (Rear) | Left side of luggage room, behind lower trim panel. |
