PCM Pinout and Description

ENGINE CONTROLS

PCM Connector C1:

PCM Connector C1

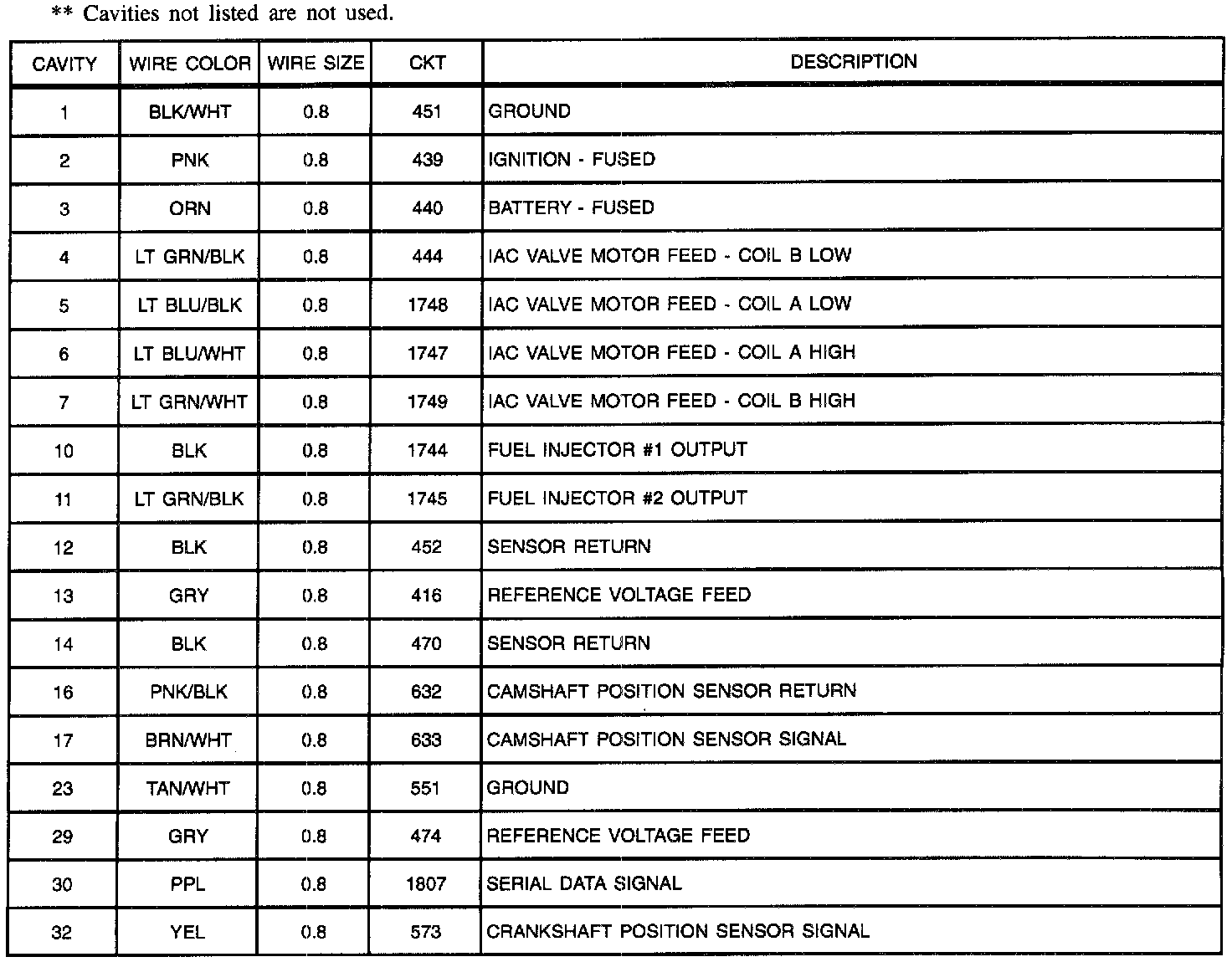

PCM Connector C1 Pin-Out (Connector Pin Descriptions):

PCM Connector C1 Pin-Out (Connector Pin Descriptions)

PCM Connector C2 (Clear):

PCM Connector C2 (Clear)

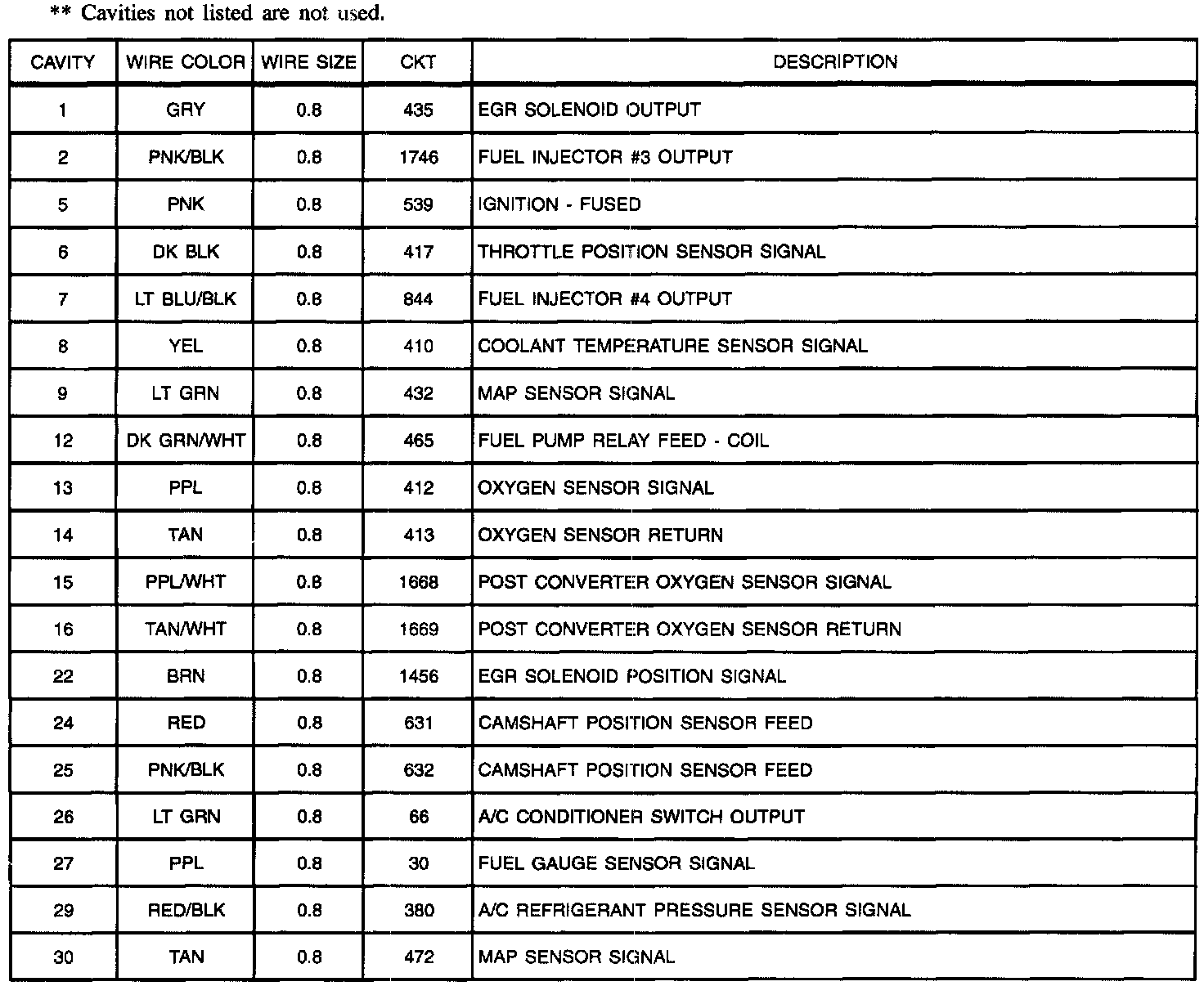

PCM Connector C2 (Clear) Pin-Out (Connector Pin Descriptions):

PCM Connector C2 (Clear) Pin-Out (Connector Pin Descriptions)

PCM Connector C3 (Blue):

PCM Connector C3 (Blue)

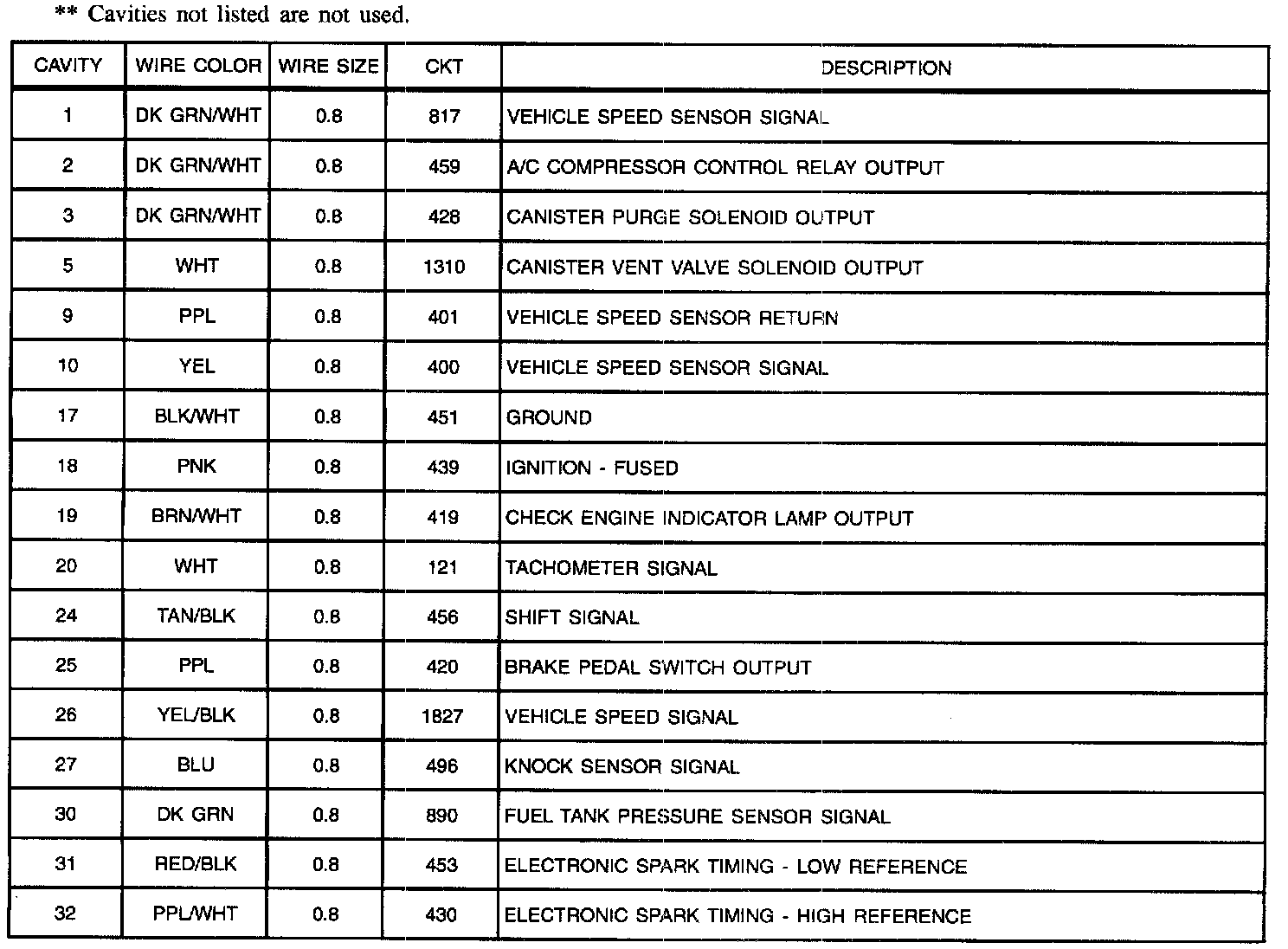

PCM Connector C3 (Blue) Pin-Out (Connector Pin Descriptions):

PCM Connector C3 (Blue) Pin-Out (Connector Pin Descriptions)
