DTC P0351 - Ignition Control Circuit: Notes

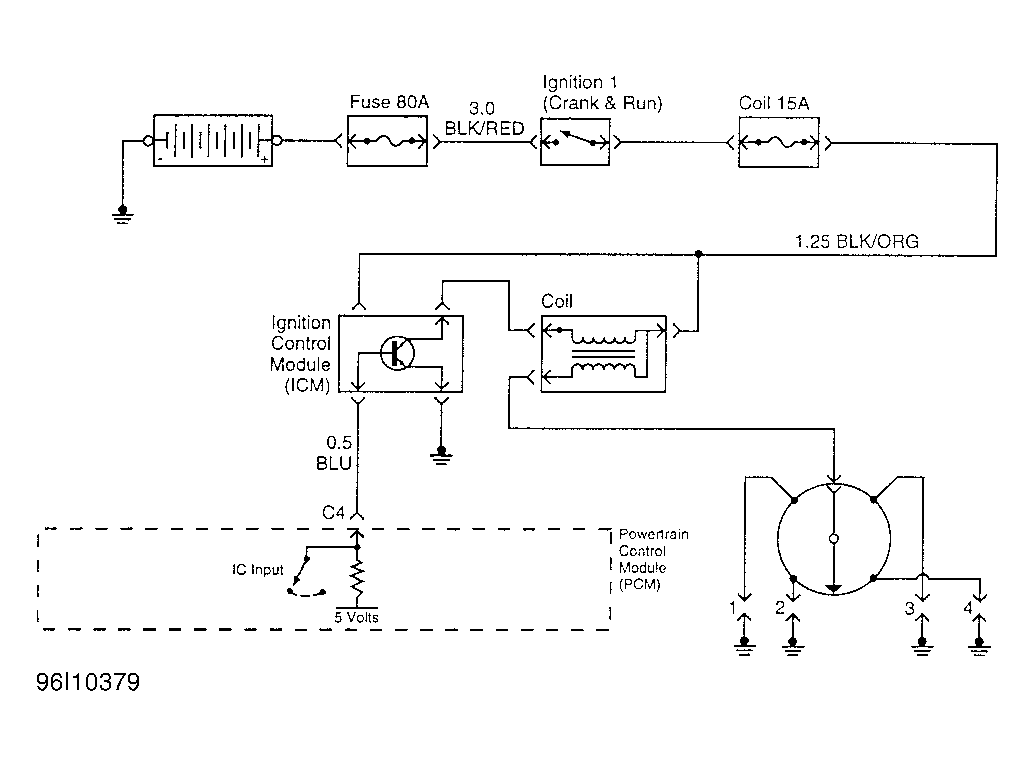

Fig 1: Ignition Control Circuit (Rodeo 2.6L)

G96I10379

Courtesy of ISUZU MOTOR CO.
