DTC P0502 - VSS Circuit Low Input: Notes

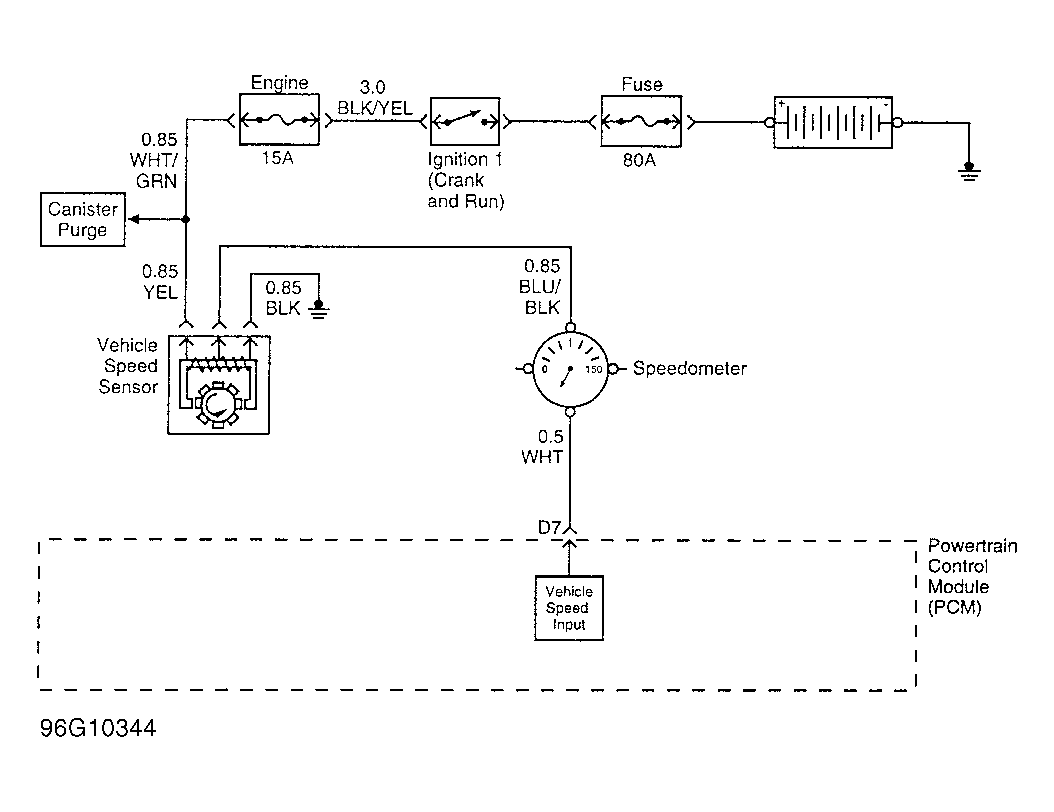

Fig 1: VSS Circuit (Rodeo 2.6L)
G96G10344Courtesy of ISUZU MOTOR CO.
