DTC P1406 - EGR Valve Pintle Position Circuit: Notes

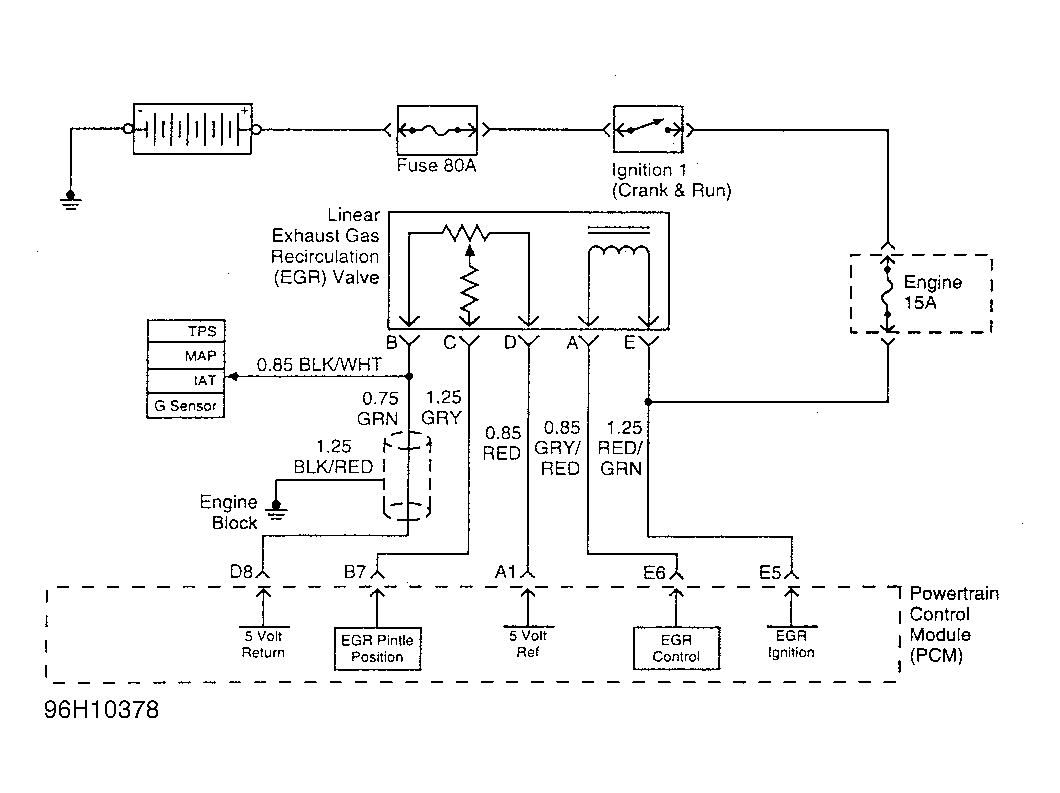

Fig 1: EGR Valve Pintle Position Circuit (Rodeo 2.6L)
G96H10378Courtesy of ISUZU MOTOR CO.
