Service Point Locations

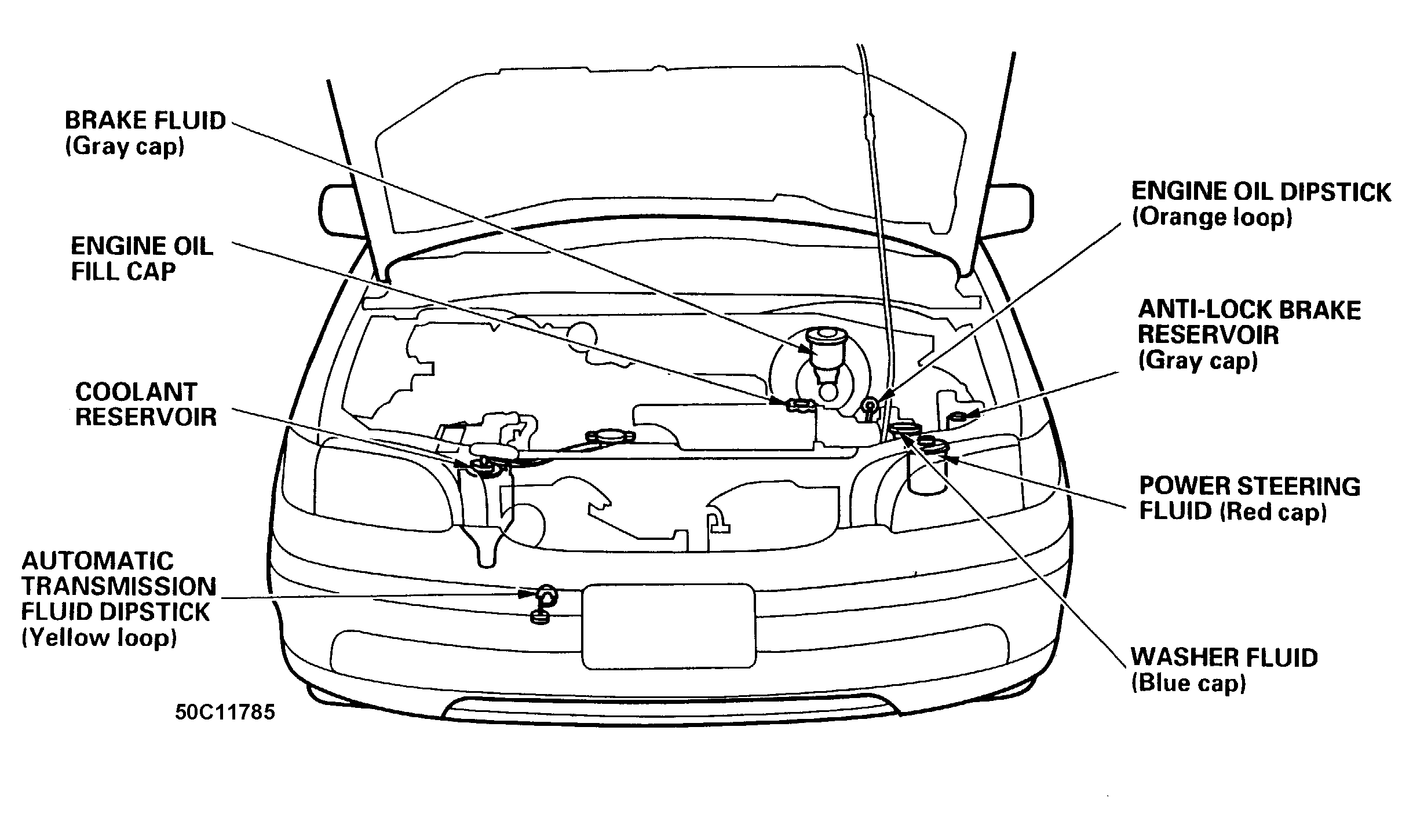

Fig 1: Service Point Locations

Courtesy of AMERICAN HONDA MOTOR CO., INC.

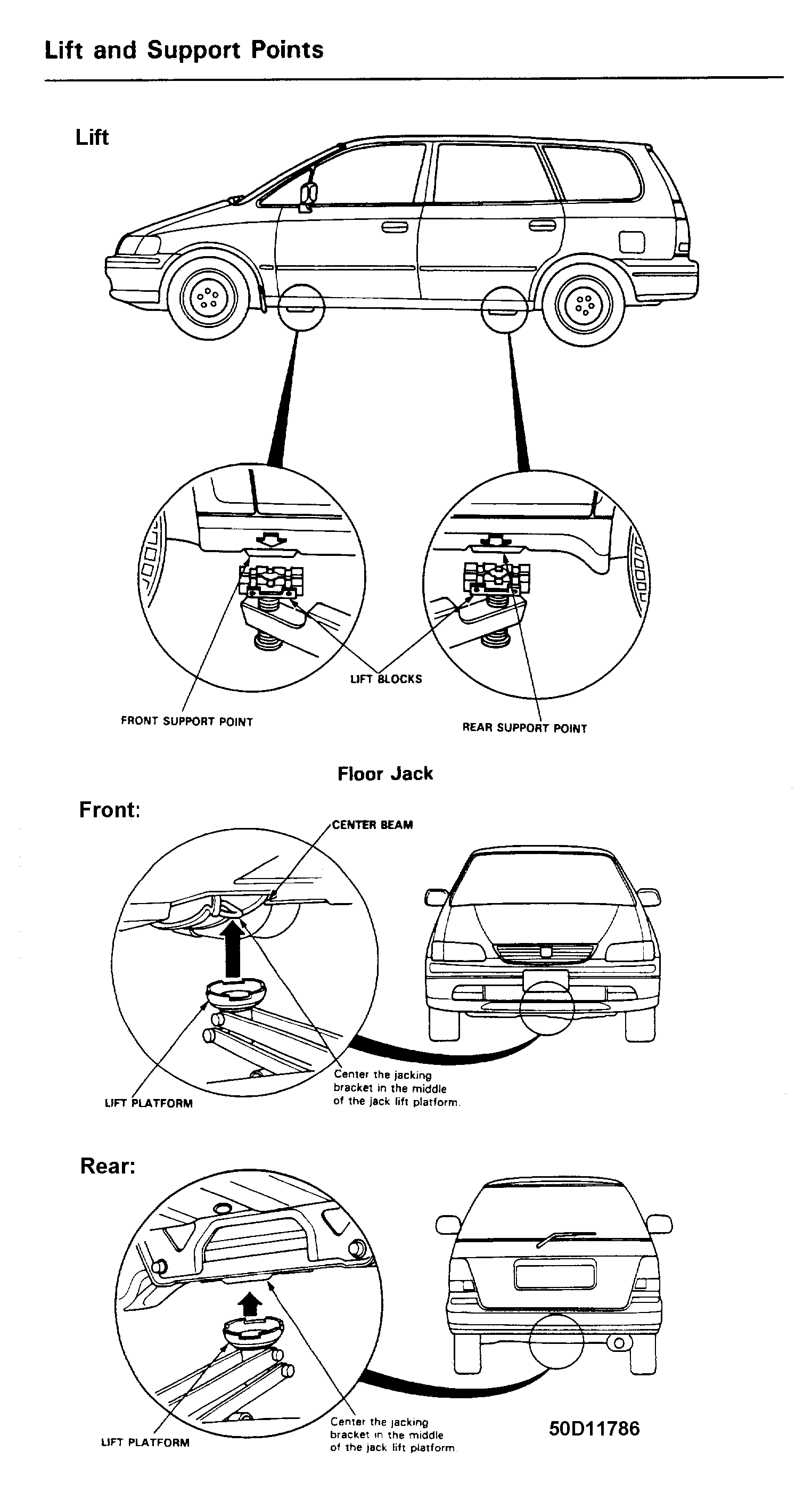

Fig 2: Lift Points

Courtesy of AMERICAN HONDA MOTOR CO., INC.

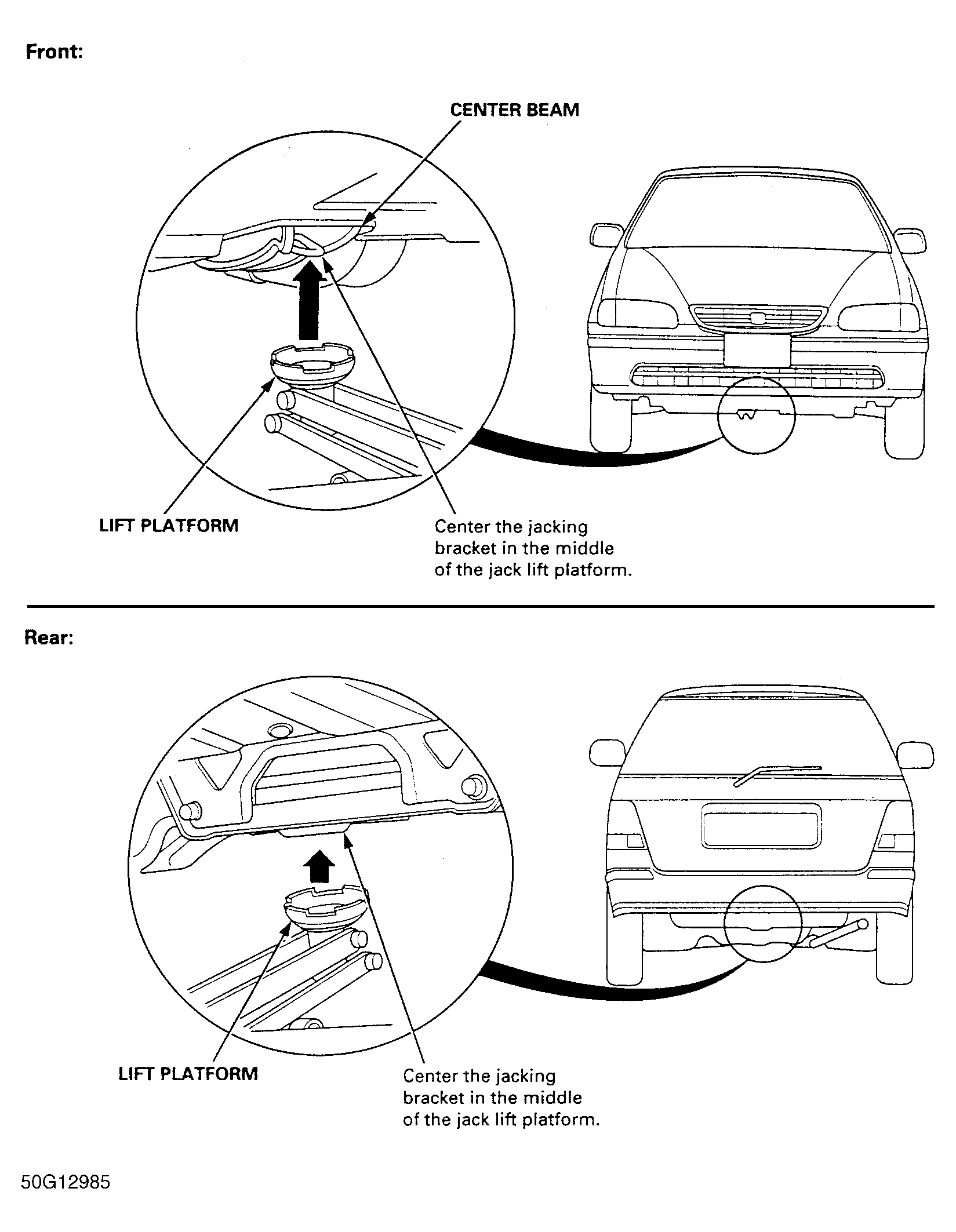

Fig 3: Floor Jack Lift Points

Courtesy of AMERICAN HONDA MOTOR CO., INC.

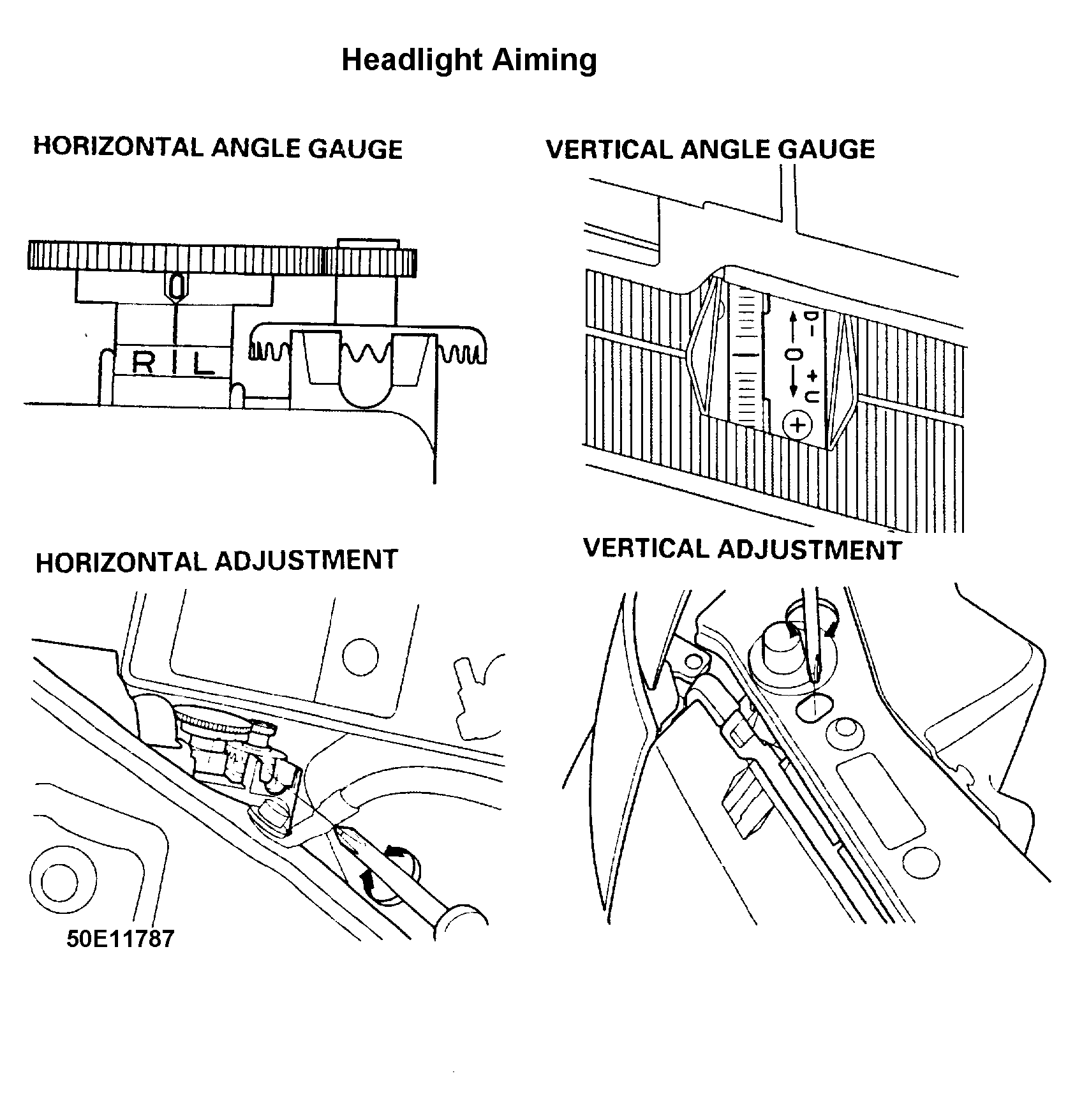

Fig 4: Headlight Aiming

Courtesy of AMERICAN HONDA MOTOR CO., INC.

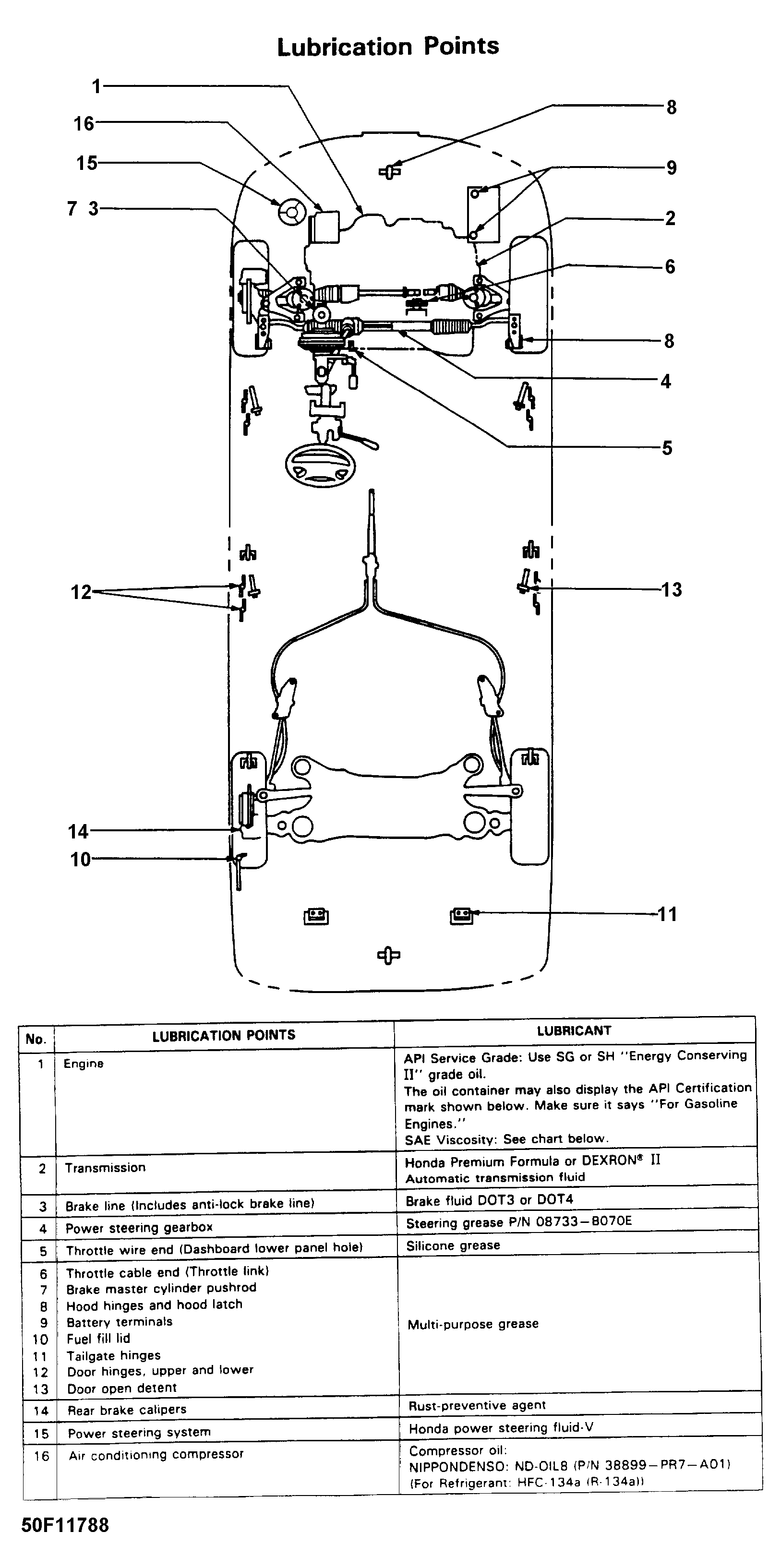

Fig 5: Lubrication Points

Courtesy of AMERICAN HONDA MOTOR CO., INC.
