DTC P0106 - Map Sensor System Performance: Notes

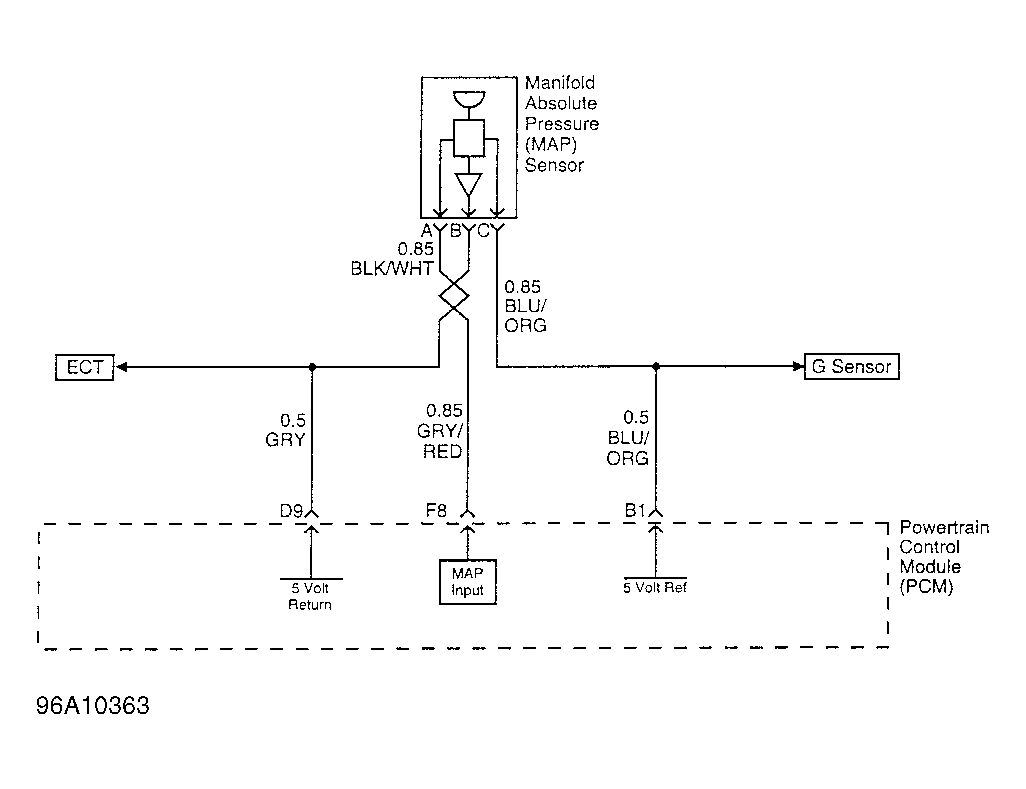

Fig 1: MAP Sensor Circuit

G96A10363

Courtesy of ISUZU MOTOR CO.
