DTC P1406 - EGR Valve Pintle Position Circuit: Notes

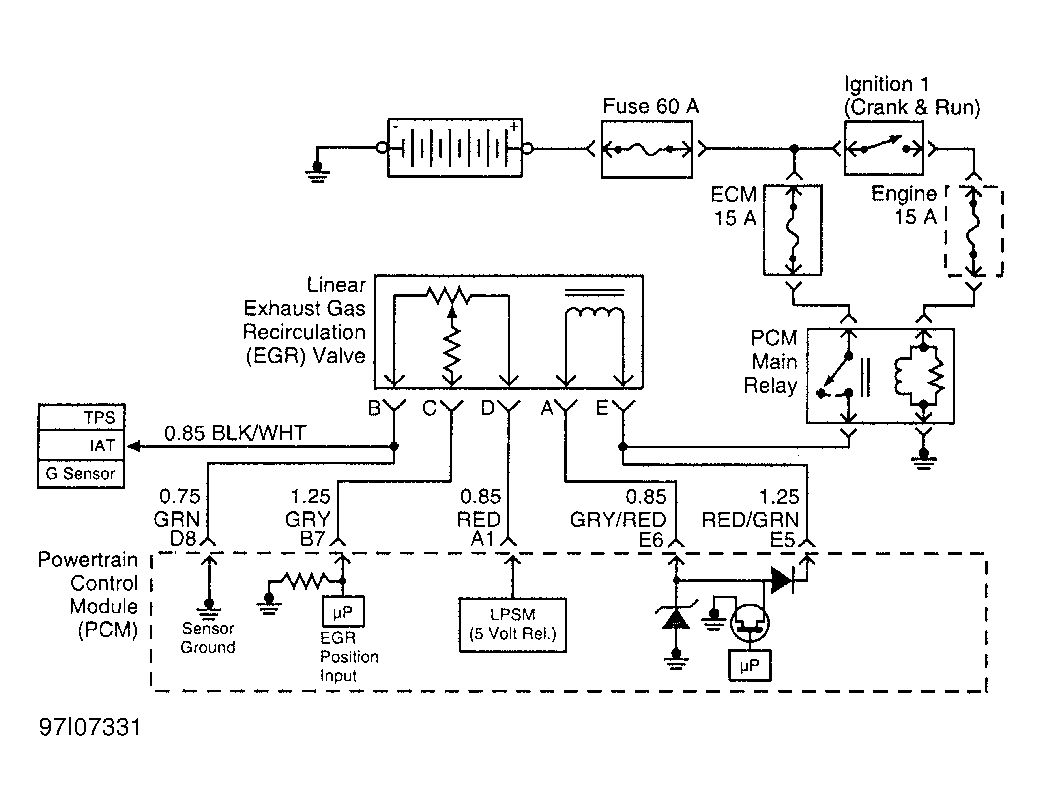

Fig 1: EGR Valve Pintle Position Circuit
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
