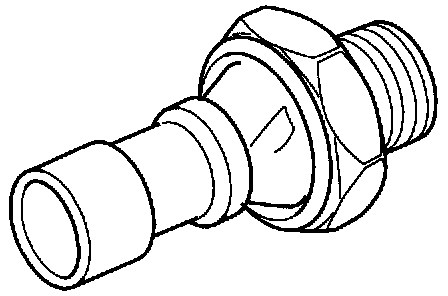

Oil Pressure Sensor: Service and Repair

Removal Procedure

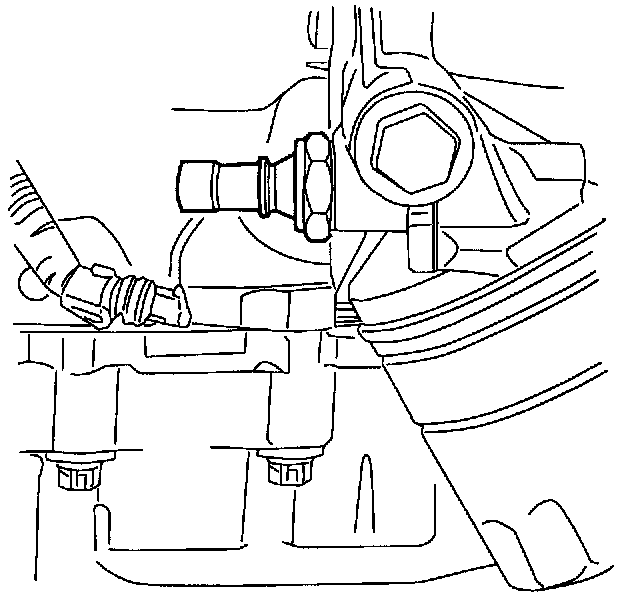

1. Disconnect battery negative cable.
2. Disconnect electrical connector at Oil Pressure Switch.

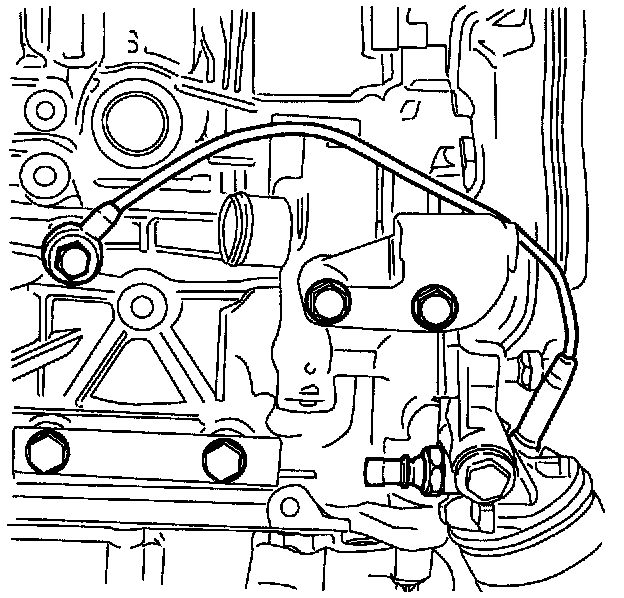

3. Unscrew Oil Pressure Switch from Oil Filter Mounting Housing.





Installation Procedure
1. Install Oil Pressure Switch into Oil Filter Mounting Housing and tighten.
2. Connect electrical connector.
3. Connect battery negative cable.
