Engine - Service Manual Revision

BULLETIN NUMBER:
SB00-01-S004

ISSUE DATE:
APRIL 2000

GROUP:
ENGINE

1998 RODEO (UE) 2.2L 4 CYL. ENGINE SECTION:
WORKSHOP MANUAL REVISION

AFFECTED VEHICLES

1998 Rodeo (UE) 2.2L 4 cylinder models

SERVICE INFORMATION

The following pages have been revised in the 1998 Rodeo (UE) Workshop Manual.

6A-36, 6A-37, 6B-7, 6B-8, 68-9, 6F-2, 6H-1, 6H-2 and 6H-3.

NOTE:
All Isuzu SUV workshop manuals starting from 1999 model year and later are Print-On-Demand items. Please replace the affected pages with the included workshop manual revisions.

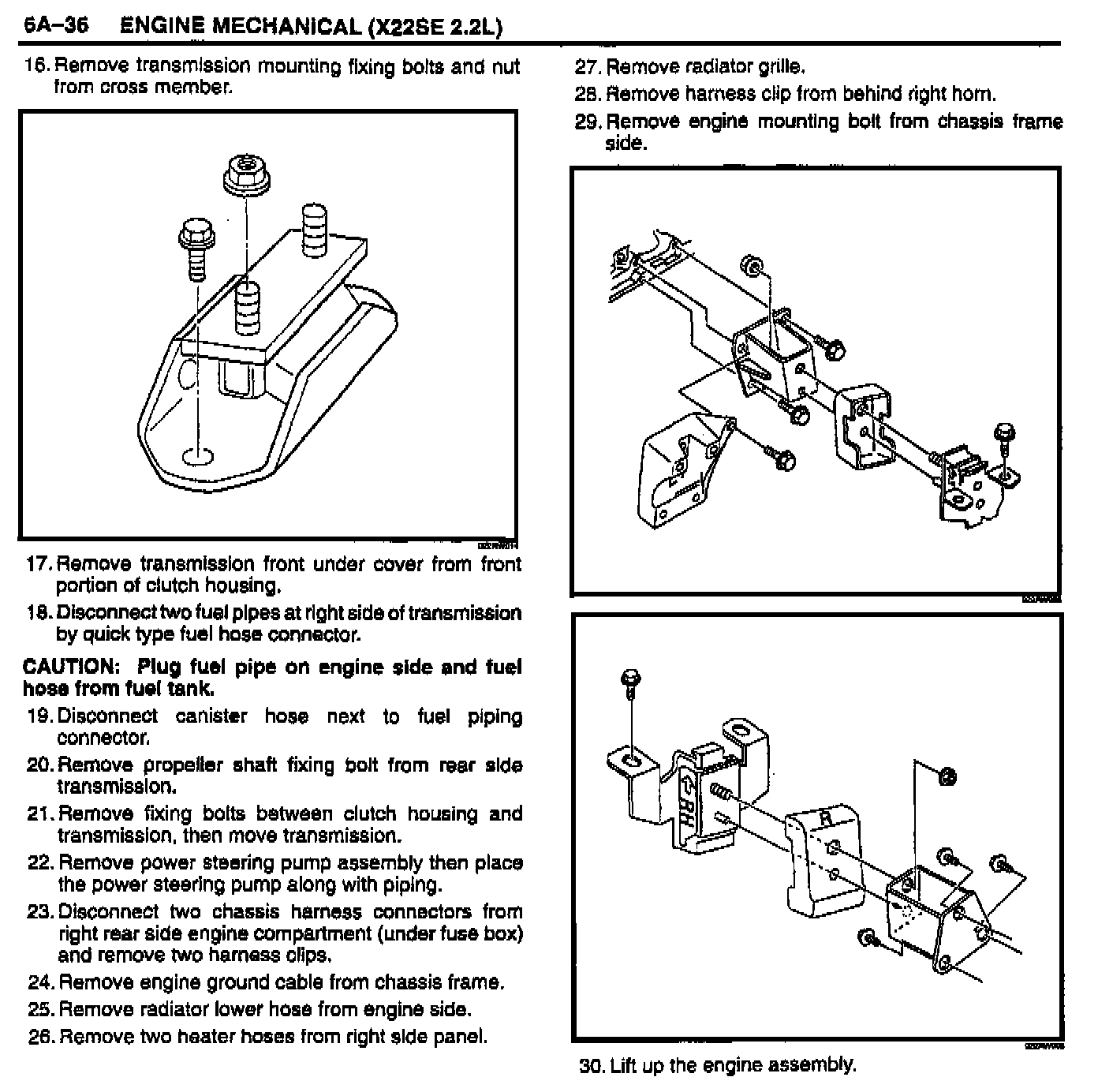

6A-36 ENGINE MECHANICAL (X22SE 2.2L)

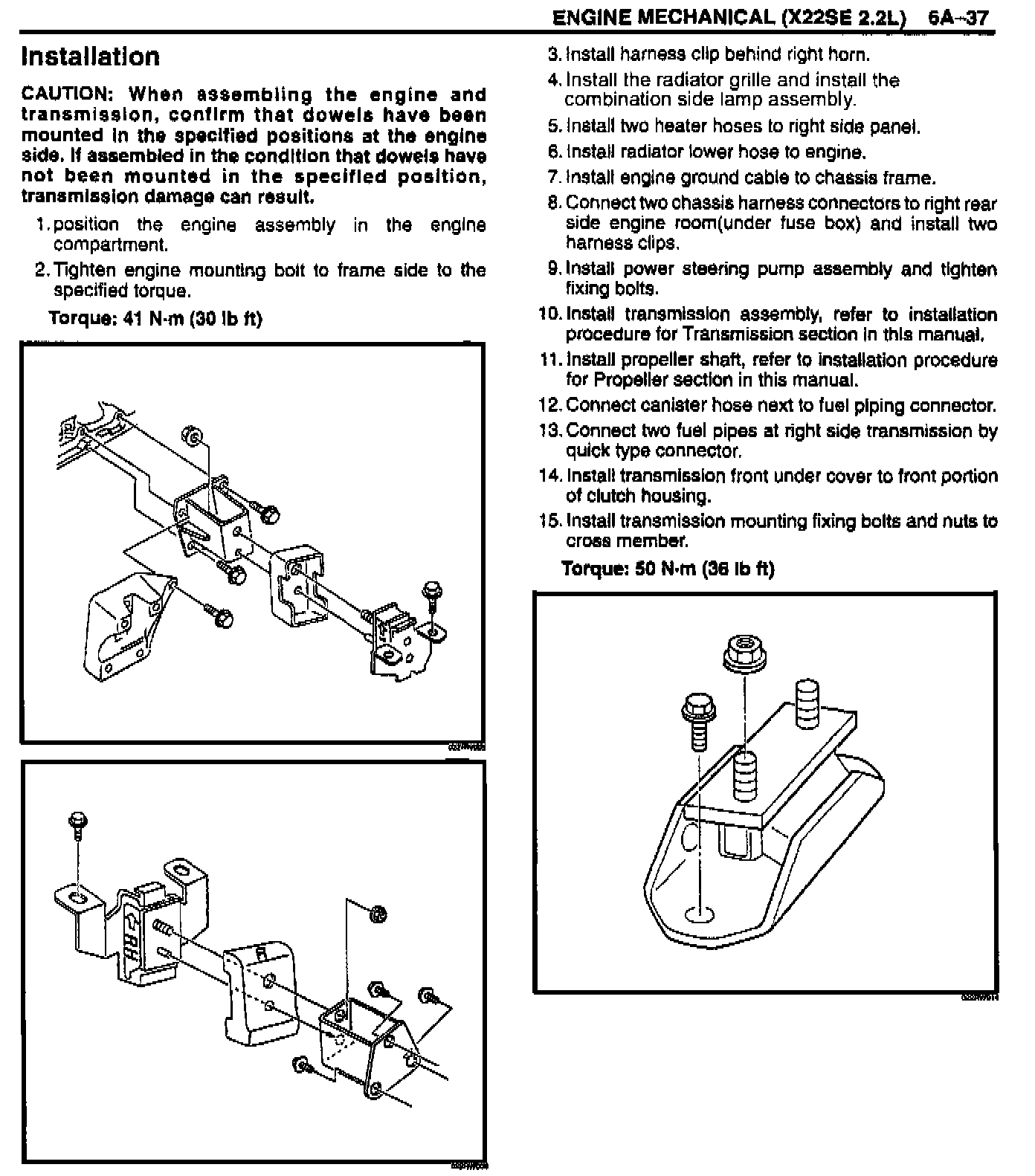

6A-37 ENGINE MECHANICAL (X22SE 2.2L)

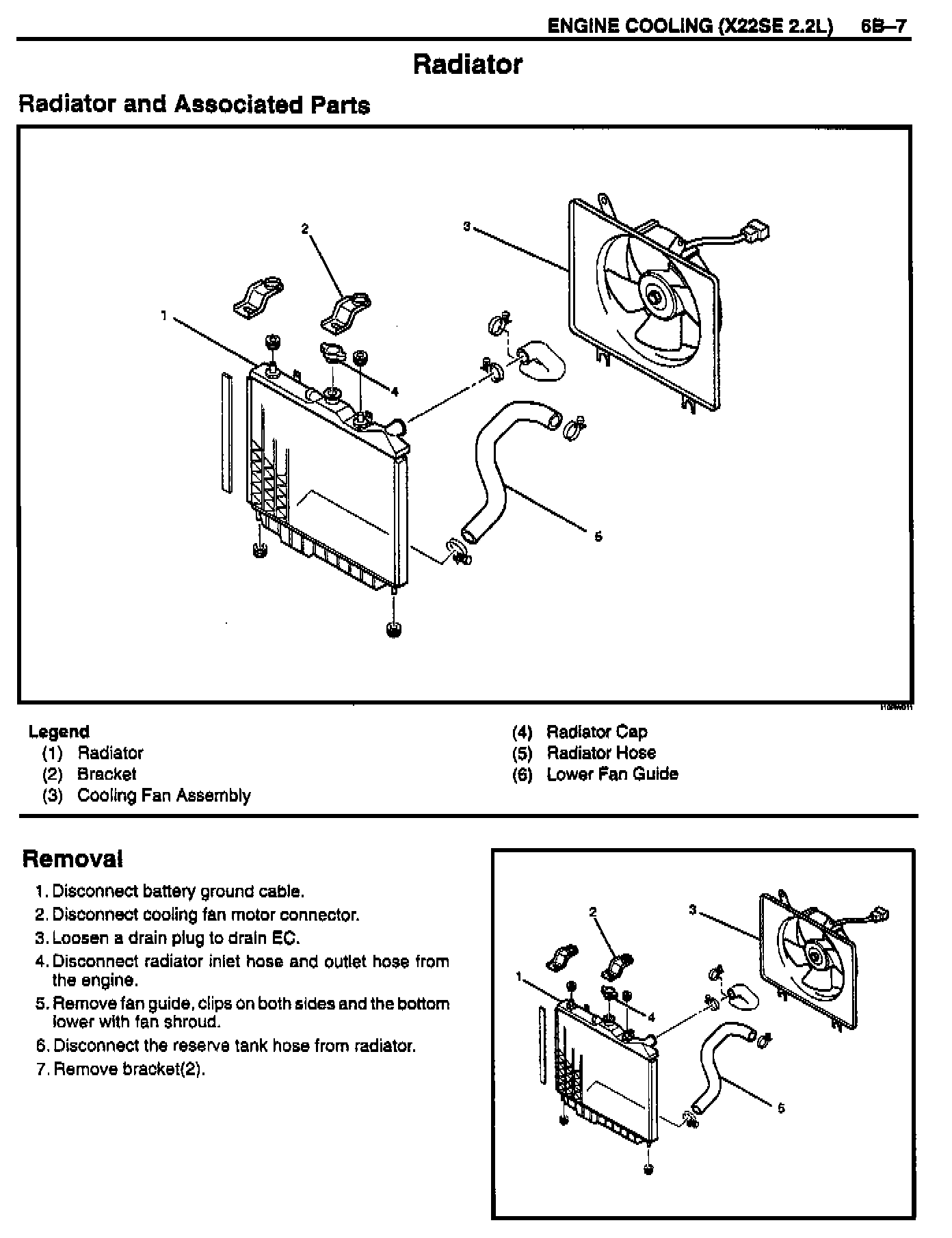

6B-7 ENGINE COOLING (X22SE 2.2L)

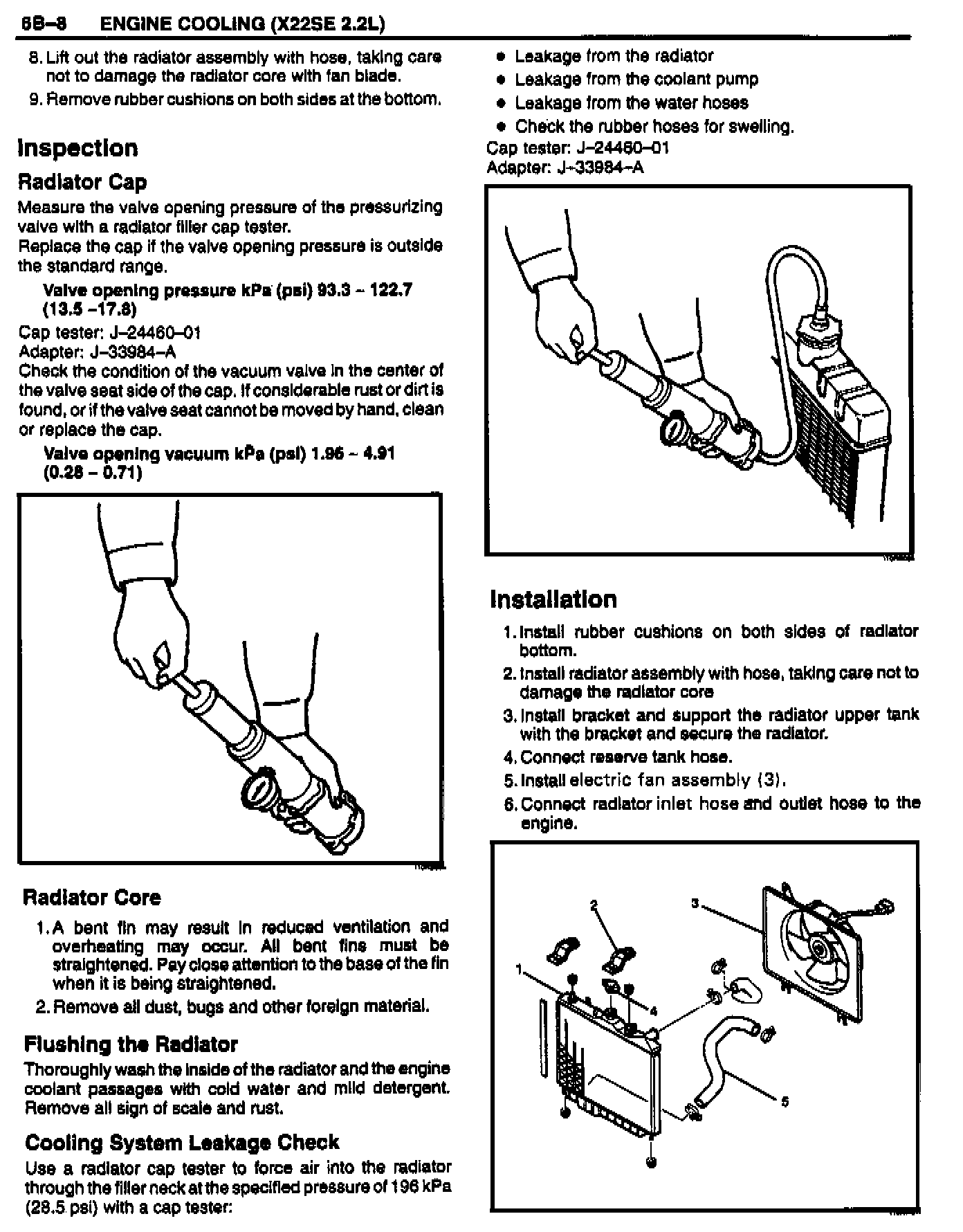

6B-8 ENGINE COOLING (X22SE 2.2L)

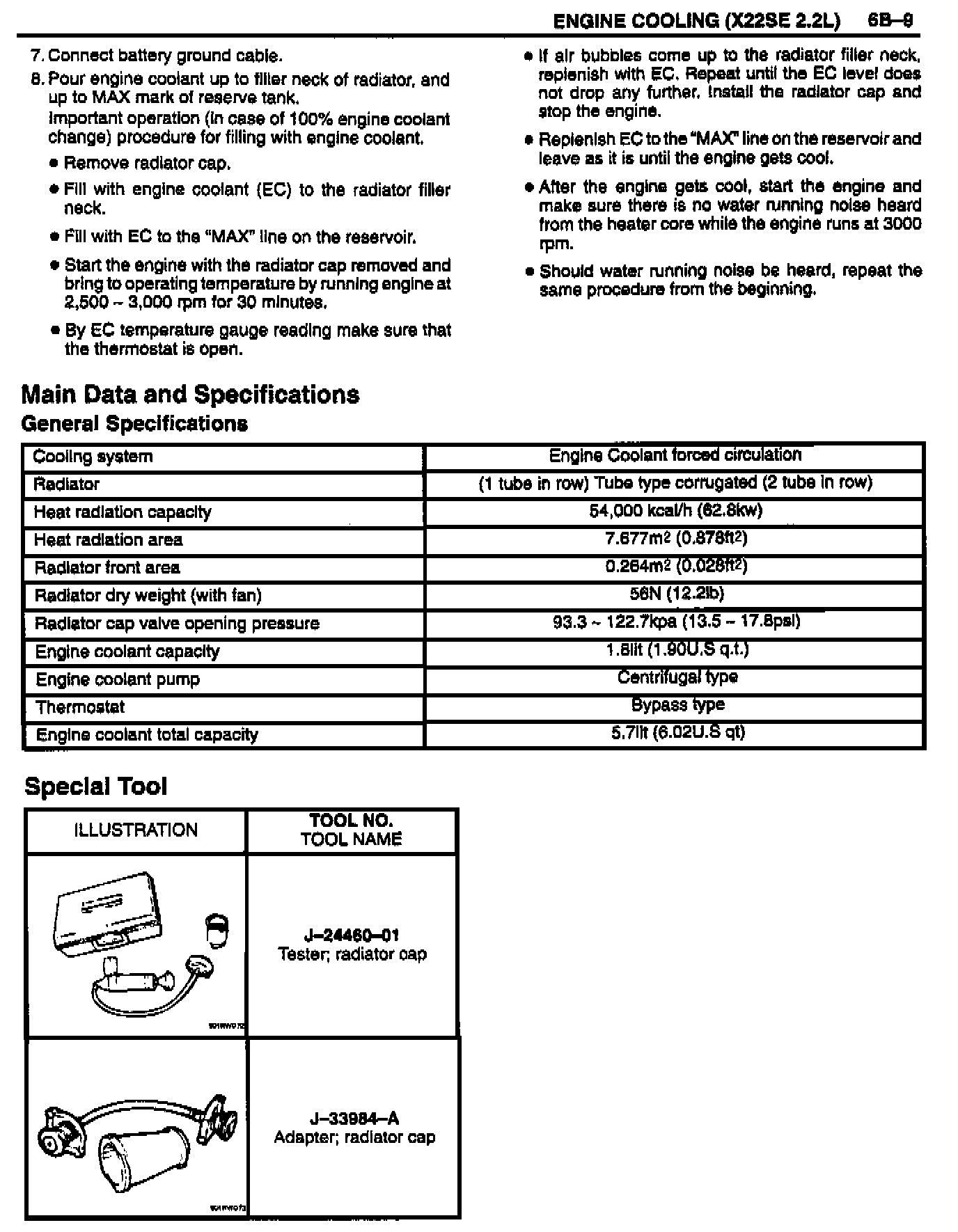

6B-9 ENGINE COOLING (X22SE 2.2L)

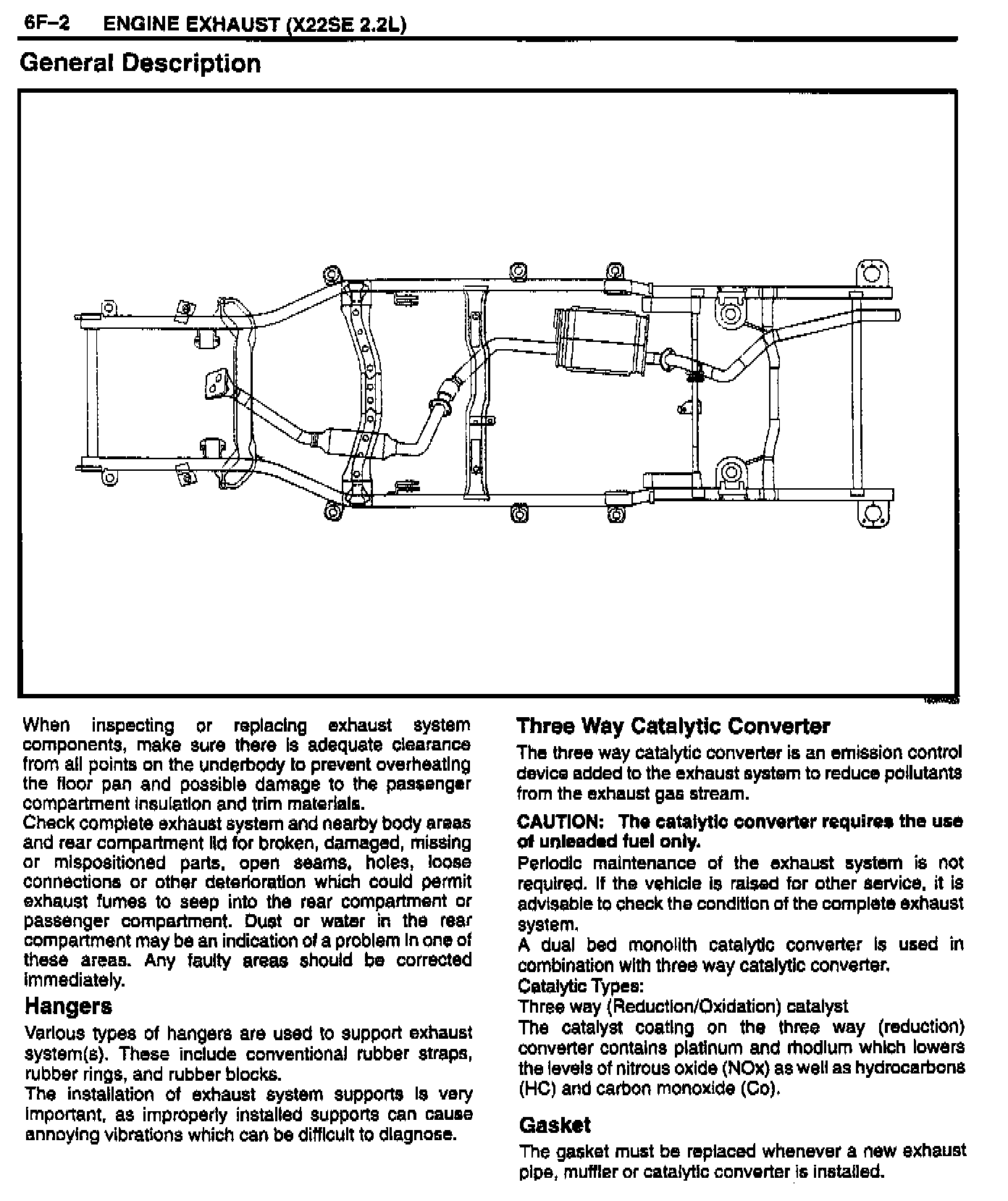

6F-2 ENGINE EXHAUST (X22SE 2.2L)

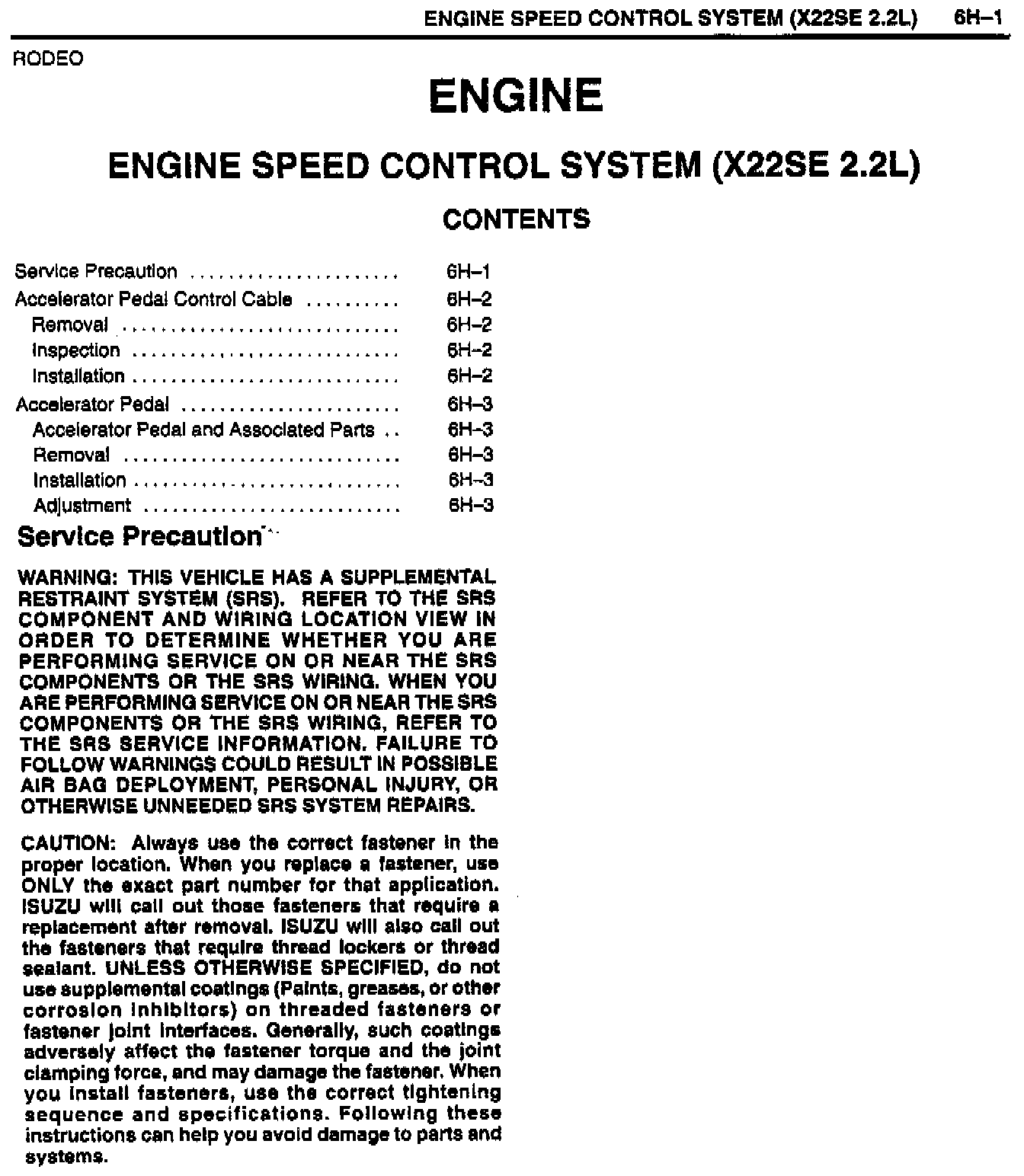

6H-1 ENGINE SPEED CONTROL SYSTEM (X22SE 2.2L)

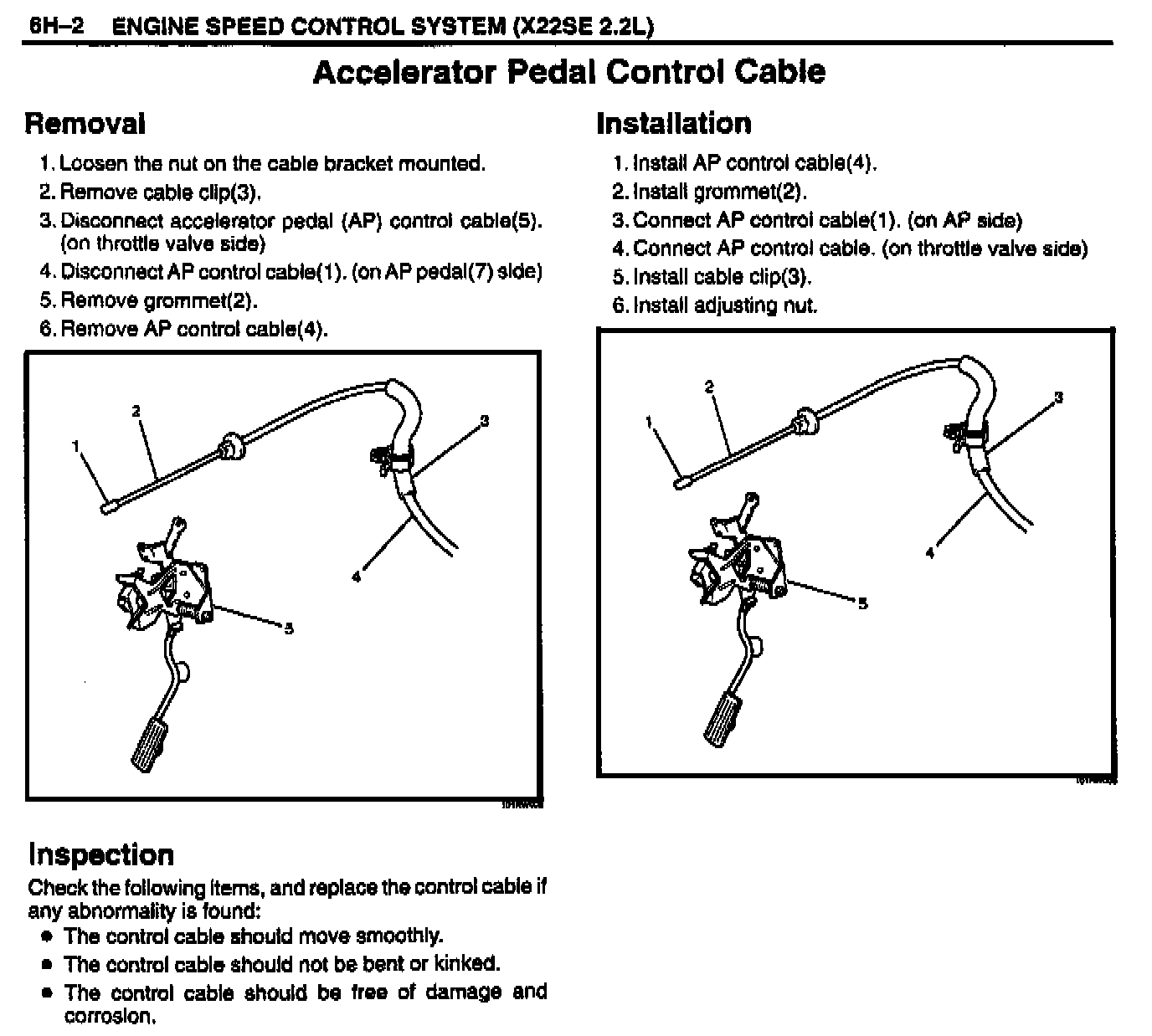

6H-2 ENGINE SPEED CONTROL SYSTEM (X22SE 2.2L)





6H-3 ENGINE SPEED CONTROL SYSTEM (X22SE 2.2L)
