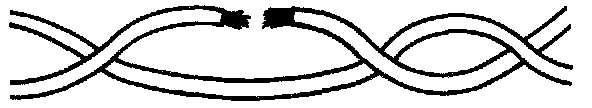

Twisted Leads

Removal Procedure
1. Locate the damaged wire.
2. Remove the insulation as required.














Installation Procedure
1. Use splice clips and rosin core solder in order to splice the two wires together.
2. Cover the splice with tape in order to insulate it from the other wires.
3. Twist the wires as they were before starting this procedure.
4. Tape the wires with electrical tape.
