Exhaust Manifold

Exhaust manifold fixing nuts are to be tightened in three steps.

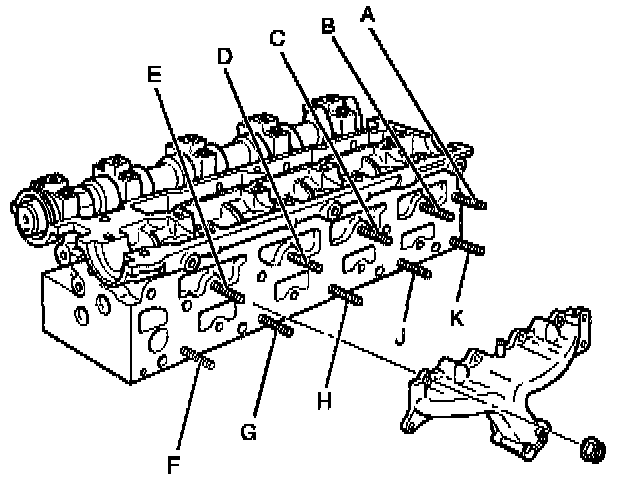

- Tightening sequence:
Step 1: J G H B D C J G B D
Step 2: A B C D E F G H J K
Step 3: A B C D E F G H J K
- Tightening torque:
Step 1: 14 Nm (10 ft. lbs.)
Step 2: 20 Nm (14 ft. lbs.)
Step 3: 20 Nm (14 ft. lbs.)
