Cruise Control Module: Service and Repair

Removal
1. Disconnect the battery ground cable.

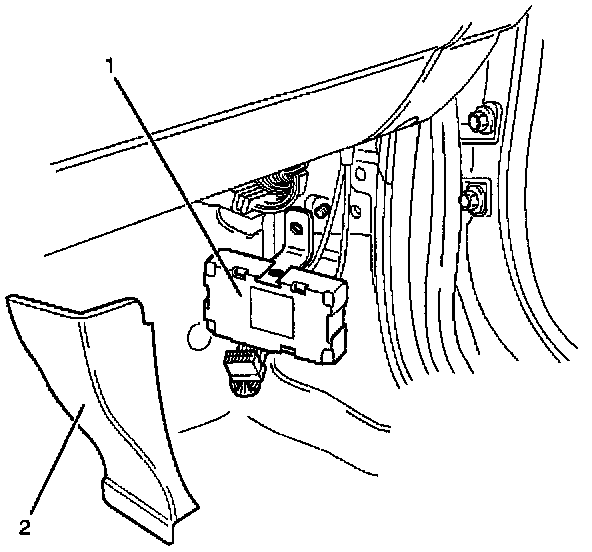

2. Remove the dash side trim panel (RH)(2).
3. Disconnect the connector.
4. Remove a fixing nut to remove the cruise control unit (1).

Installation
To install, follow the removal steps in the reverse order.
