Flex Plate

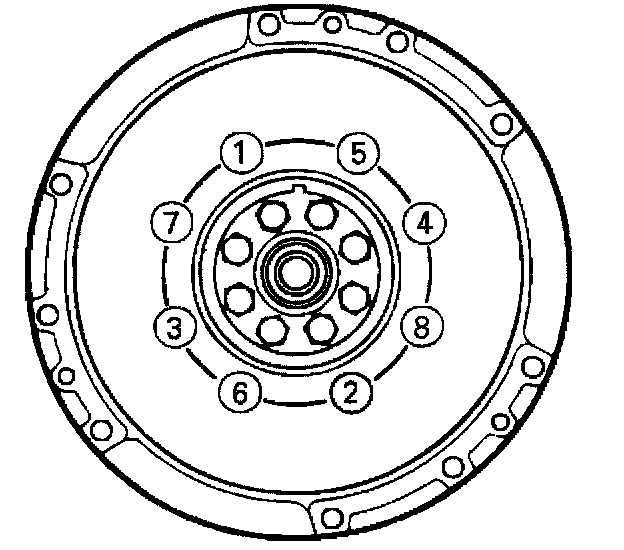

Holding the crankshaft stationary, tighten the flywheel bolts in the order shown.

Torque 54 Nm (40 ft. lbs.)

NOTE: Do not reuse the bolts and do not apply oil or thread lock to the bolts.
