Retrieving DTCS Using Abs Warning Light
- When ABS warning light remains illuminated, EHCU will store DTCs and disable ABS system. If DTCs are not displayed, wiring harness from EHCU to ABS warning light may be disconnected. Check and repair harness if necessary.

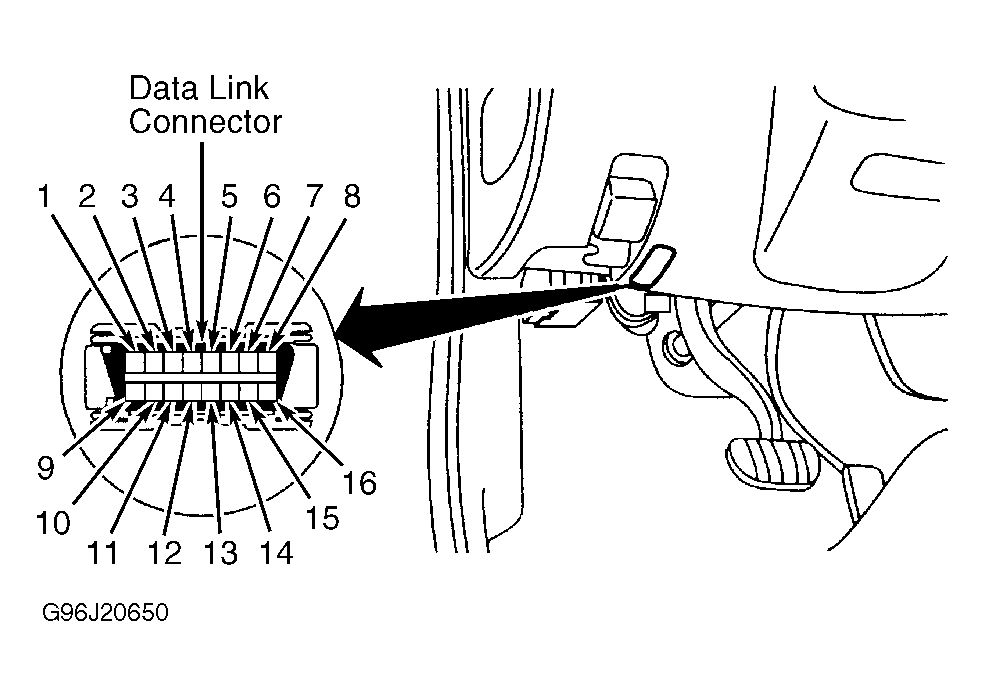

- Ensure ignition is off and brake pedal is released. Using a jumper wire, jumper Data Link Connector (DLC) terminals No. 4 and 12. See Fig 1 . Turn ignition on. DTC is displayed by flashing ABS warning light.
- A stored DTC is displayed 3 times, each being separated by a 3.2 second pause. If multiple DTCs are set, second DTC will follow after first DTC is displayed a third time. All DTCs contain 2 digits. First digit of DTC is identified by a series of 0.4 second flashes. After a 1.2 second pause, second digit of DTC will follow in another series of 0.4 second flashes. If no DTCs have been stored, ABS warning light will repeat DTC 12 (system normal).
- Once DTCs are retrieved, proceed to DTC IDENTIFICATION table. Identify DTC and perform diagnostic test specified. See DIAGNOSTIC TESTS. After repairs, DTCs must be cleared. See CLEARING DIAGNOSTIC TROUBLE CODES.
DTC IDENTIFICATION
| DTC (Description) | Possible Malfunction | (1) Go To | ||
|---|---|---|---|---|
| DTC 12 (Start Code) | Normal Display | N/A | ||
| DTC 14 (EHCU Function) | Abnormality In Input/Output, Operational & Control Circuits | DTC 14 | ||
| DTC 15 (Power Voltage Drop) | DTC 15 | 16 (CLASS-2 Circuit) | ||
| CLASS-2 Communication Line Abnormality | DTC 16 | 21 ("G" Sensor) | ||
| Disconnected Wire | DTC 21 | 23 (Transmission Input) | ||
| Input Abnormality | DTC 23 | 24 (Transfer Monitor) | ||
| DTC 24 | 32 (Hydraulic Motor & Motor Relay) | Shorted Or Disconnected Coil | ||
| DTC 32 | 35 (Valve Relay) | Shorted Or Disconnected Coil/Wiring | ||
| DTC 35 | 41 (Left Front Holding Valve) | Shorted Or Disconnected Coil/Wiring | ||
| DTC 41, 42, 43, 44, 45, 46 | 42 (Left Front Decompression Valve) | Shorted Or Disconnected Coil/Wiring | ||
| DTC 41, 42, 43, 44, 45, 46 | 43 (Right Front Holding Valve) | Shorted Or Disconnected Coil/Wiring | ||
| DTC 41, 42, 43, 44, 45, 46 |
44 (Right Front Decompression Valve) | Shorted Or Disconnected Coil/Wiring | ||
| DTC 41, 42, 43, 44, 45, 46 | 45 (Rear Holding Valve) | Shorted Or Disconnected Coil/Wiring | ||
| DTC 41, 42, 43, 44, 45, 46 | 46 (Rear Decompression Valve) | Shorted Or Disconnected Coil/Wiring | ||
| DTC 51 | 51 (Left Front Speed Sensor) | Disconnected Coil/Wiring | ||
| DTC 52 | 52 (Right Front Speed Sensor) | Disconnected Coil/Wiring | ||
| DTC 53 | 53 (Left Rear Speed Sensor) | Disconnected Coil/Wiring | ||
| DTC 54 | 54 (Right Rear Speed Sensor) | Disconnected Coil/Wiring | ||
| DTC 61 | 61 (Left Front Speed Sensor) | Shorted Coil/Wiring | ||
| DTC 62 | 62 (Right Front Speed Sensor) | Shorted Coil/Wiring | ||
| DTC 63 | 63 (Left Rear Speed Sensor) | Shorted Coil/Wiring | ||
| DTC 64 | 64 (Right Rear Speed Sensor) | Shorted Coil/Wiring | ||
| DTC 65 | 65 (Sensor Signal Input) | Incorrect No. Of Teeth | ||
|
||||
