Main Switch Test/Replacement

WARNING: This page is about a different car, the 2002 Honda Accord, 2001 Honda Accord, 2000 Honda Accord, 1999 Honda Accord, and 1998 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

Carefully pry the switch (A) out of the instrument panel.

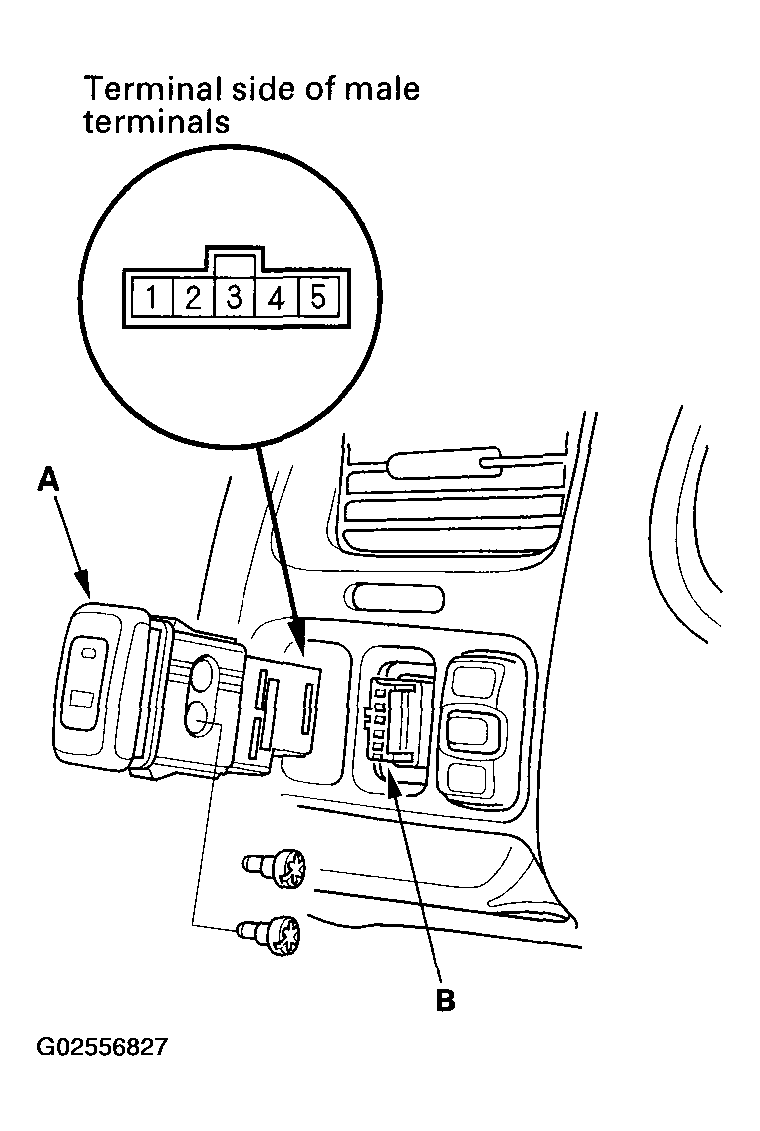

Fig 1: Identifying Main Switch 5P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 5P connector (B) from the switch.
Check for continuity between the terminals in each switch position according to the table.

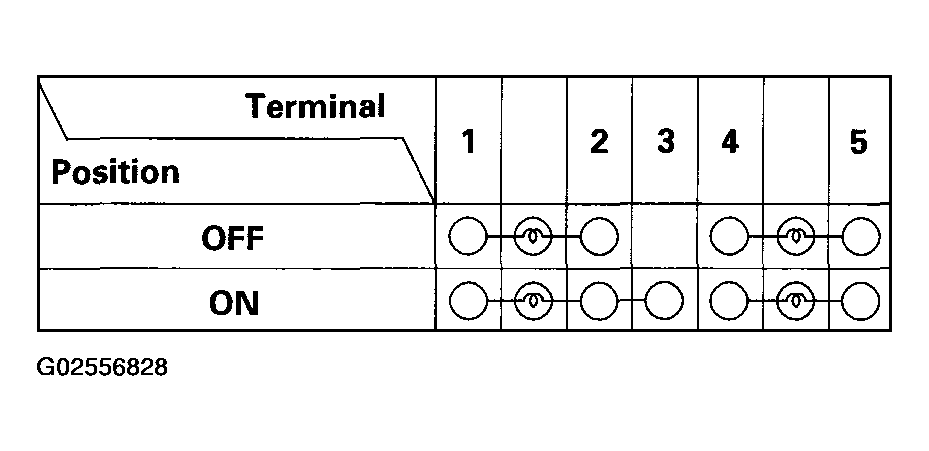

Fig 2: Main Switch Test Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
