Set/Resume/Cancel Switch Test/Replacement

WARNING: This page is about a different car, the 2002 Honda Accord, 2001 Honda Accord, 2000 Honda Accord, 1999 Honda Accord, and 1998 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

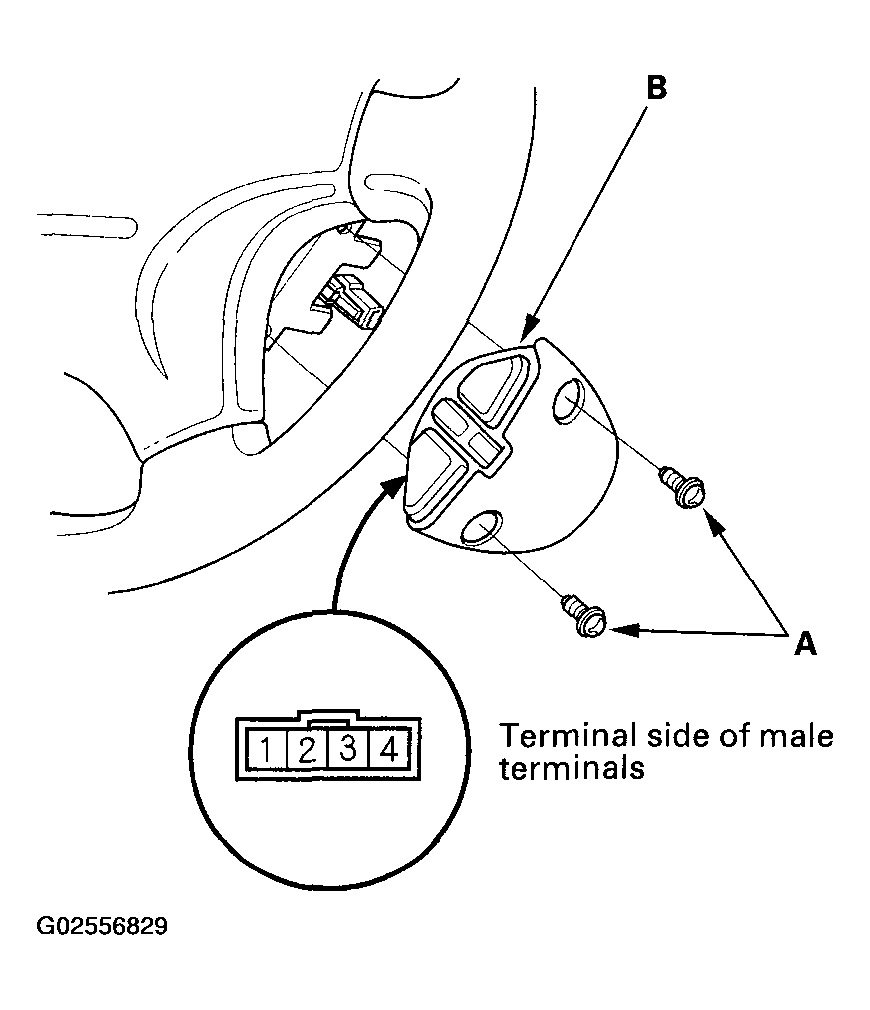

Remove the two screws (A), then remove the switch (B).

Fig 1: Identifying Set/Resume/Cancel Switch 4P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in switch position according to the table.
- If there is continuity and it matches the table, but switch failure is occurred on the cruise control unit input test, check and repair the wire harness on the switch circuit.
- If there is no continuity in one or both positions, replace the switch.

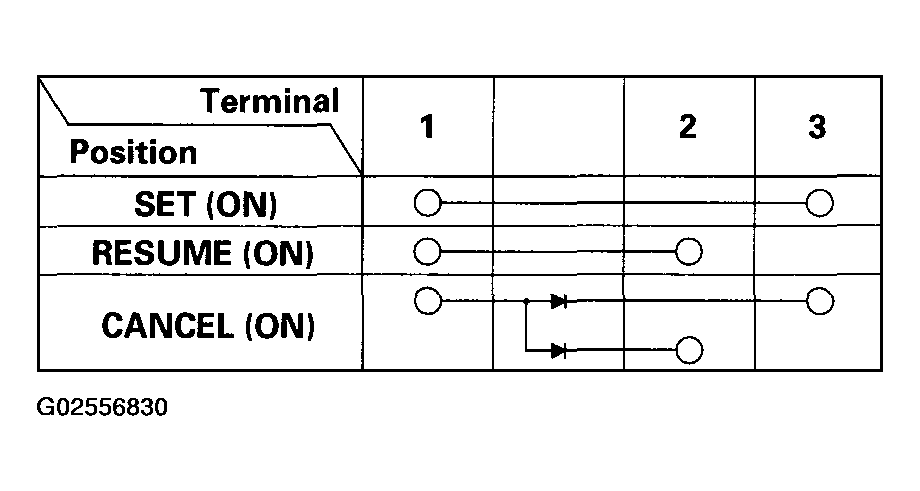

  Fig 2: Set/Resume/Cancel Switch Test Table
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
