Axle Shaft Assembly

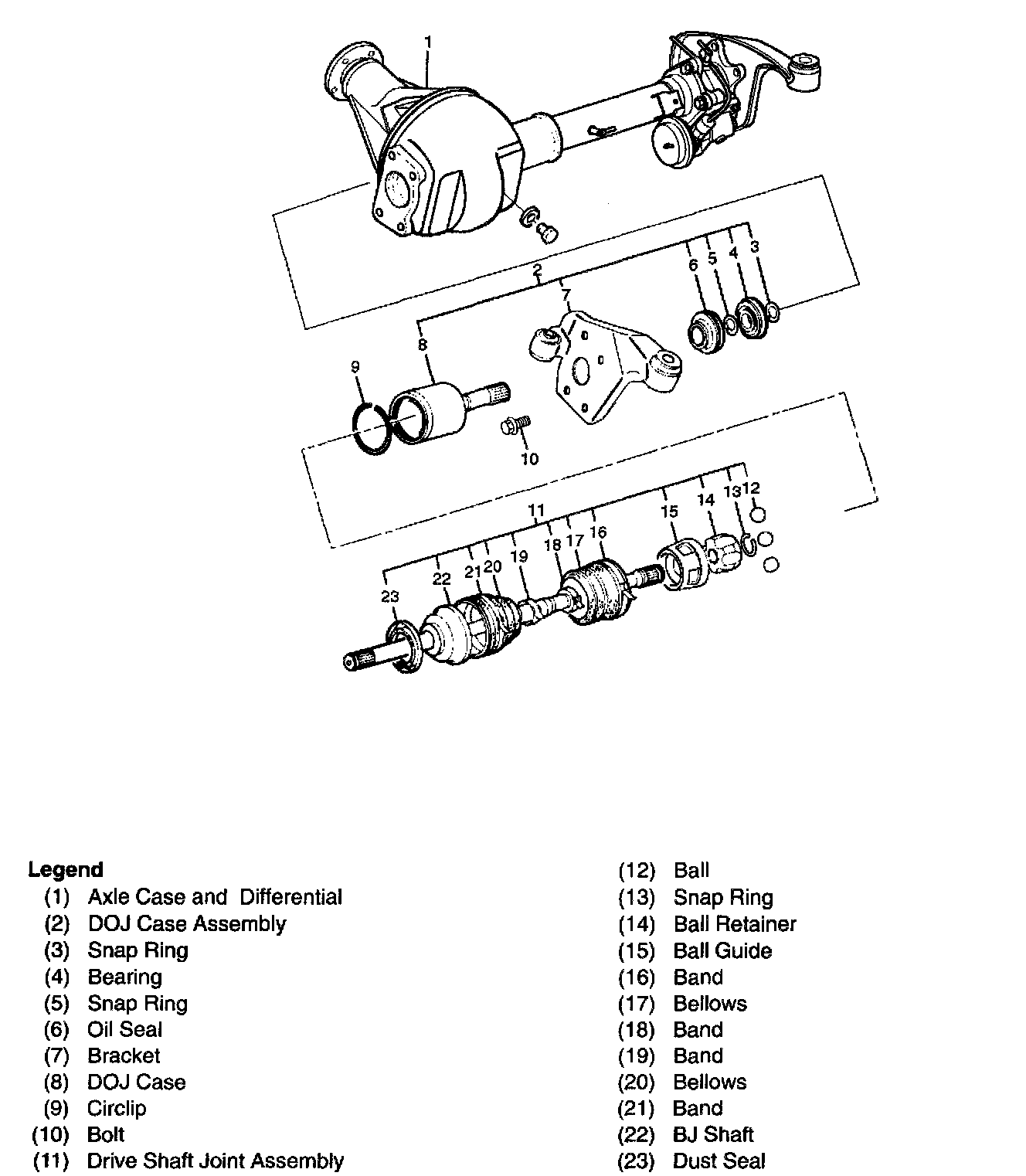

Left Front Axle Shaft, Drive Shaft And Shift On The Fly System:





LEFT VIEW

Right Front Drive Shaft:





RIGHT VIEW
