Connector Views

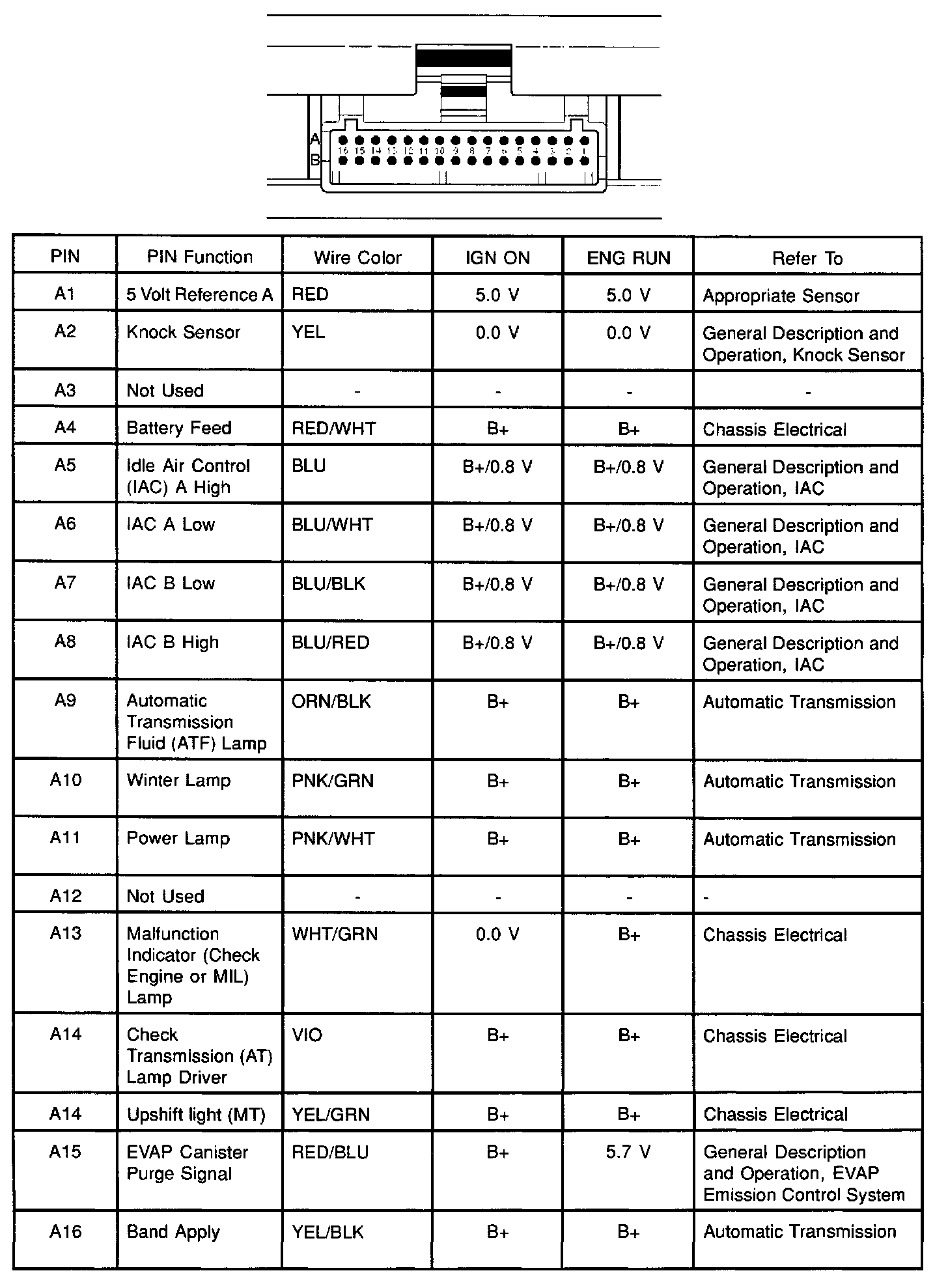

PCM Pinout Table, 32-Way Red Connector - Row A:

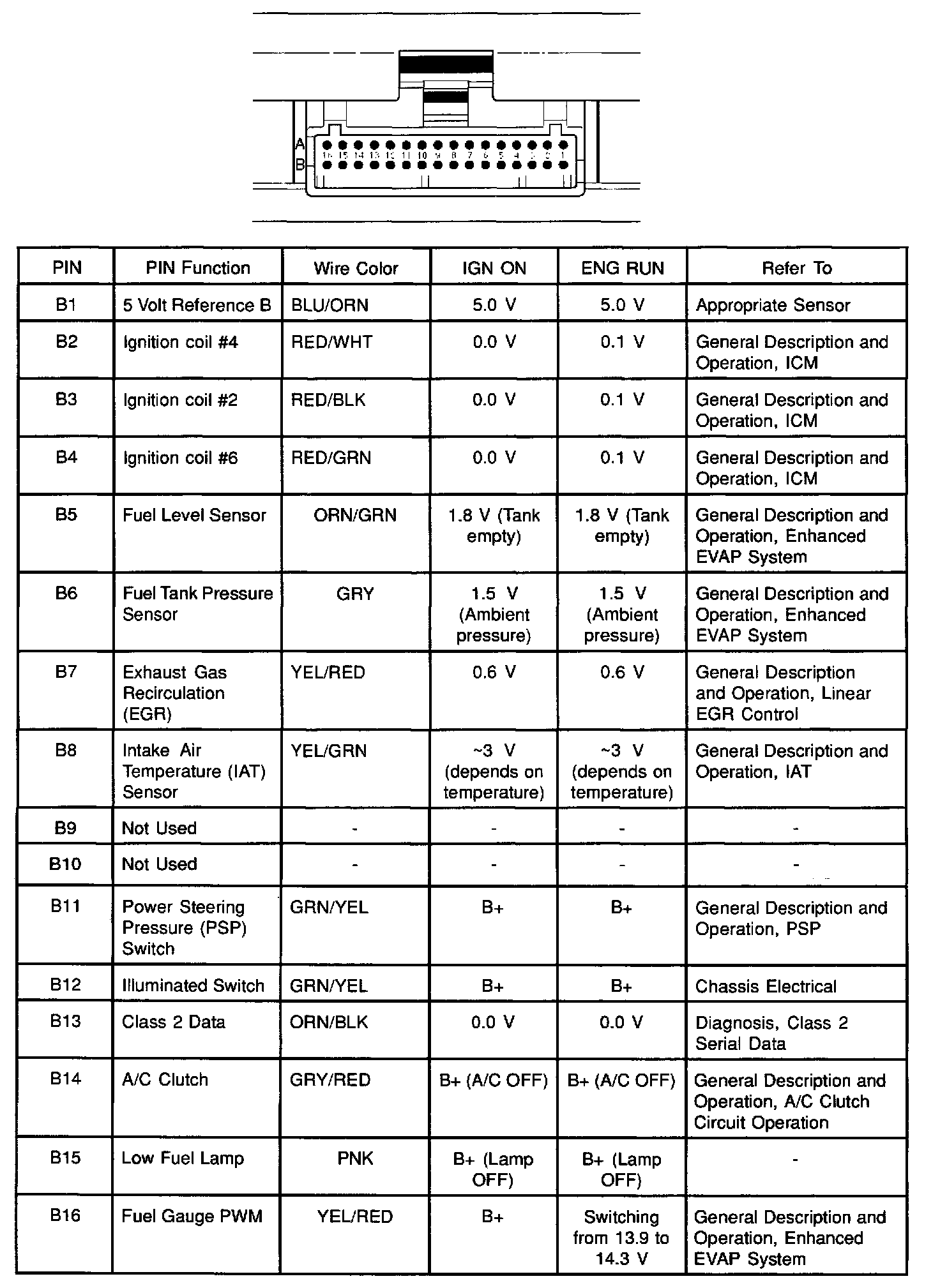

PCM Pinout Table, 32-Way Red Connector - Row B:




PCM Pinout Table, 32-Way White Connector - Row C:

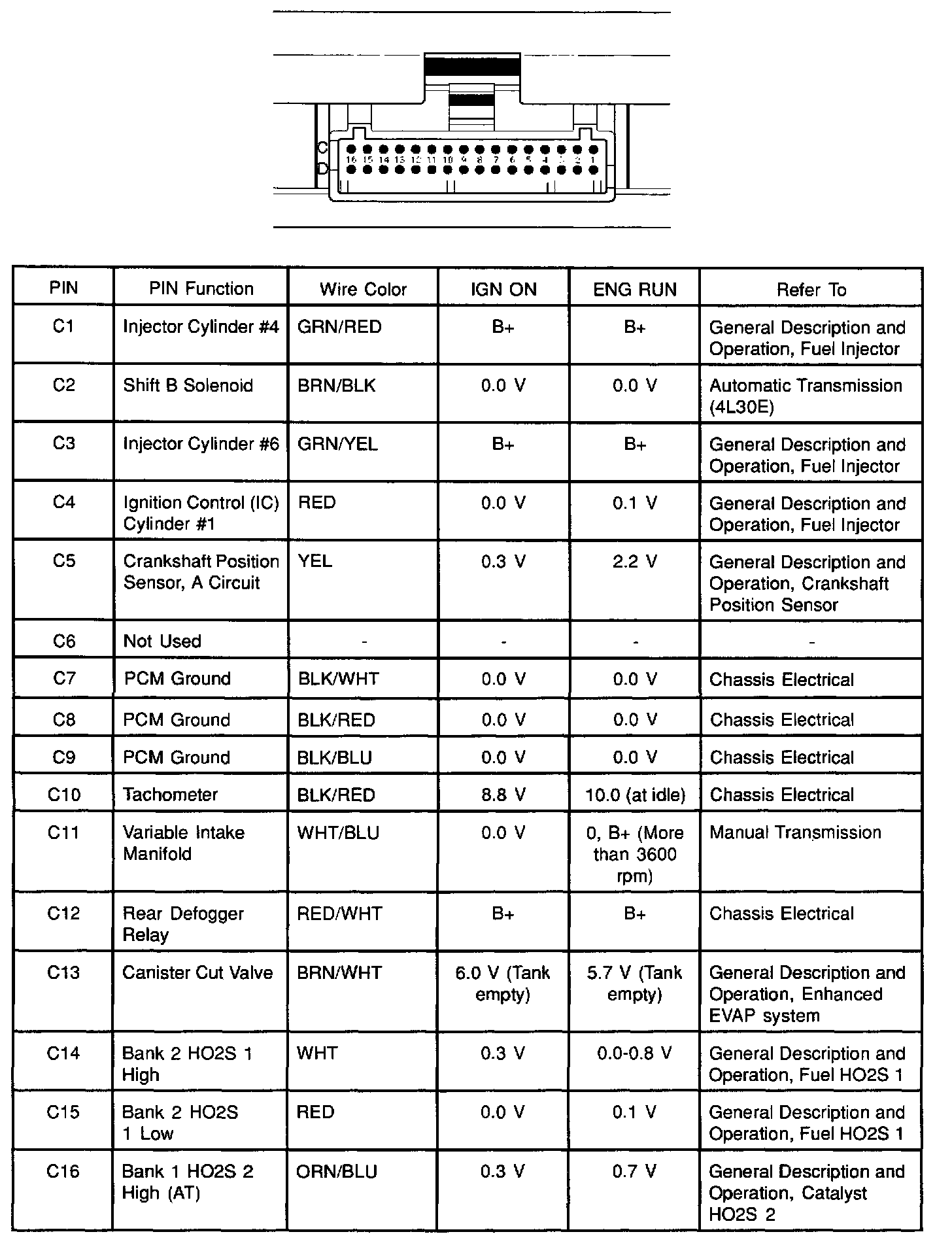

PCM Pinout Table, 32-Way White Connector - Row D:




PCM Pinout Table, 32-Way Blue Connector - Row E:

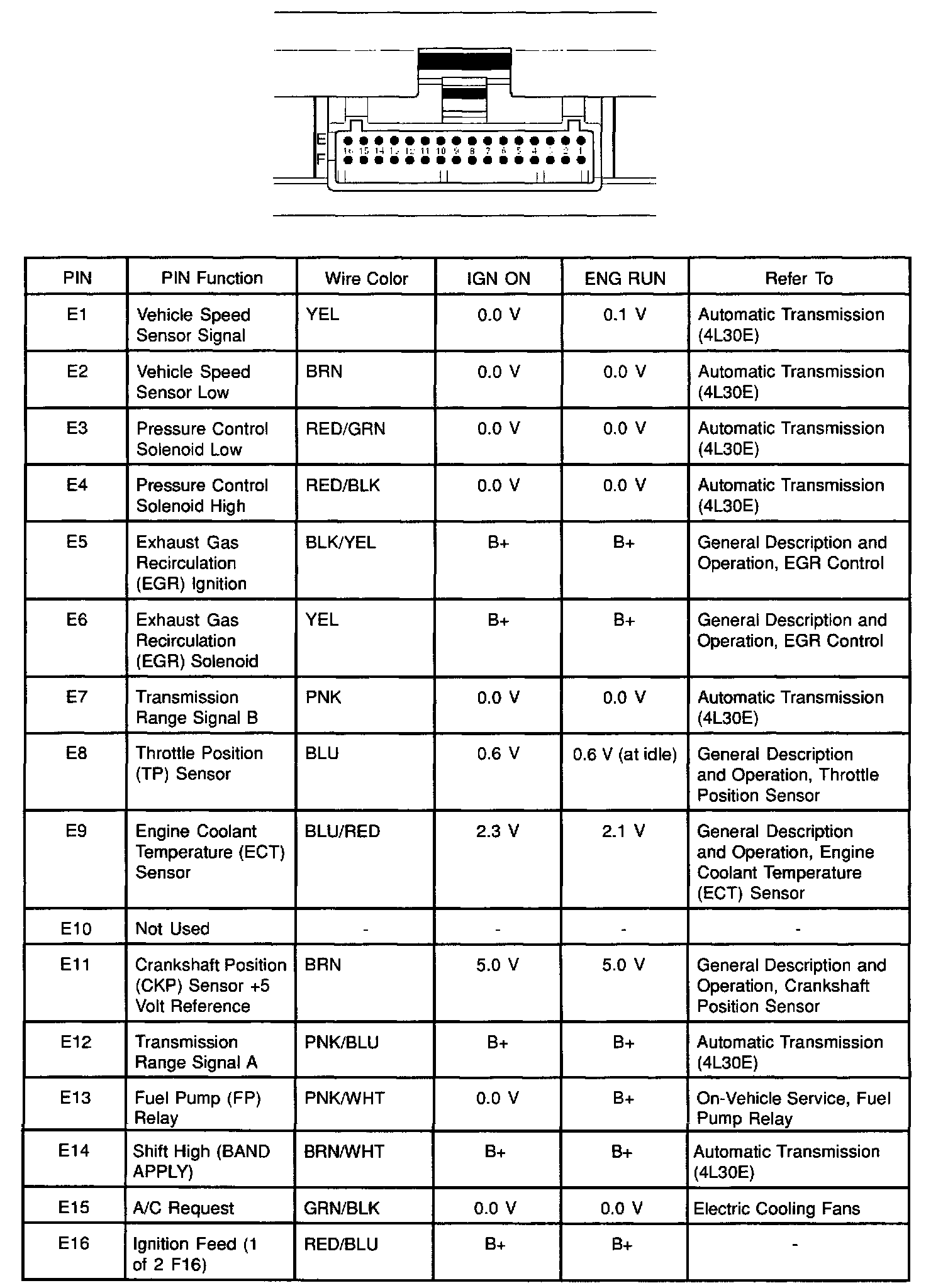

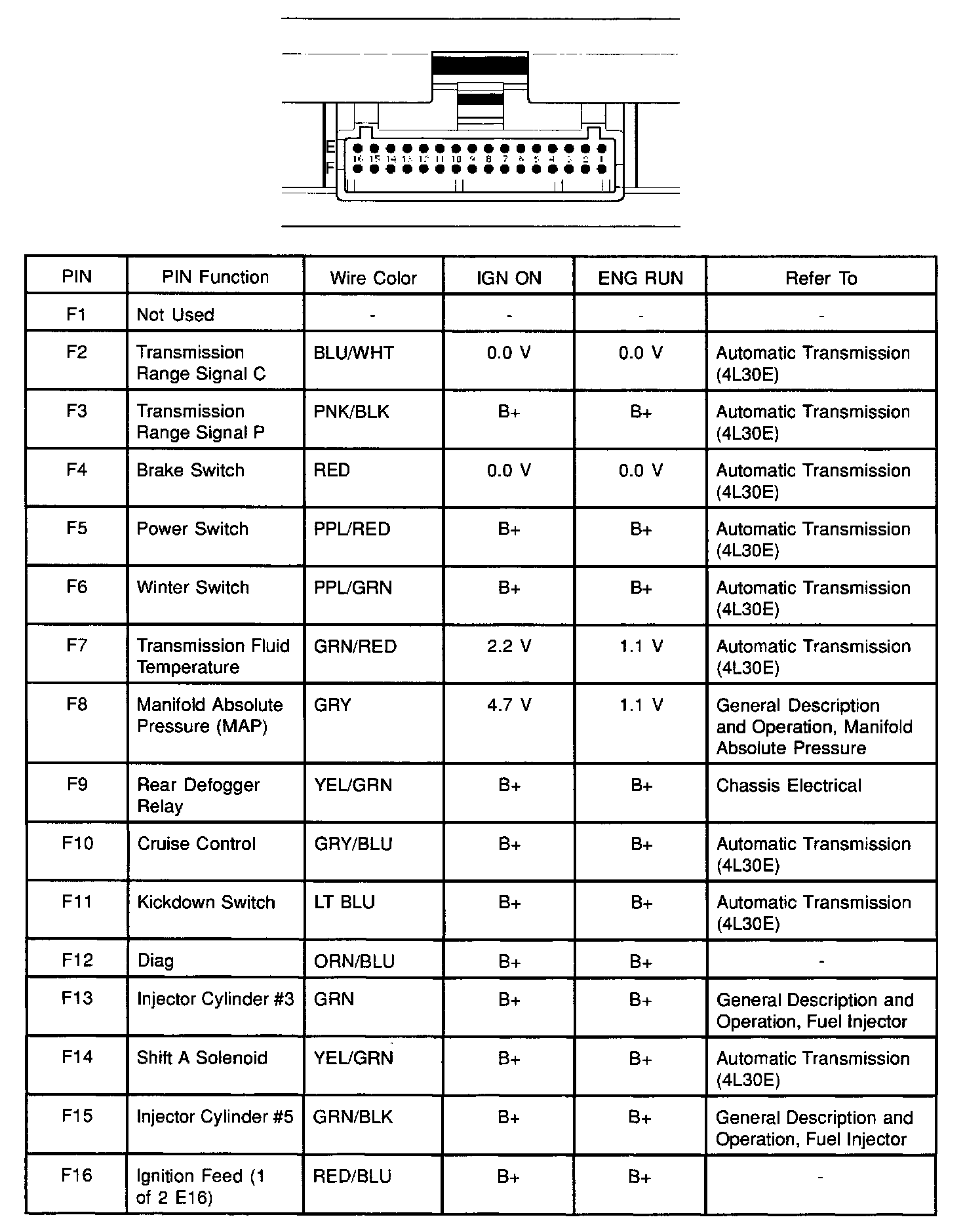

PCM Pinout Table, 32-Way Blue Connector - Row F:
