Connecting Rod Bolt/Nut

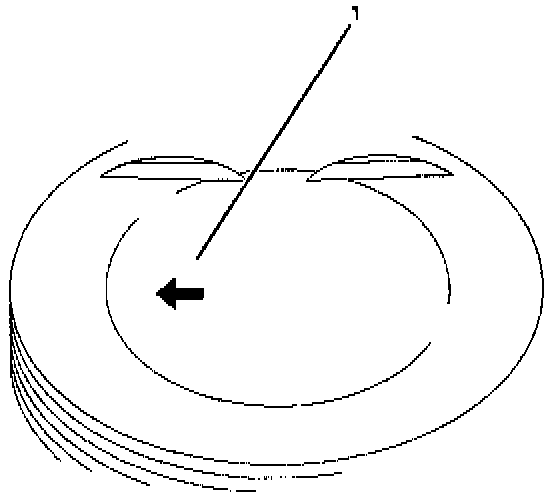

Arrow (1) on piston head points to engine timing side, bead on connecting rod points to flywheel side.

Tighten the bolts in 3 steps:
1st step 35 Nm (25 ft. lbs.)
2nd step 45°
3rd step 15°
