Home >> Isuzu >> 1999 >> Rodeo S 2WD L4-2.2L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Timing Components >> System Specifications >> Timing Gear

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

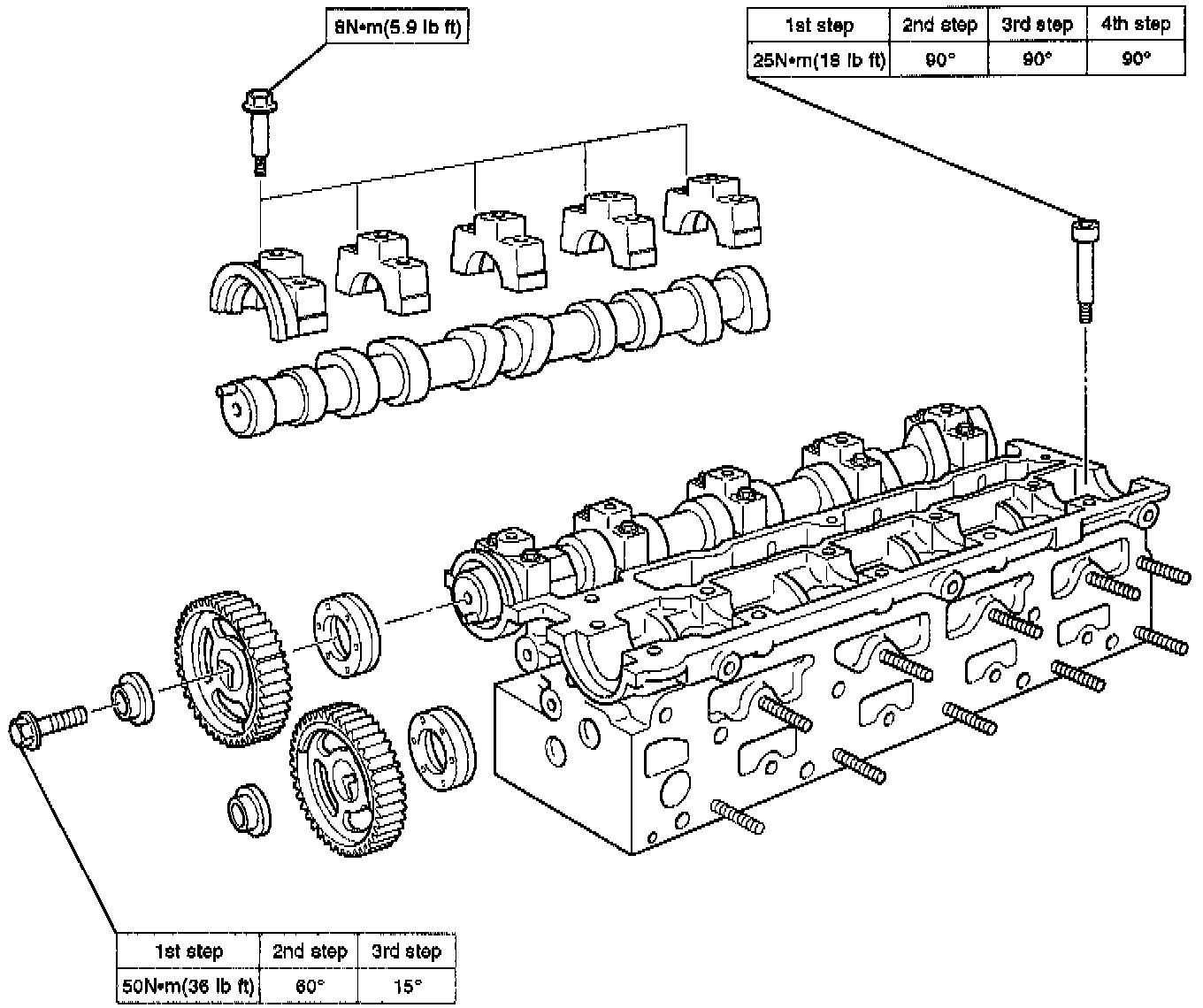

Timing Gear
