Automatic Transmission/Transaxle

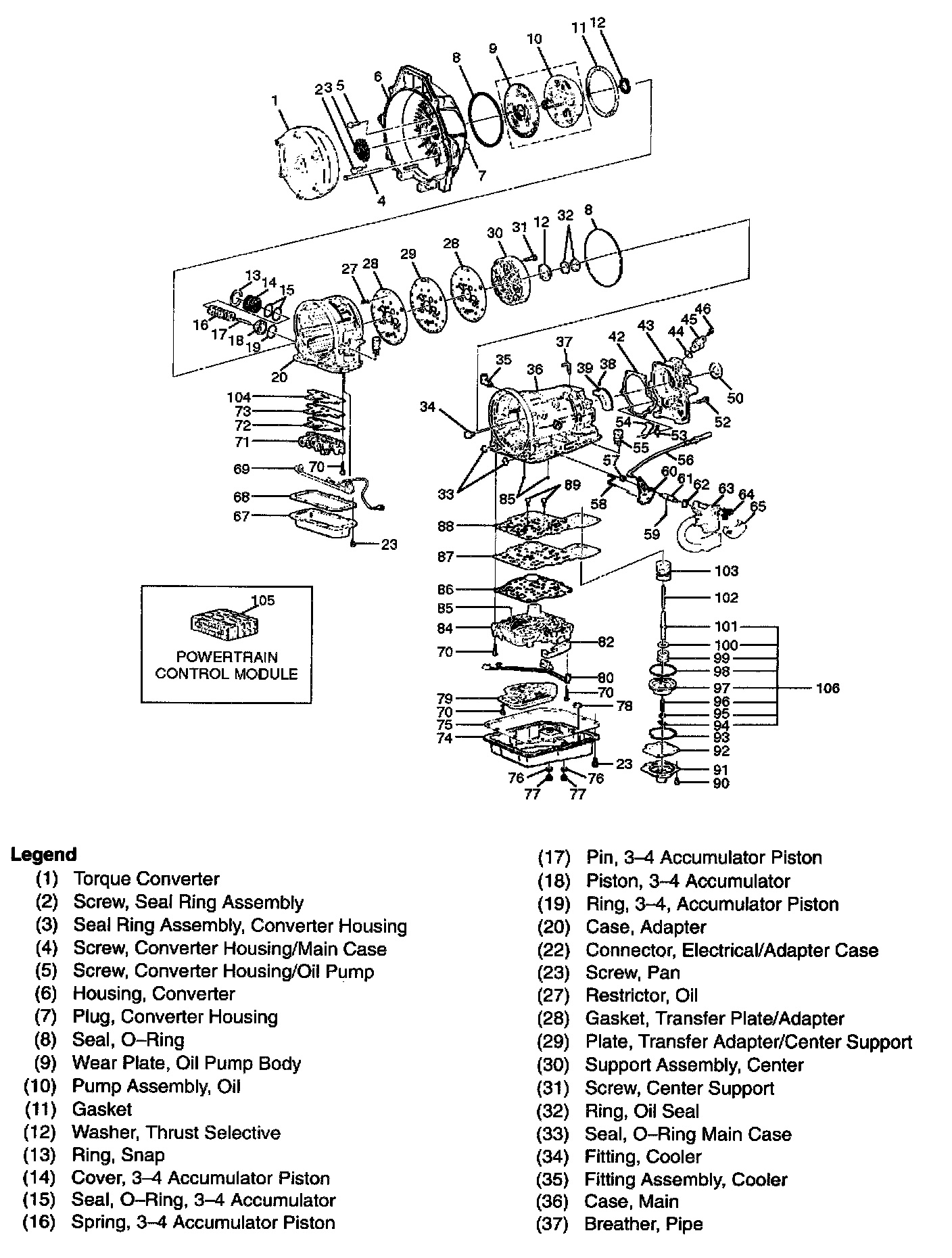

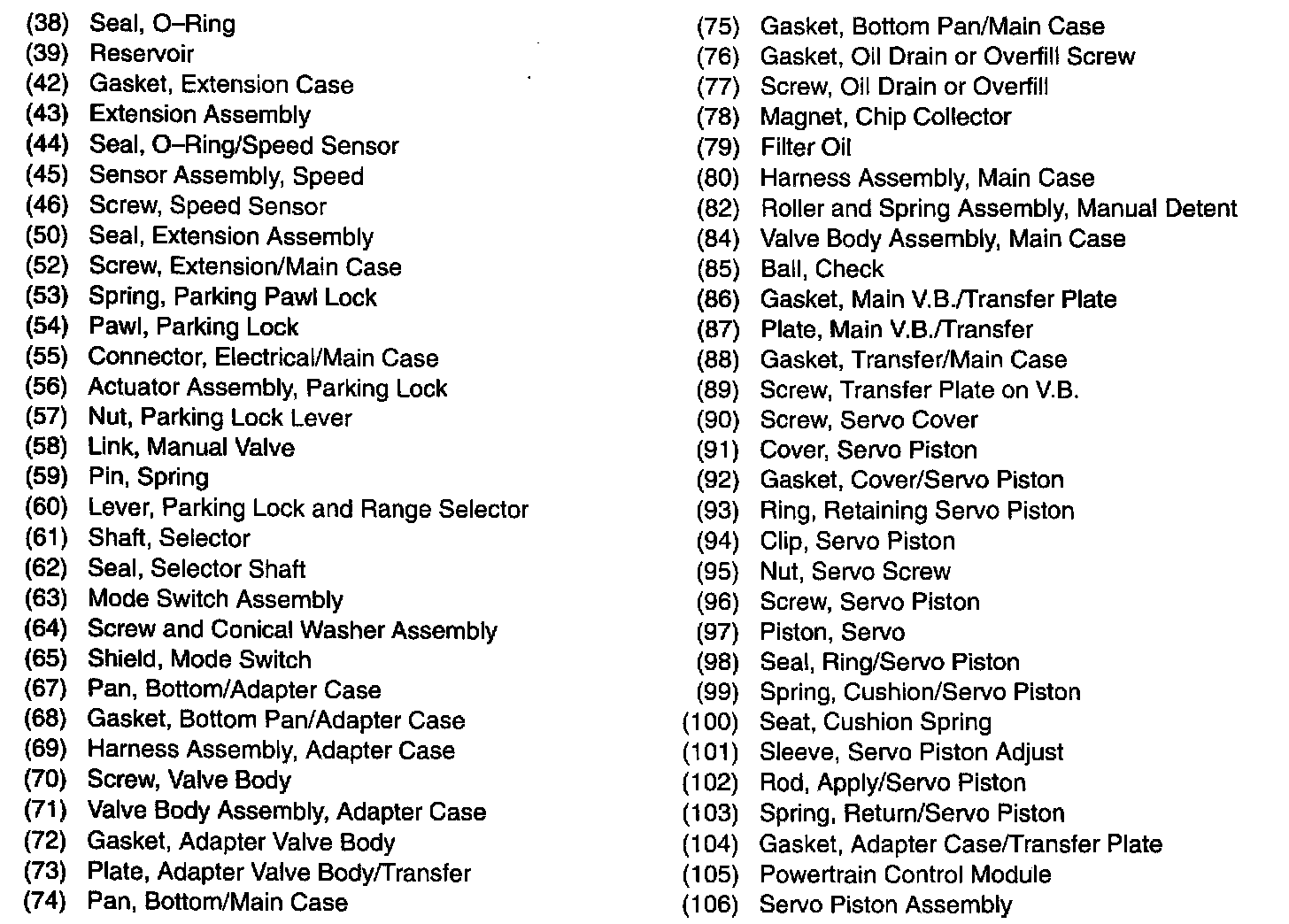

CASE AND RELATED PARTS

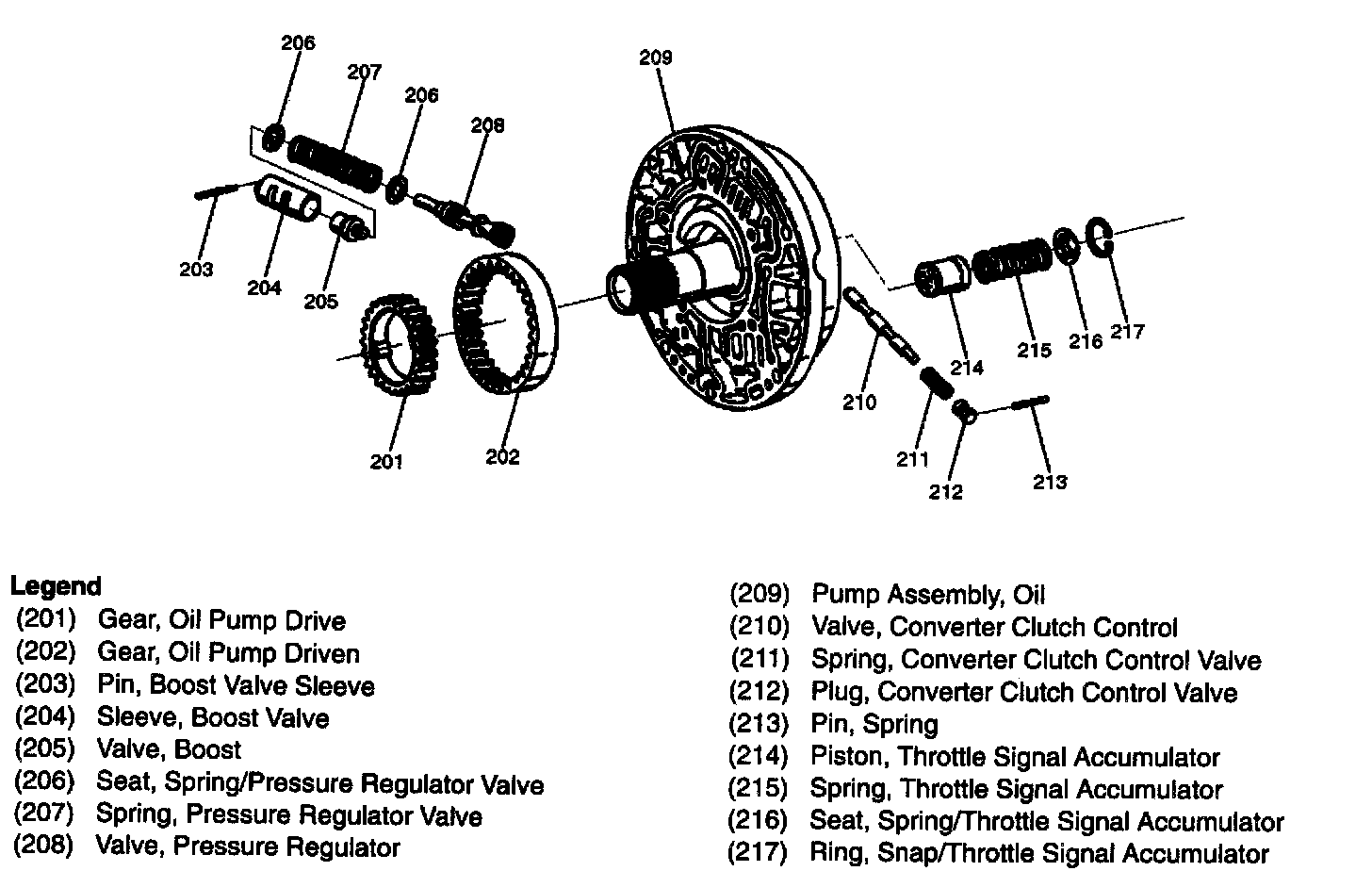

PUMP ASSEMBLY

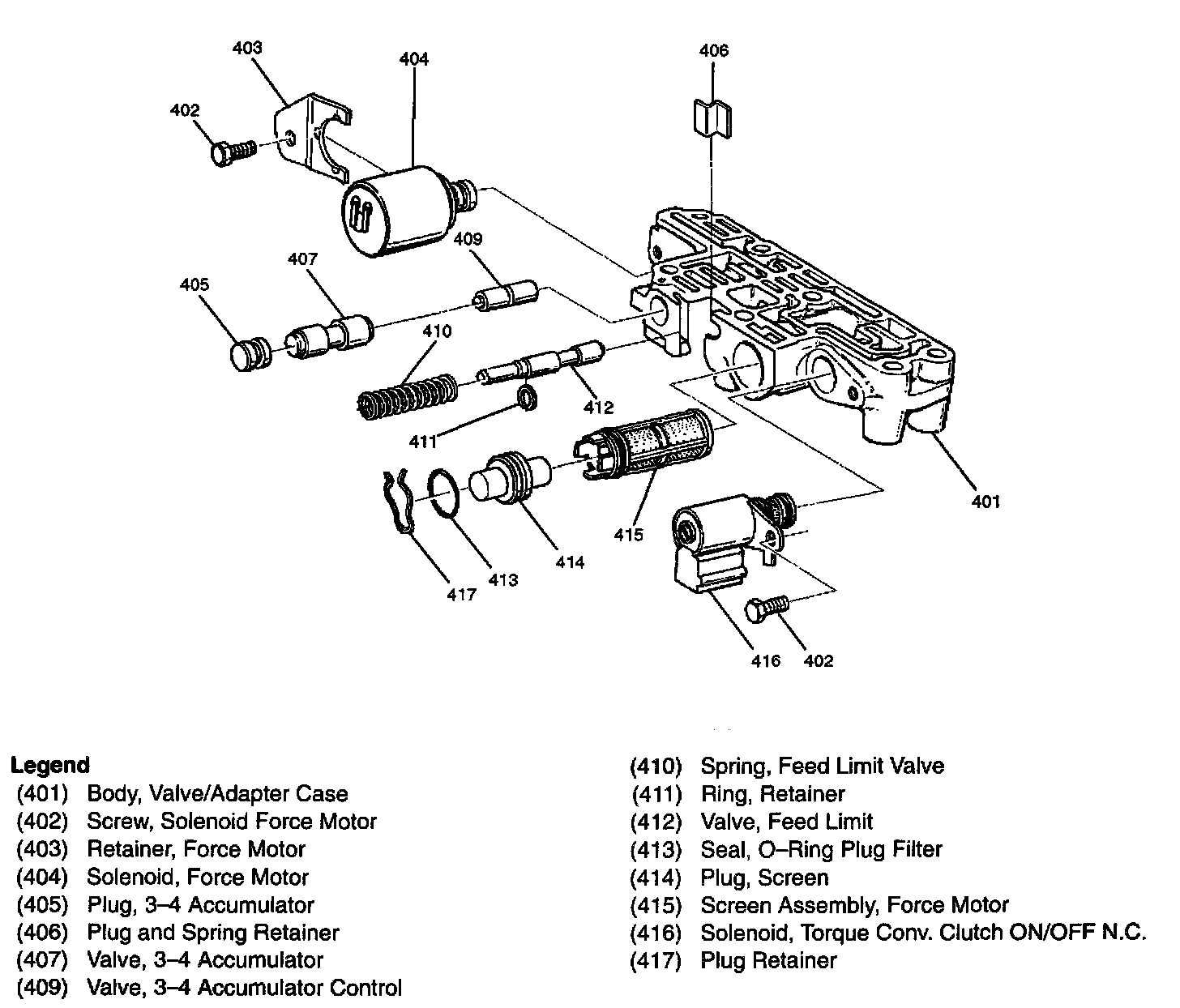

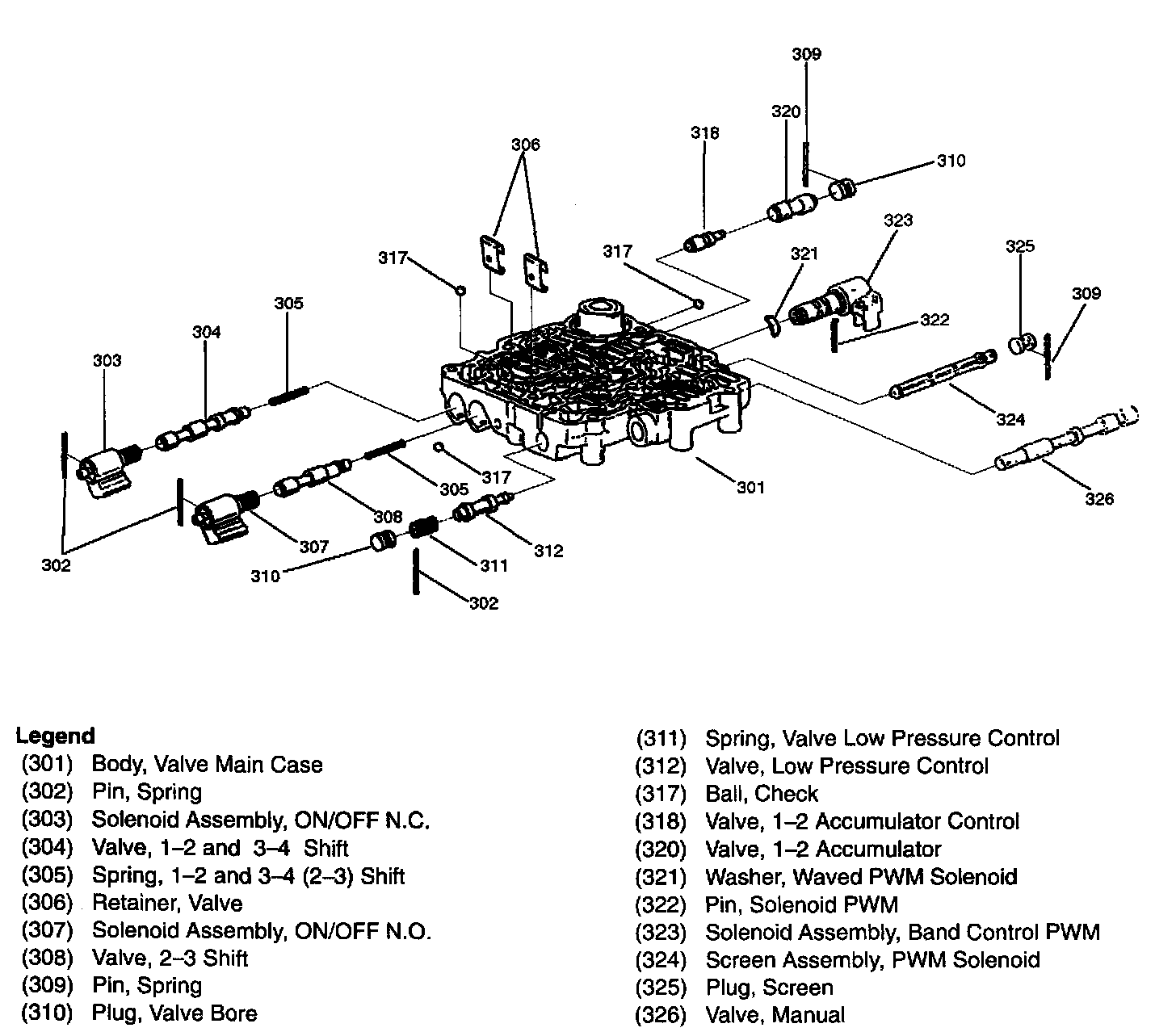

VALVE BODY ASSEMBLIES

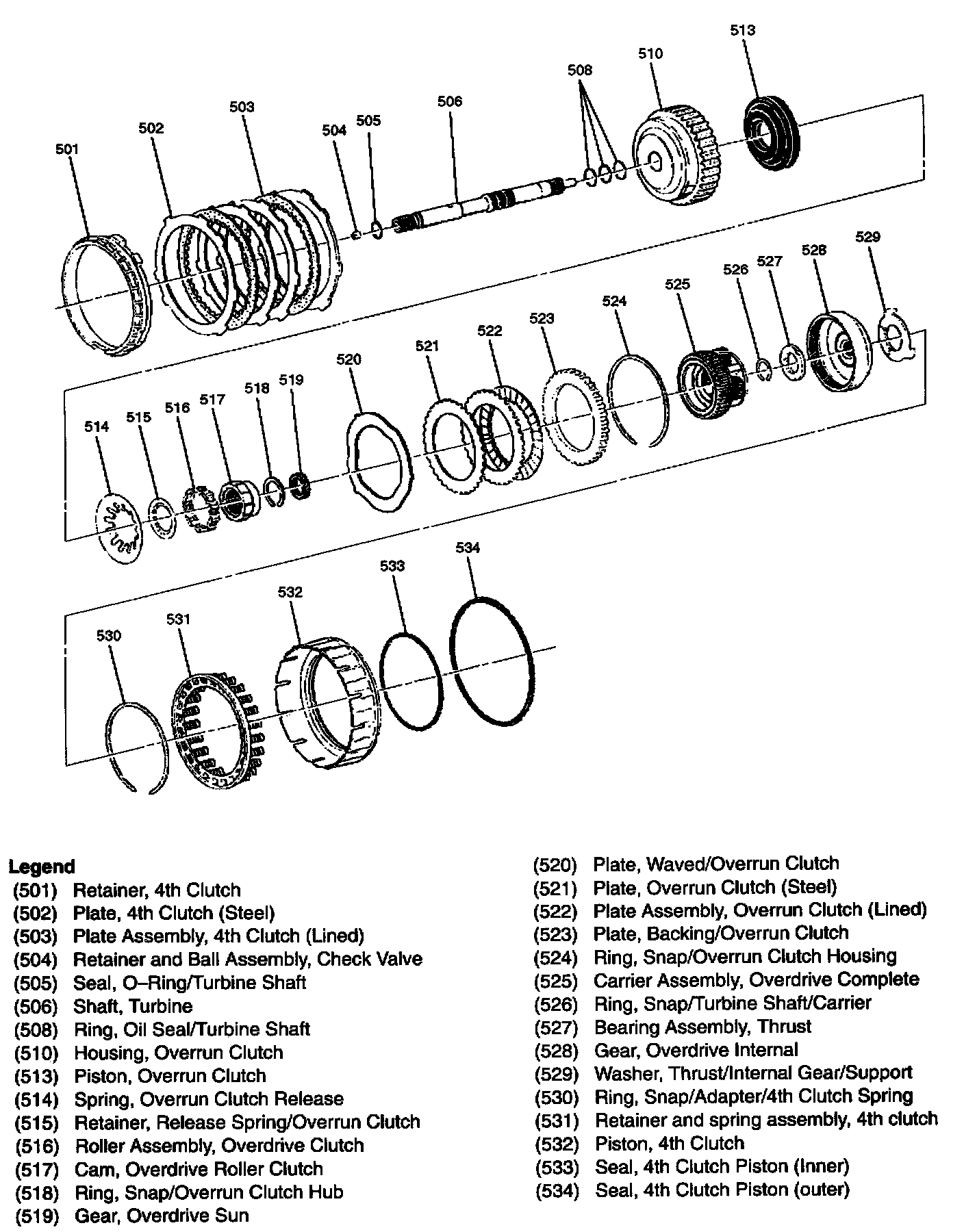

OVERDRIVE INTERNAL COMPONENTS

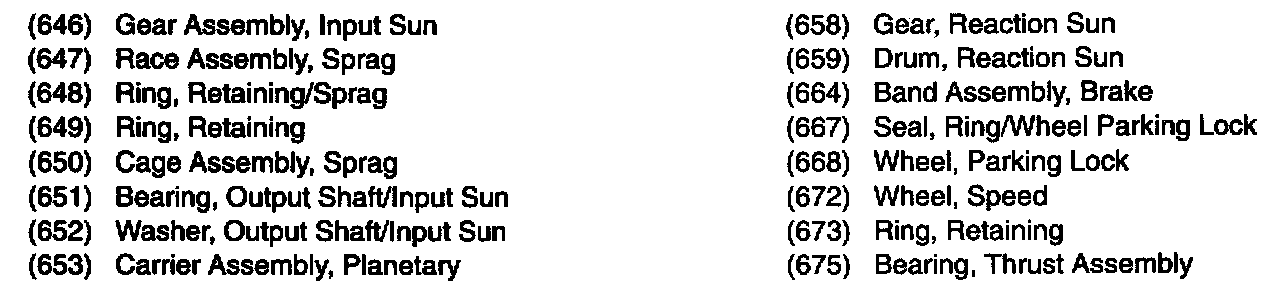

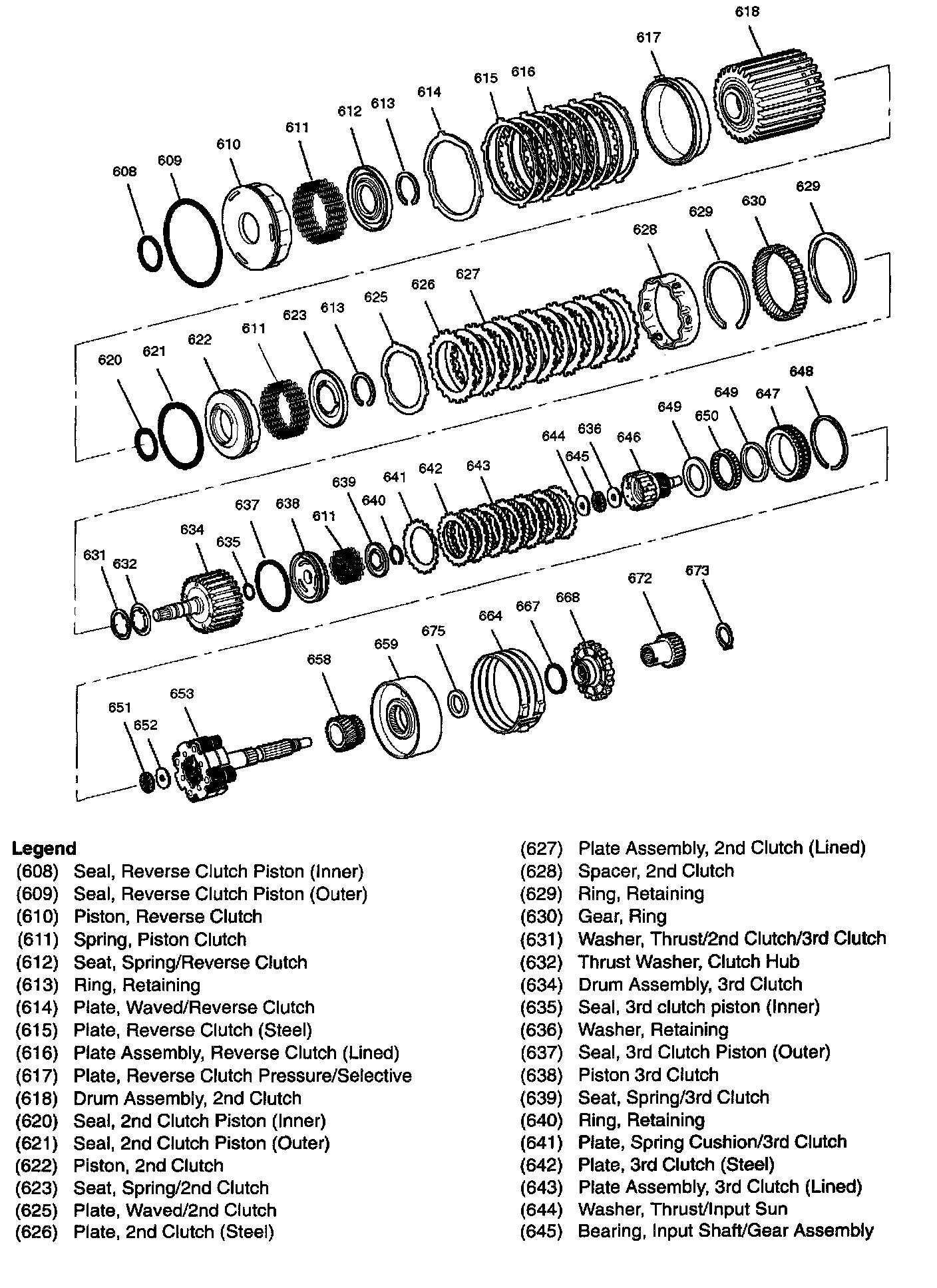

INTERNAL COMPONENTS

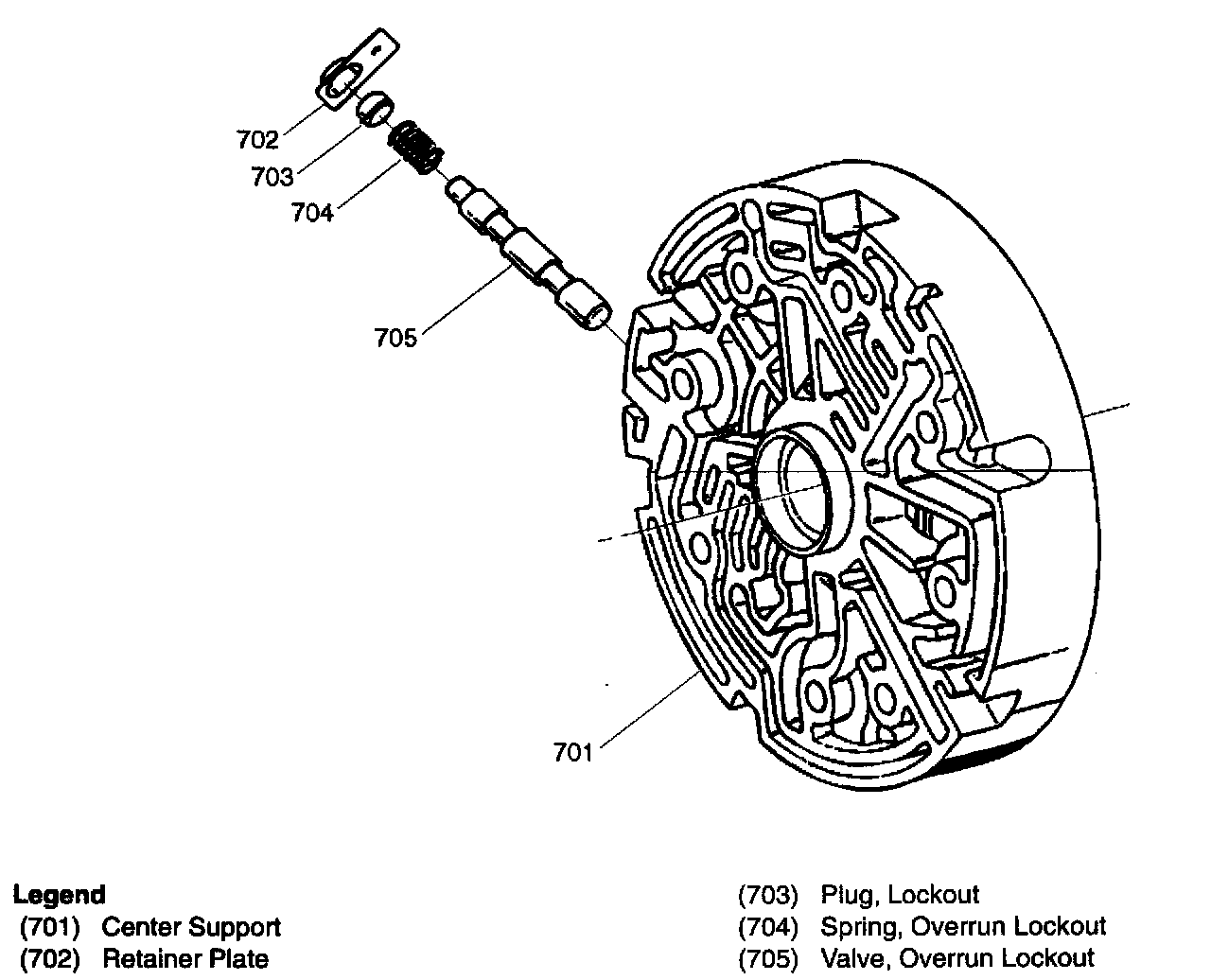

CENTER SUPPORT ASSEMBLY
