Undercarriage Components

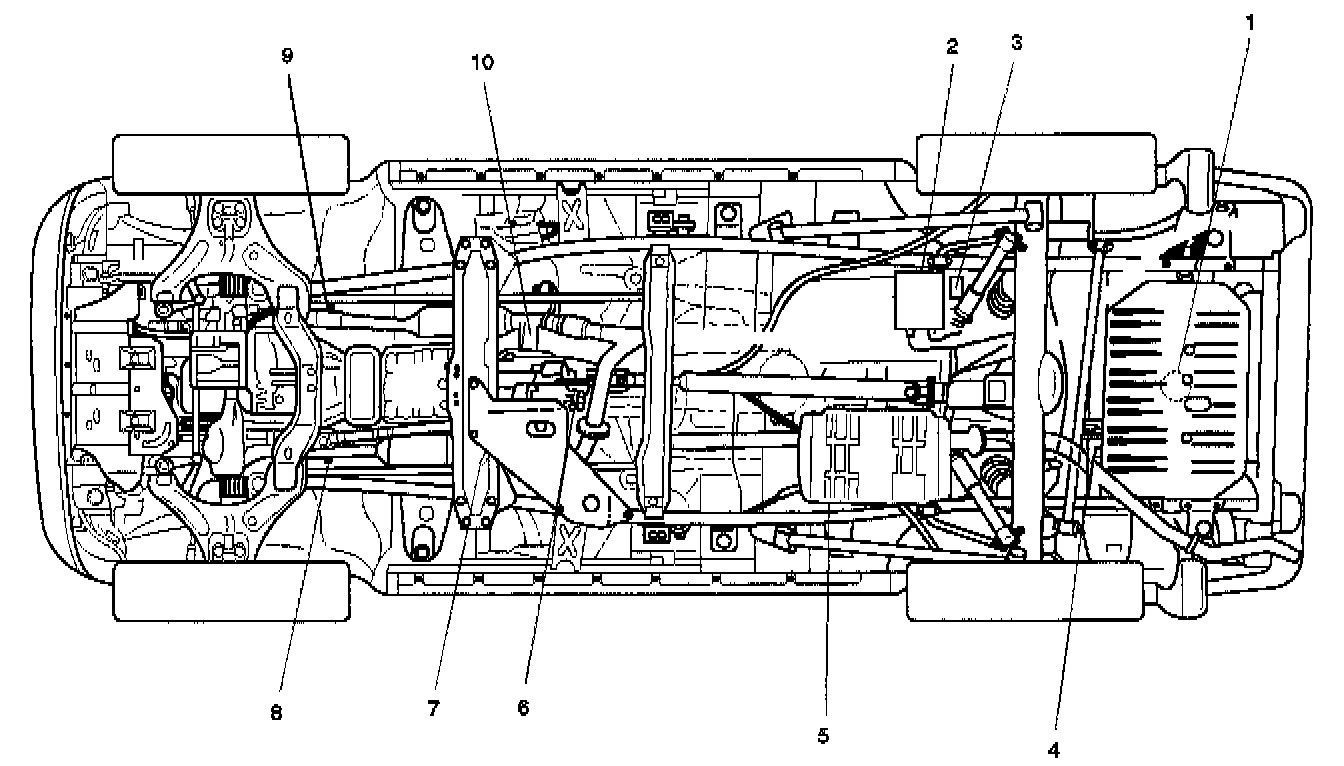

Undercarriage Component Locator:

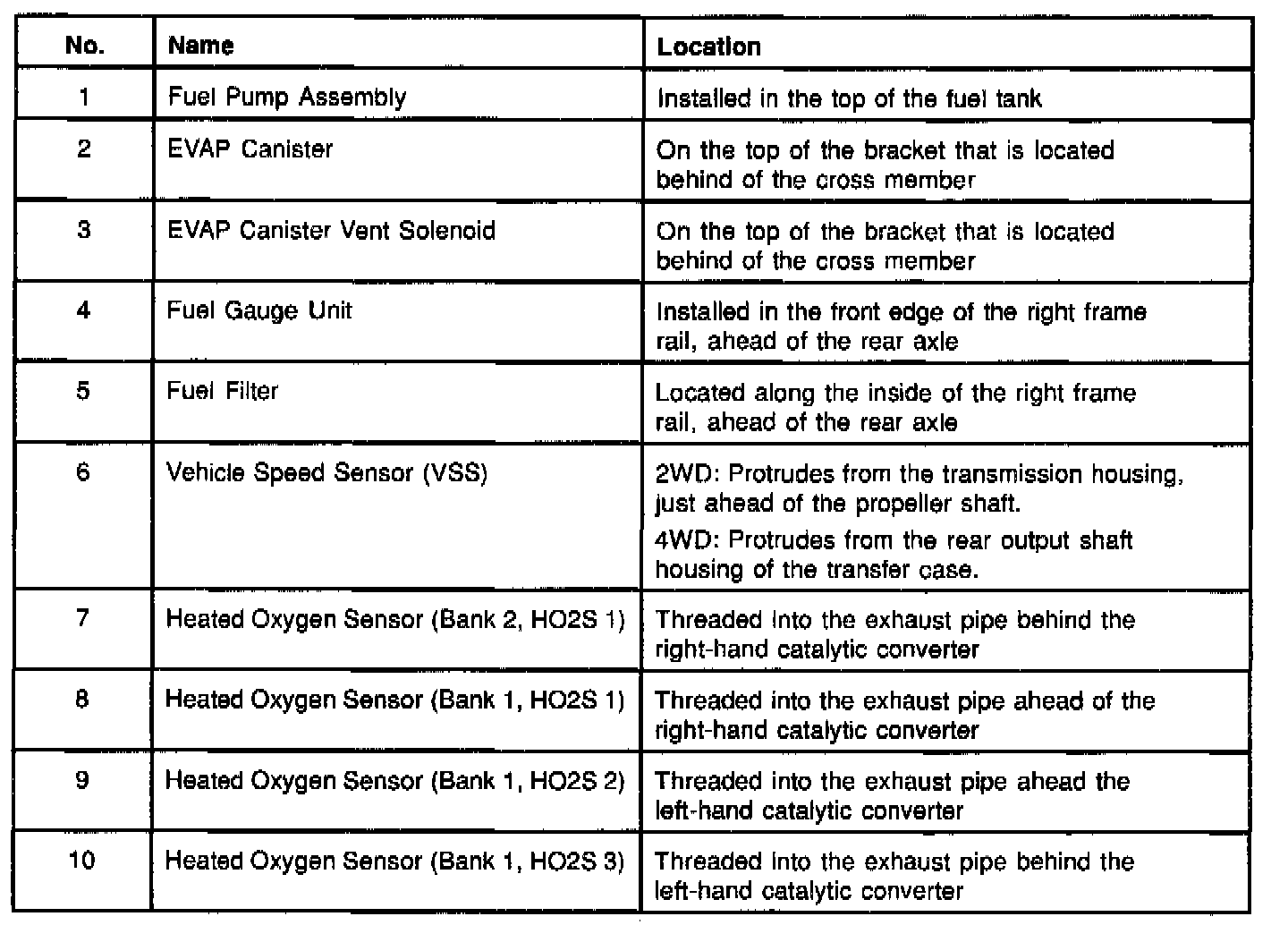

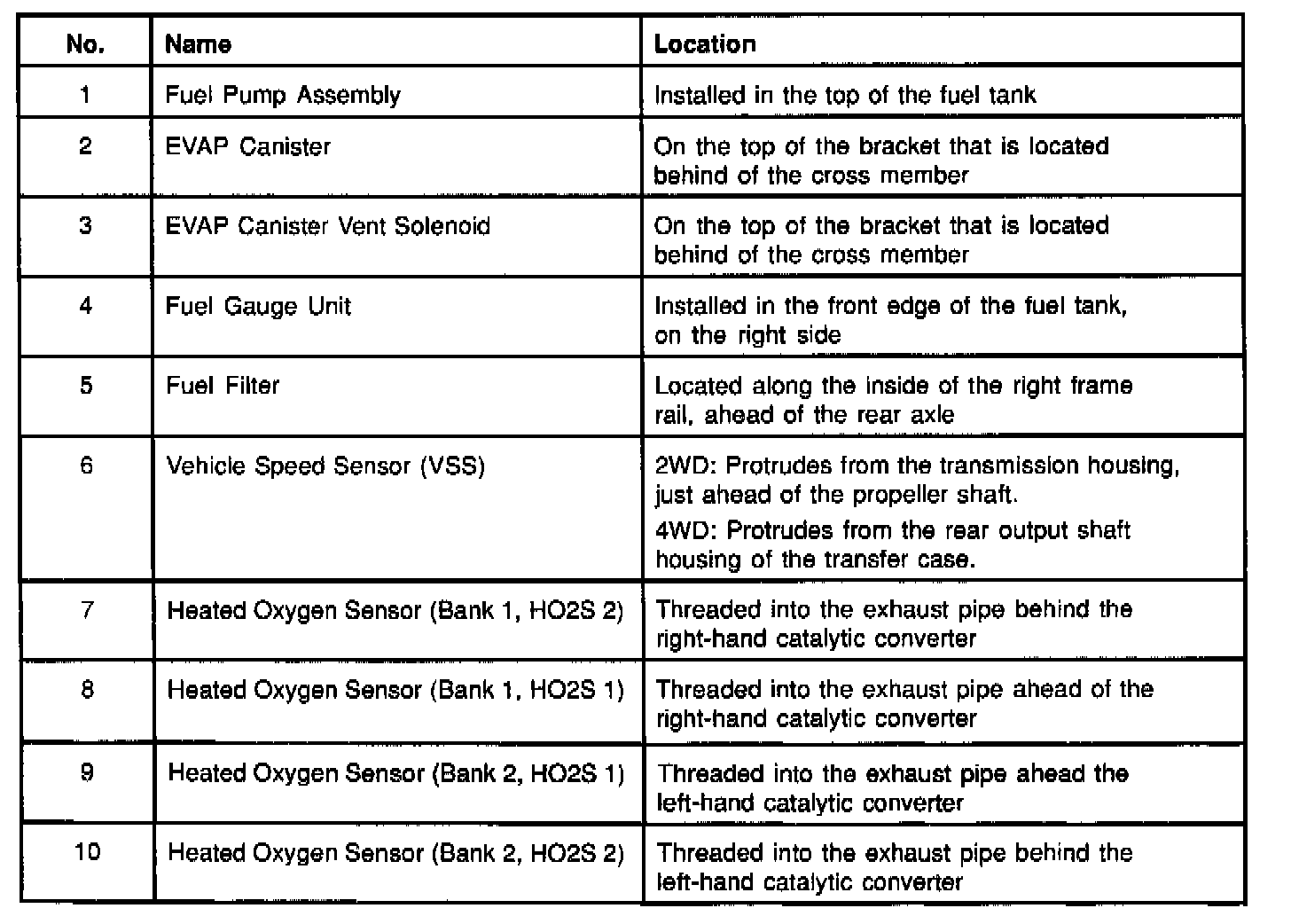

Undercarriage Component Locator Table (A/T):

Undercarriage Component Locator Table (M/T):

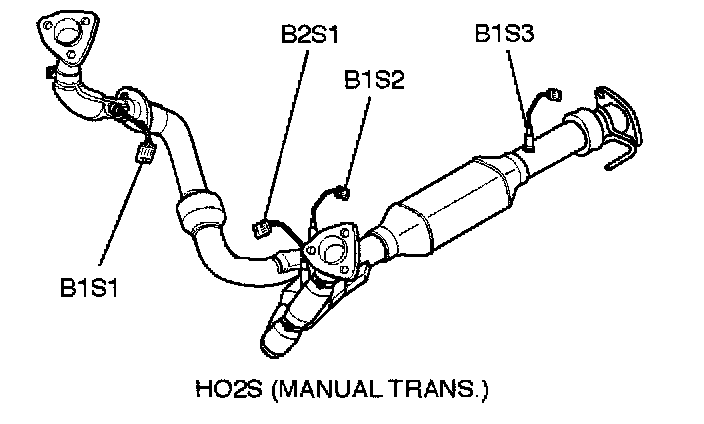

HO2S (M/T):

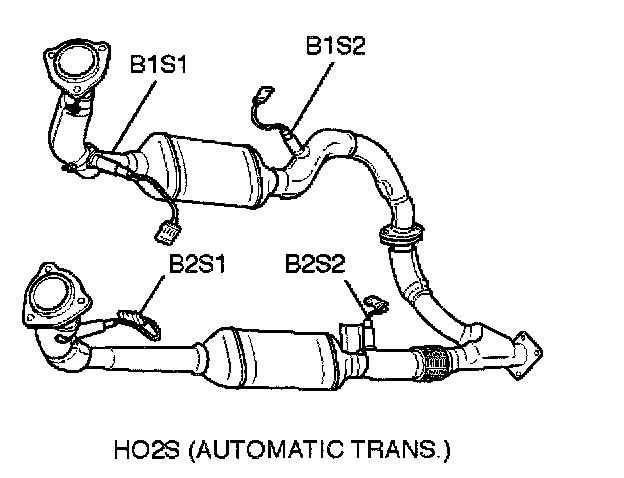

HO2S (A/T):

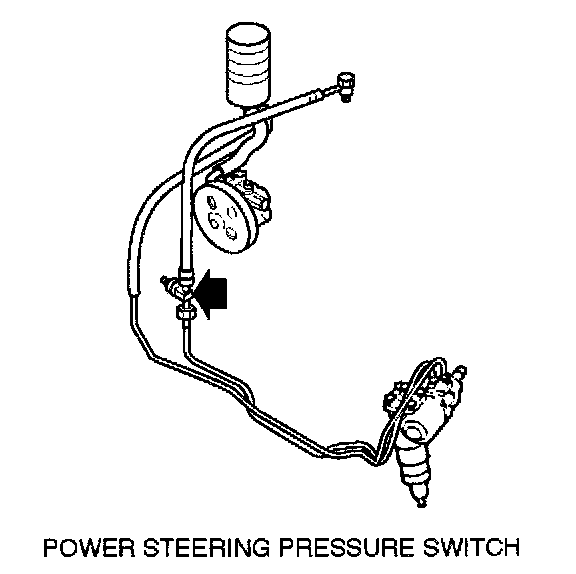

Power Steering Pressure Switch:

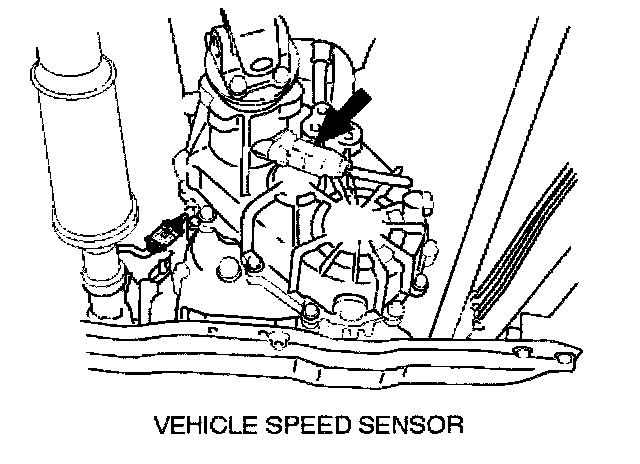

Vehicle Speed Sensor:

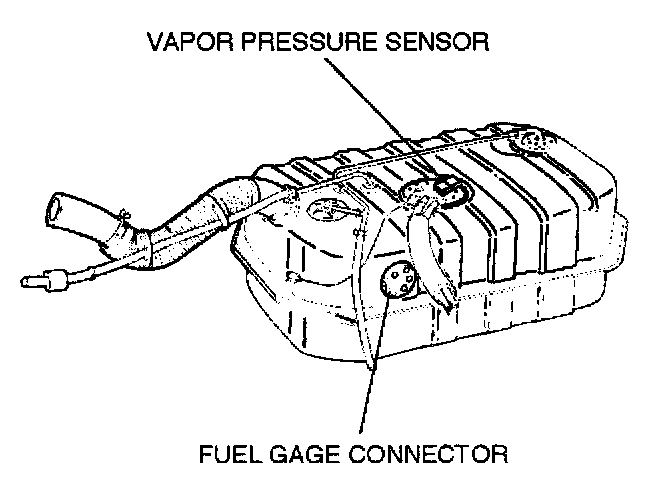

Vapor Pressure Sensor And Fuel Gauge Connector:

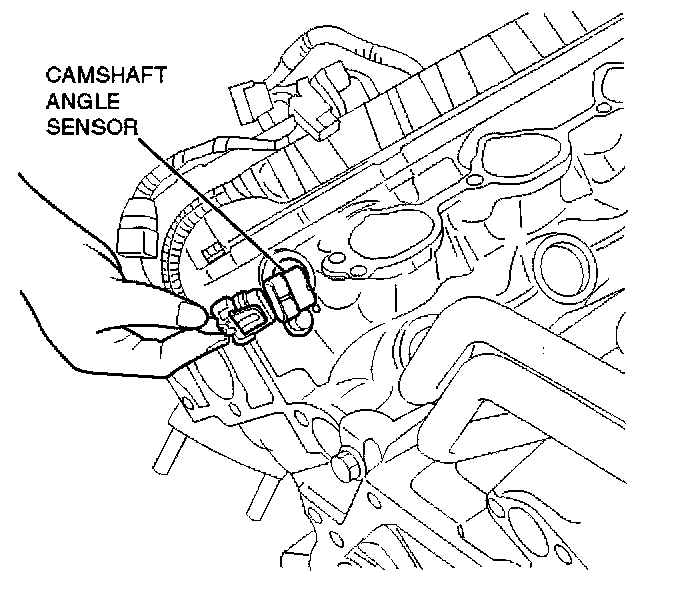

Camshaft Angle Sensor:

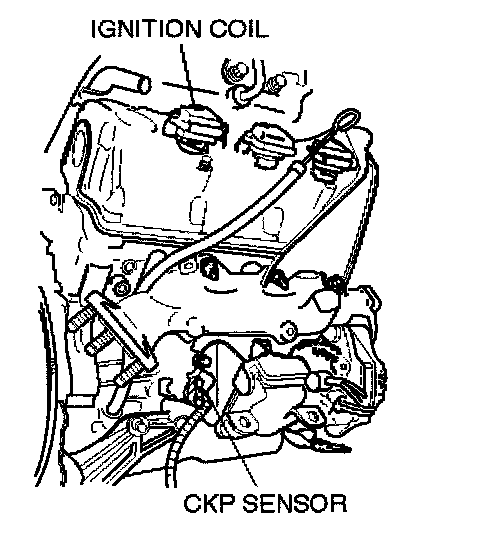

Ignition Coil And CKP Sensor:

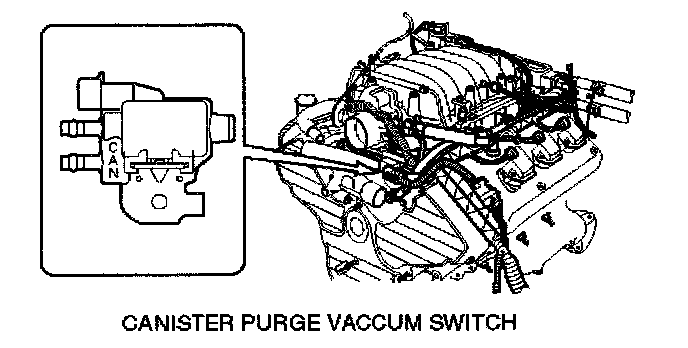

Canister Purge Vacuum Switch:

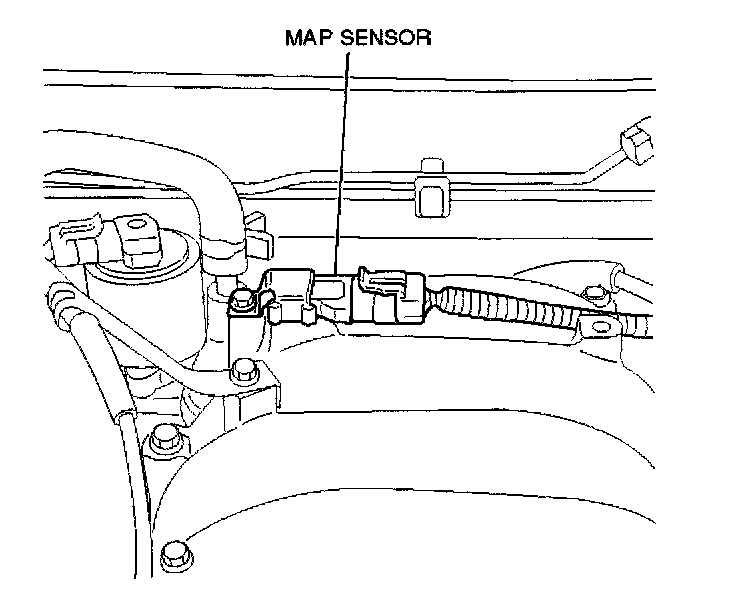

MAP Sensor:

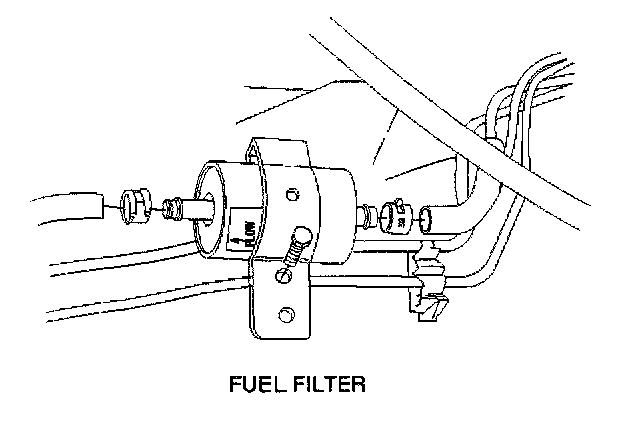

Fuel Filter:

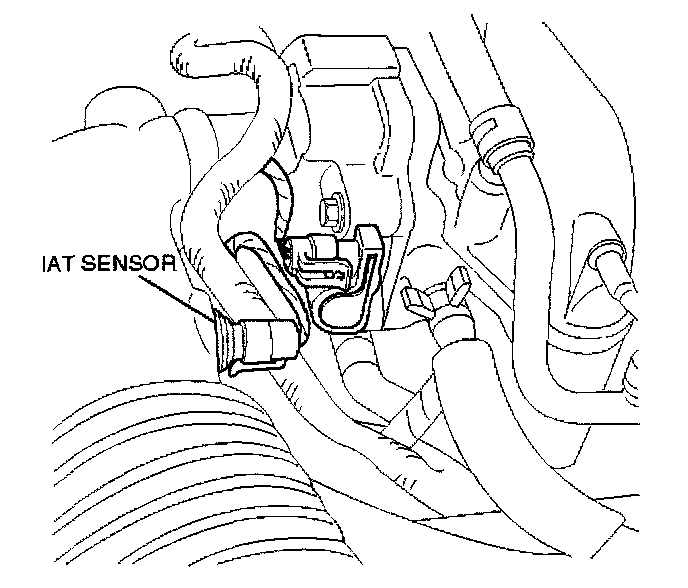

IAT Sensor:

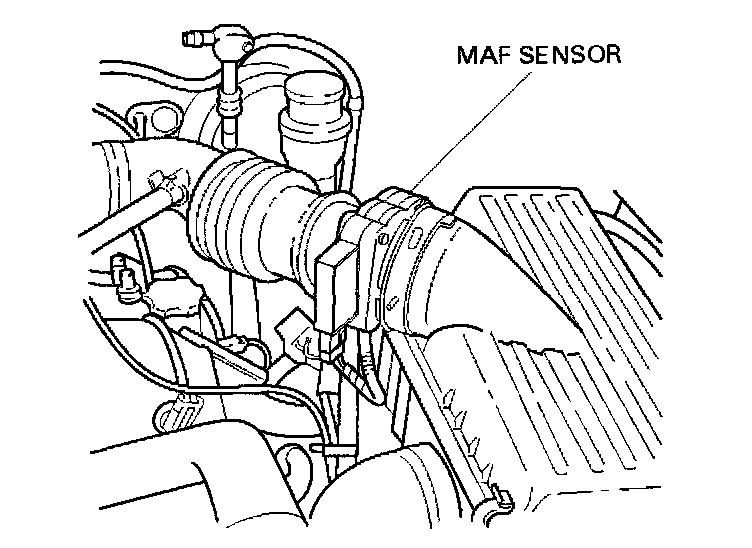

MAF Sensor:

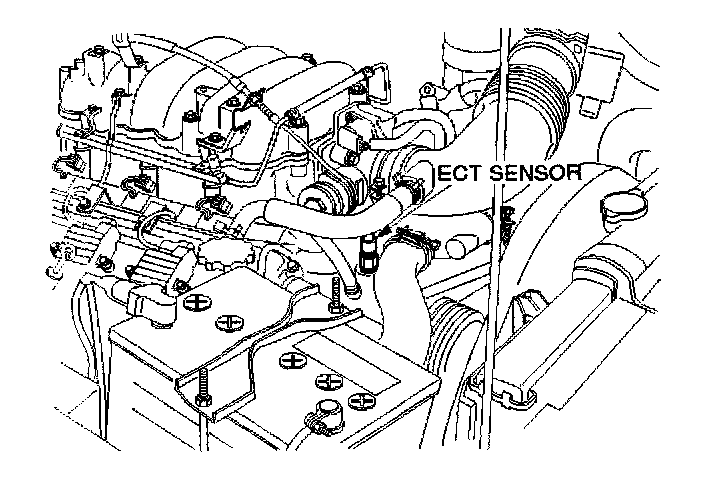

ECT Sensor:

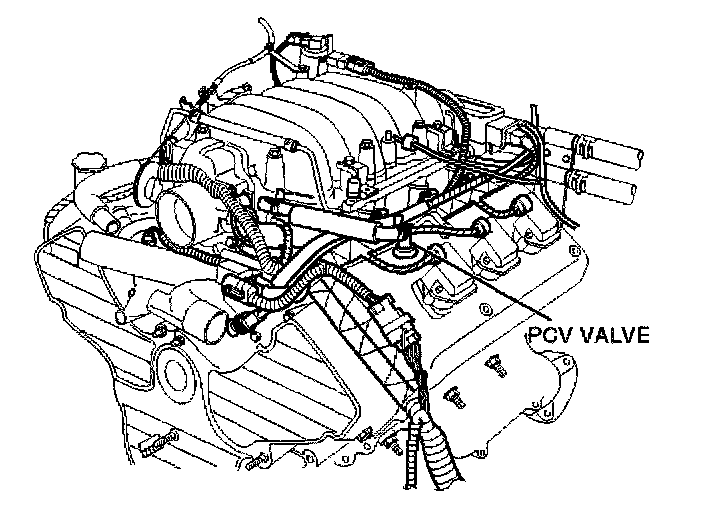

PCV Valve:
