Oil Gallery

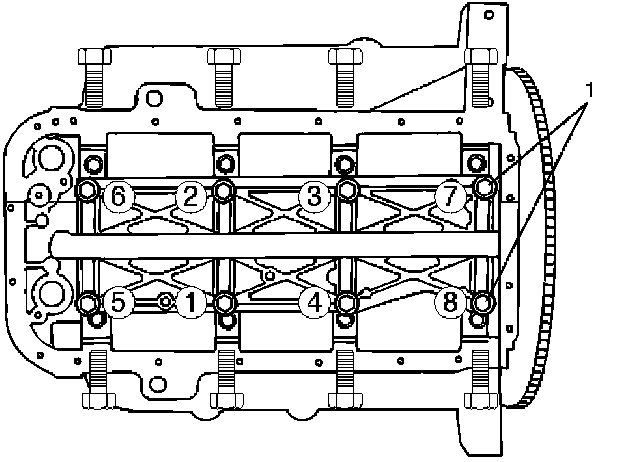

Install oil gallery and tighten the bolts in 2 steps in the order shown.
1st step 29 Nm (22 ft. lbs.)
2nd step 55° - 65°
