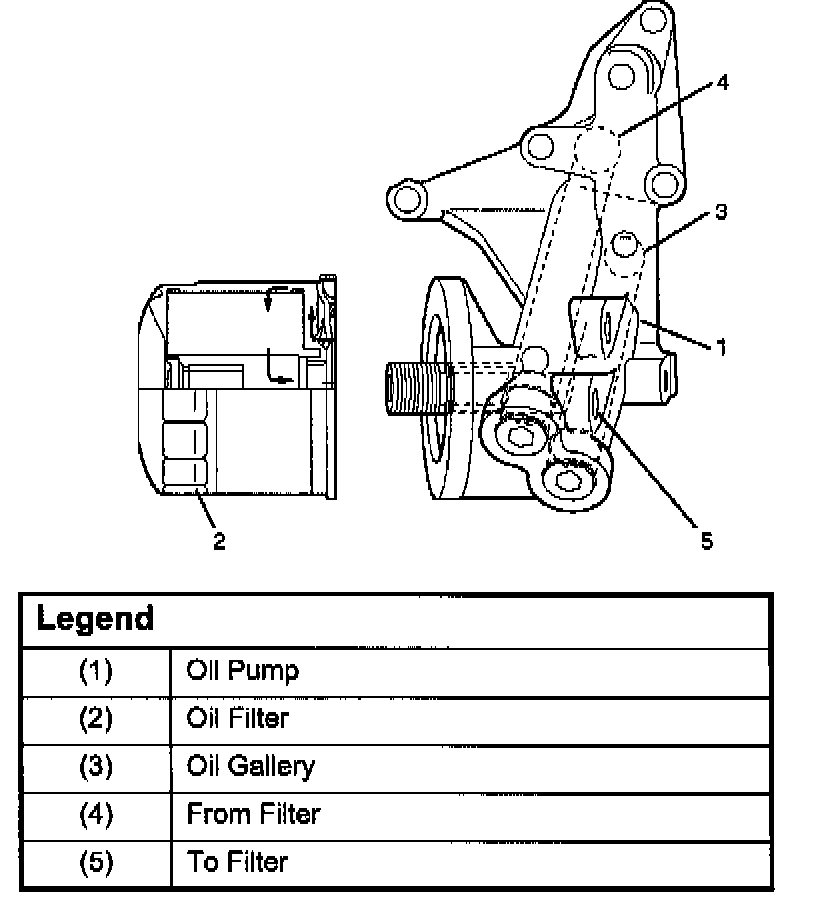

Oil Filter: Service and Repair

Oil Filter

Removal
1. Disconnect battery ground cable.
2. Drain engine oil.
3. Remove oil filter using J-36390 filter wrench.

Installation
1. Clean filter fitting surface and apply small amount of engine oil to sealing surface.





2. Install oil filter cartridge by hand until it comes in contact with sealing surface then rotate additional 2/3 turn to tighten using J-36390 filter wrench.
3. Fill engine oil until full level on dipstick.
4. Reconnect battery ground cable.
