Engine Components

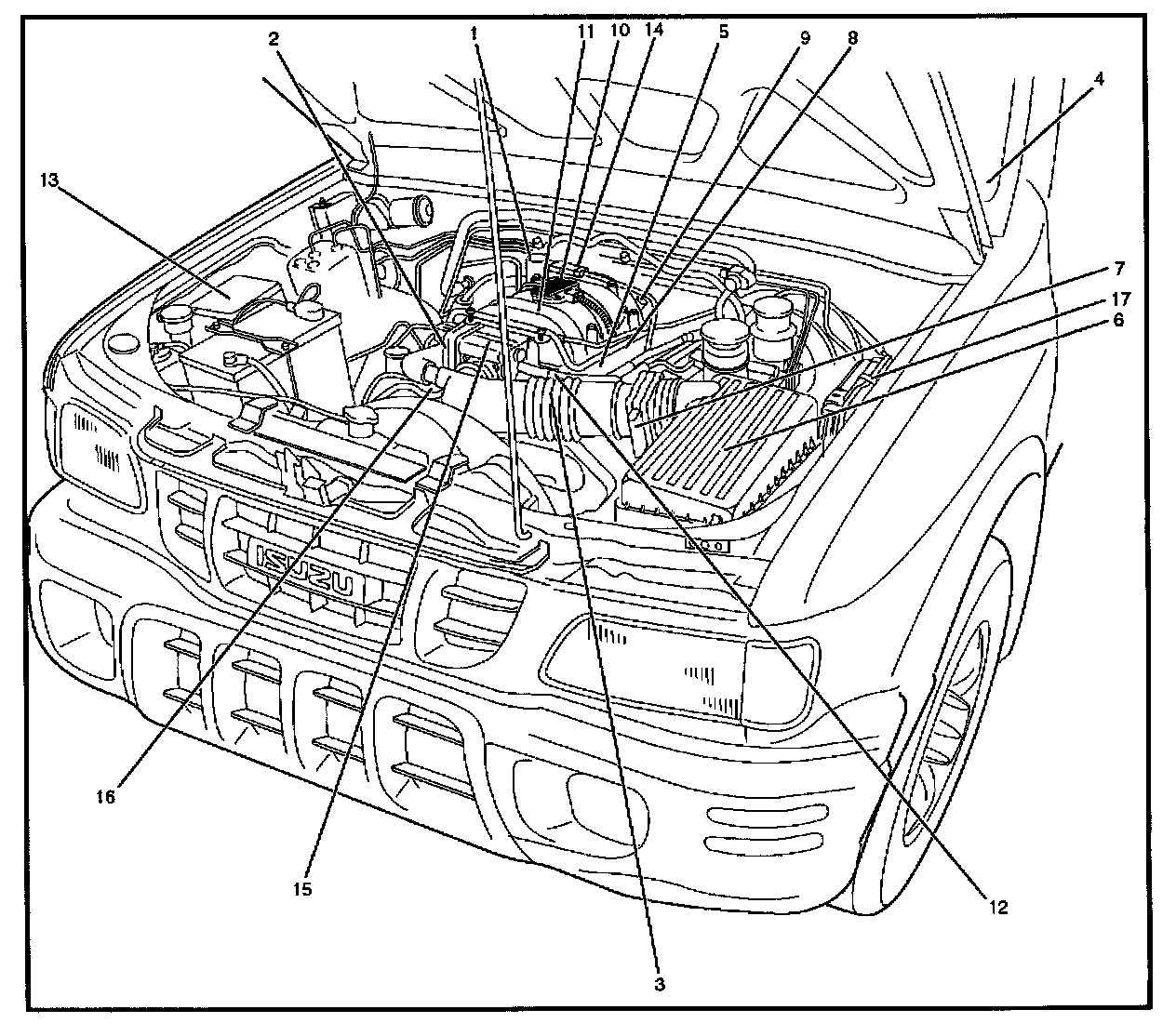

Engine Component Locator View:



Engine Component Locator Table:

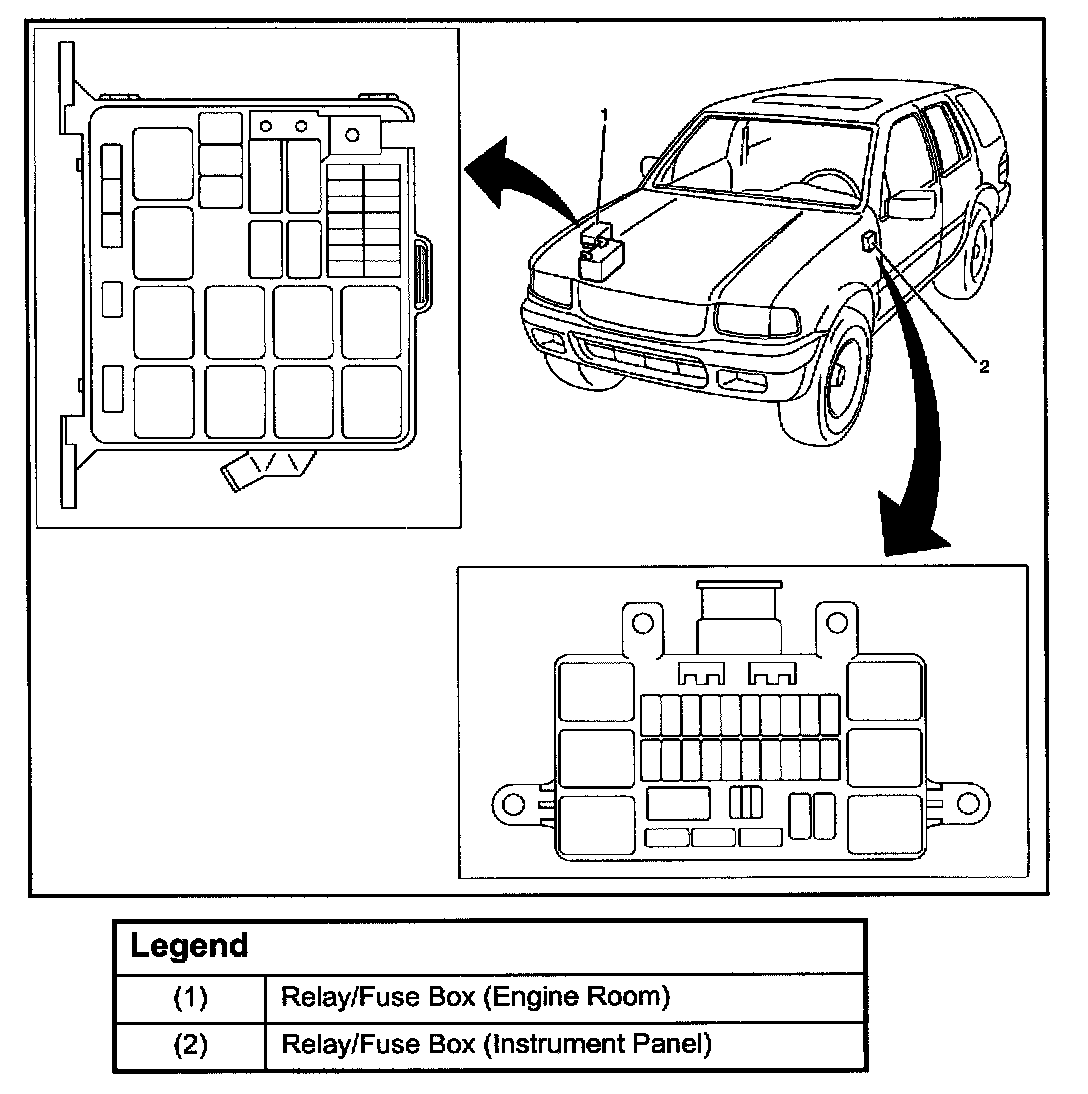

Relay/Fuse Box Locations:

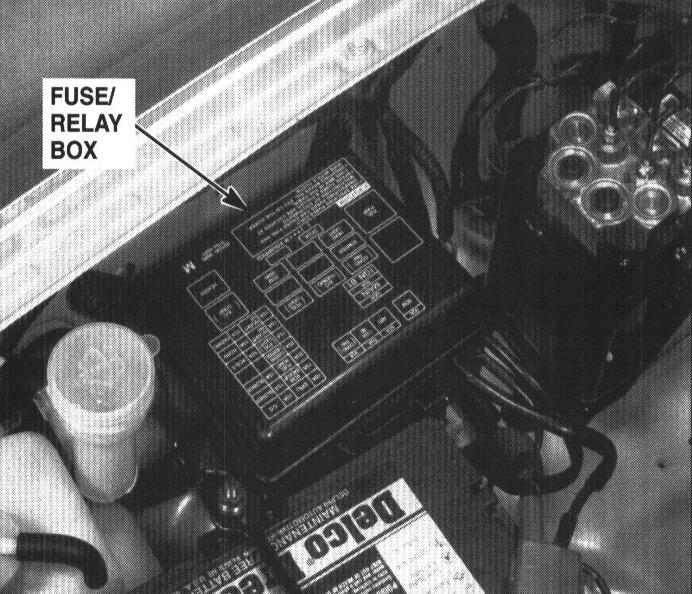

14 - Right Side Of Engine 3.2L Compartment:

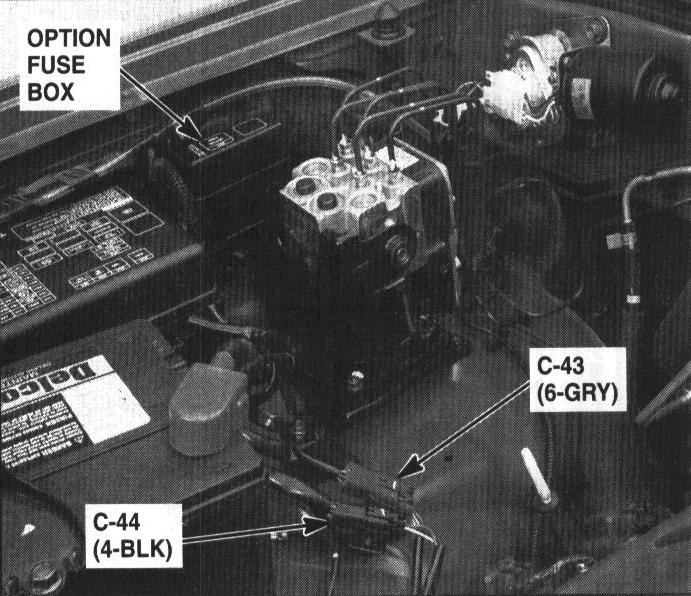

55 - Right Side Of 3.2L Engine Compartment:

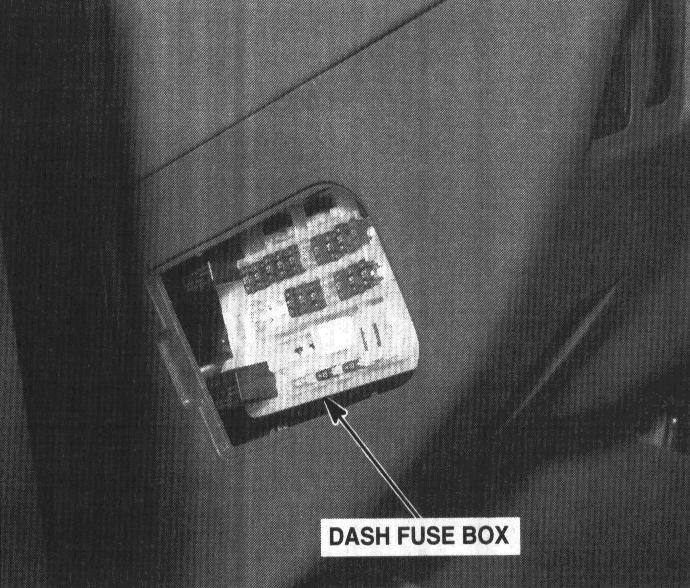

58 - Left Side Of Dash:
