Oxygen Sensor: Locations

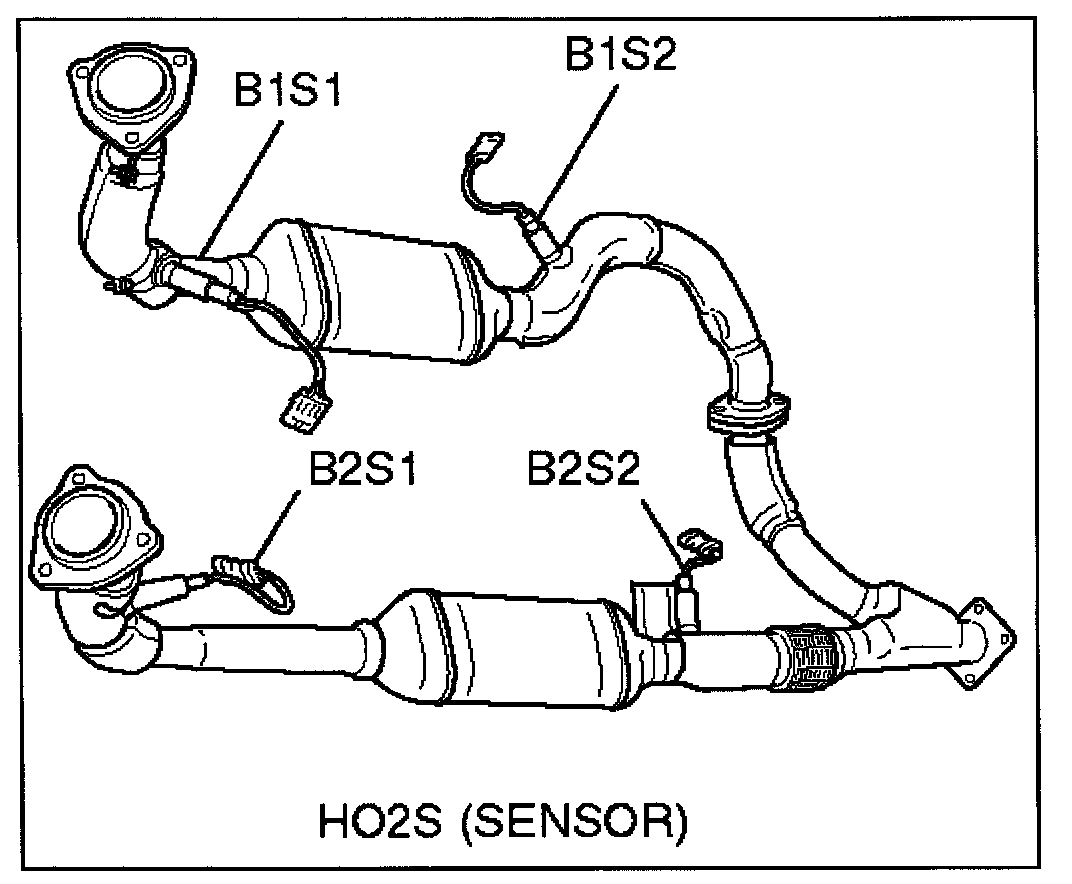

HO2S (Sensor):



98 - Left Front 3.2L Exhaust Downpipe:



99 - Rear Of Left 3.2L Catalytic Converter:



100 - Right Front 3.2L Exhaust Downpipe:



101 - Rear Of Right 3.2L Catalytic Converter:
