Home >> Isuzu >> 2000 >> Trooper LS V6-3.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Camshaft, Engine

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

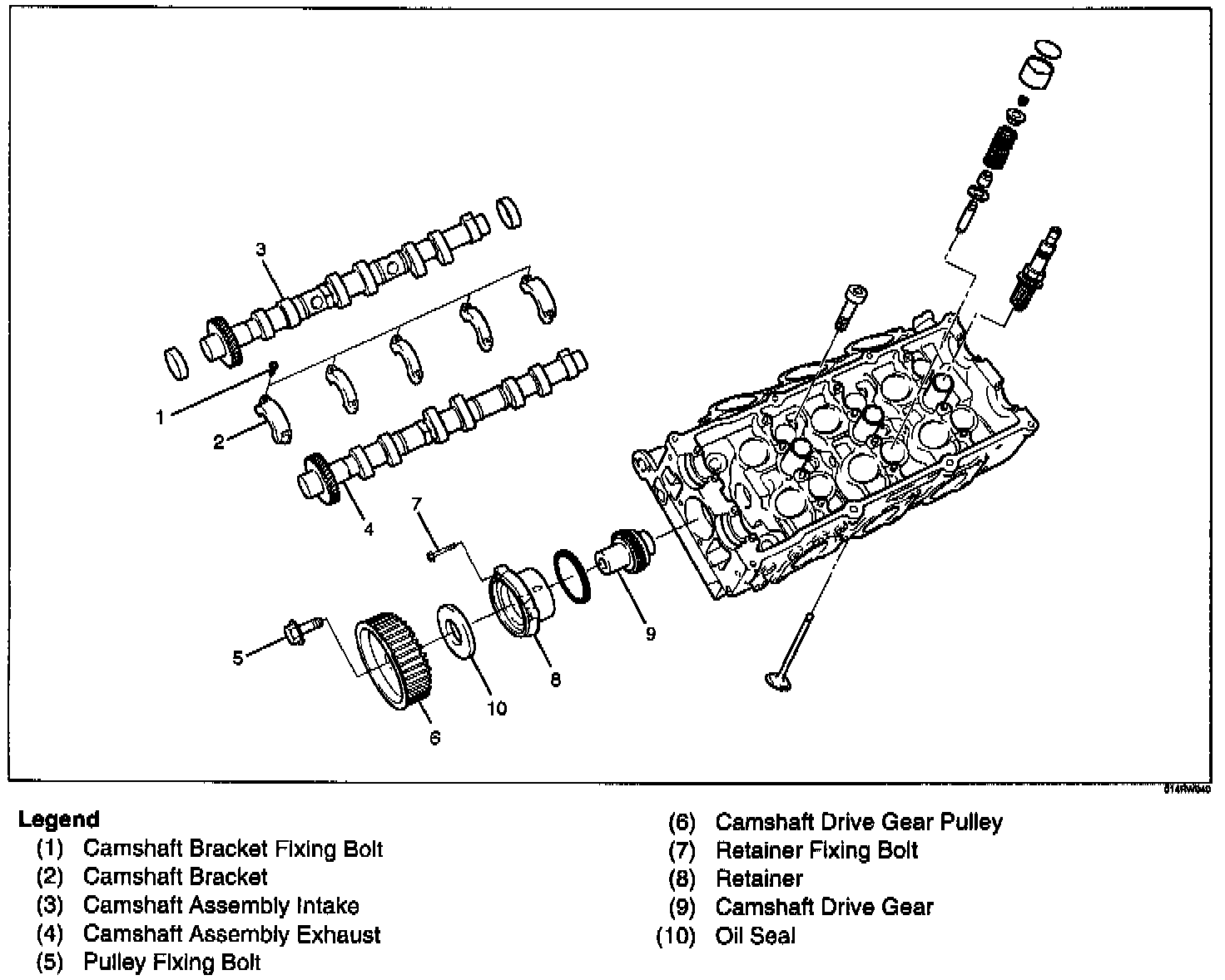

Camshaft, Engine
