Manual Transmission/Transaxle

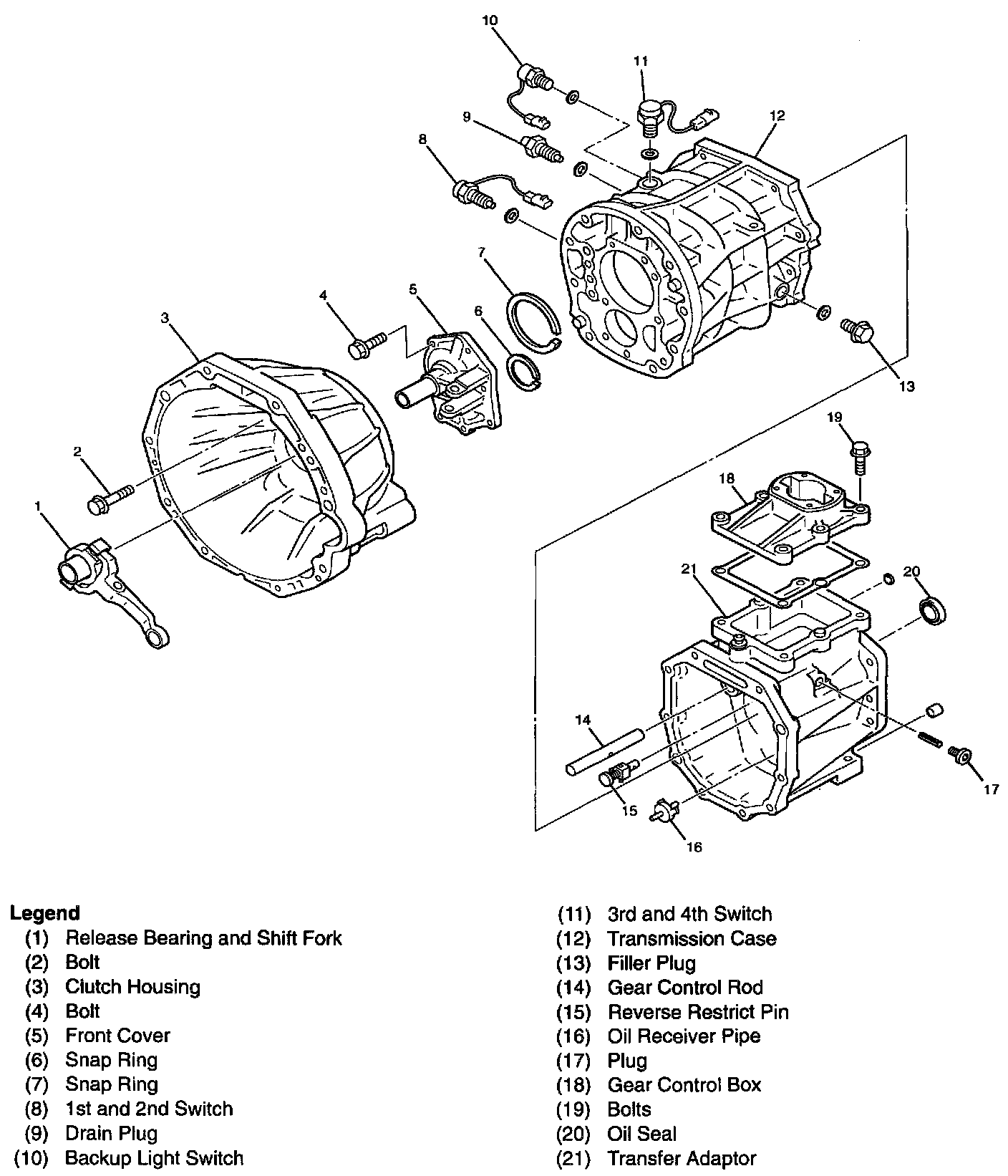

Part 1 Of 2:




Part 2 Of 2:

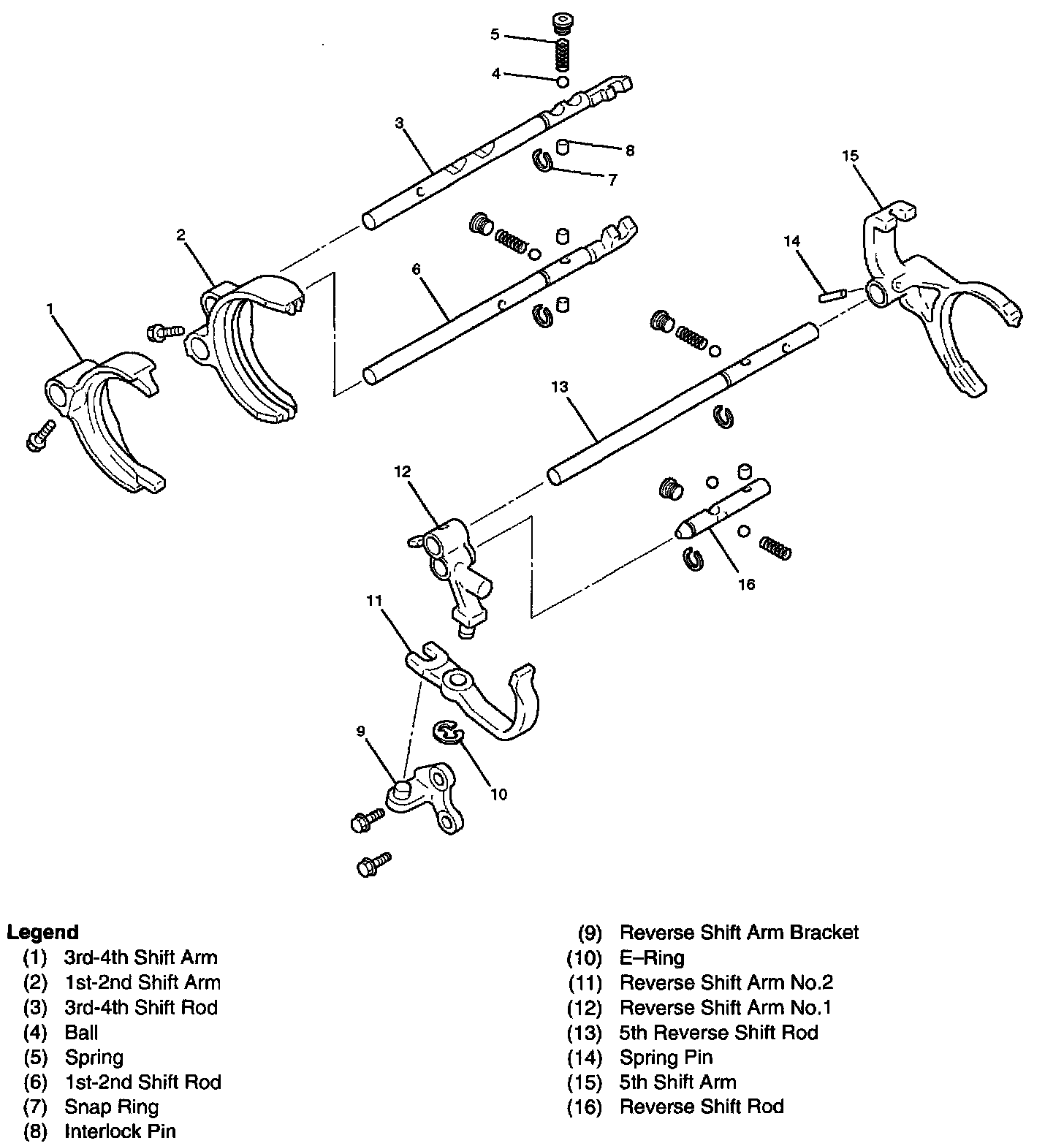

Shift Forks:

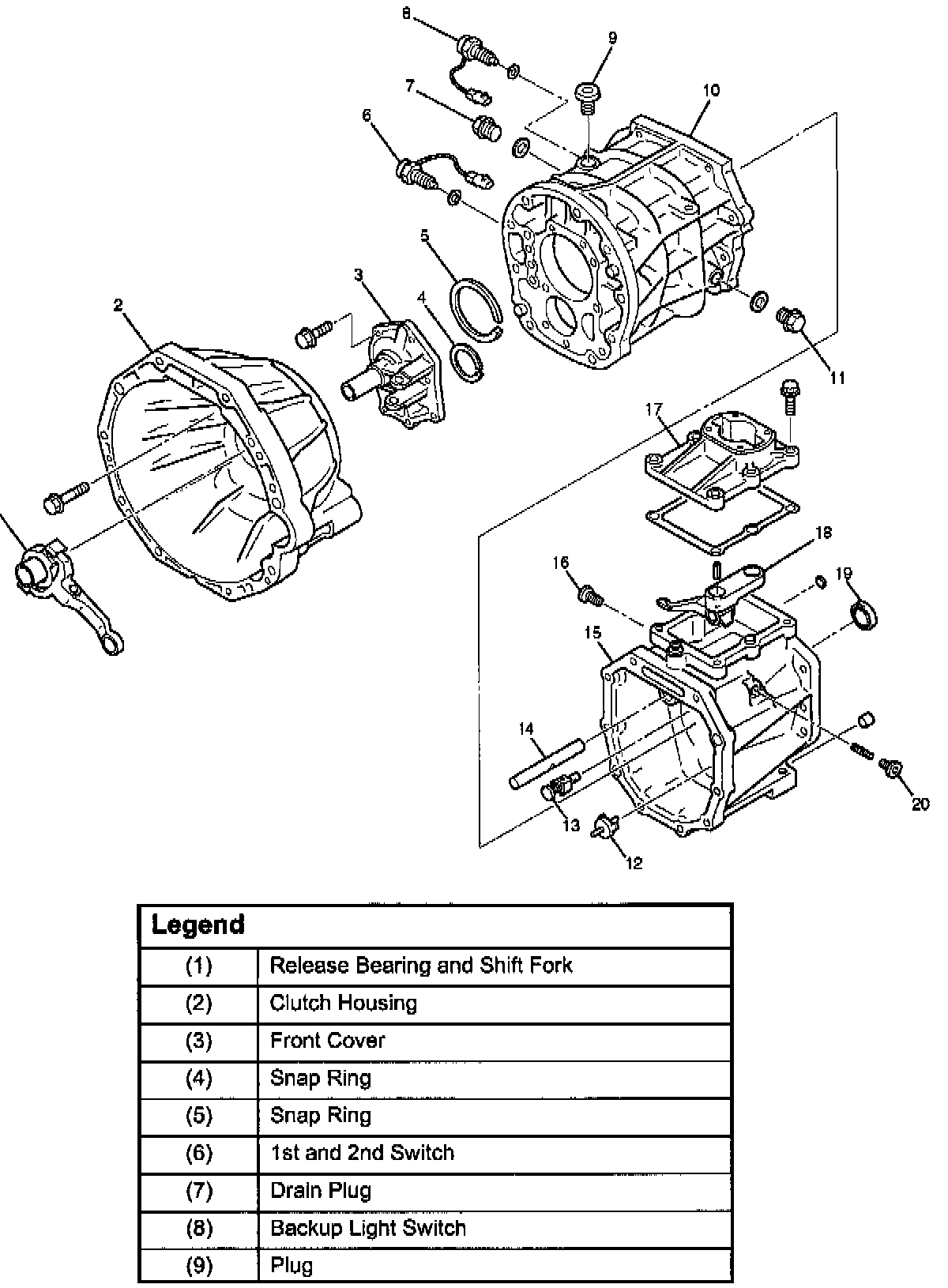

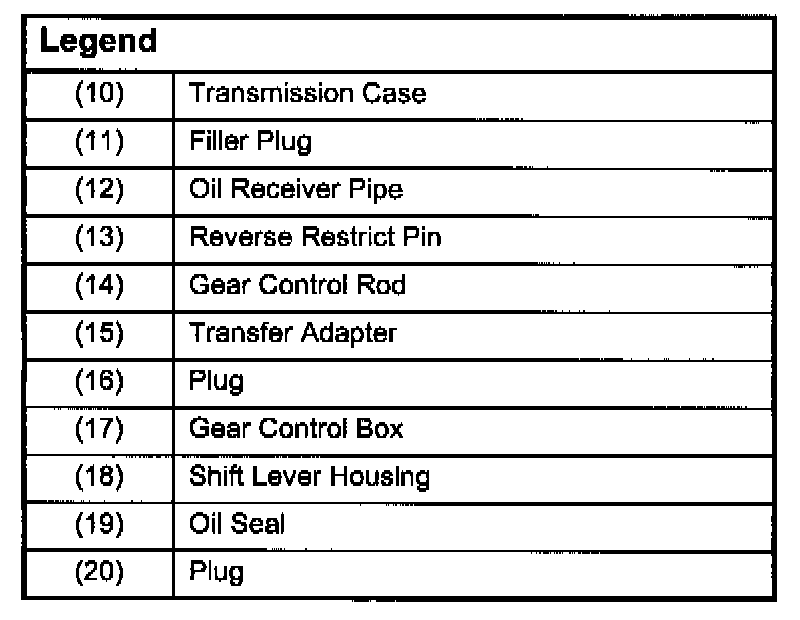

Housing:

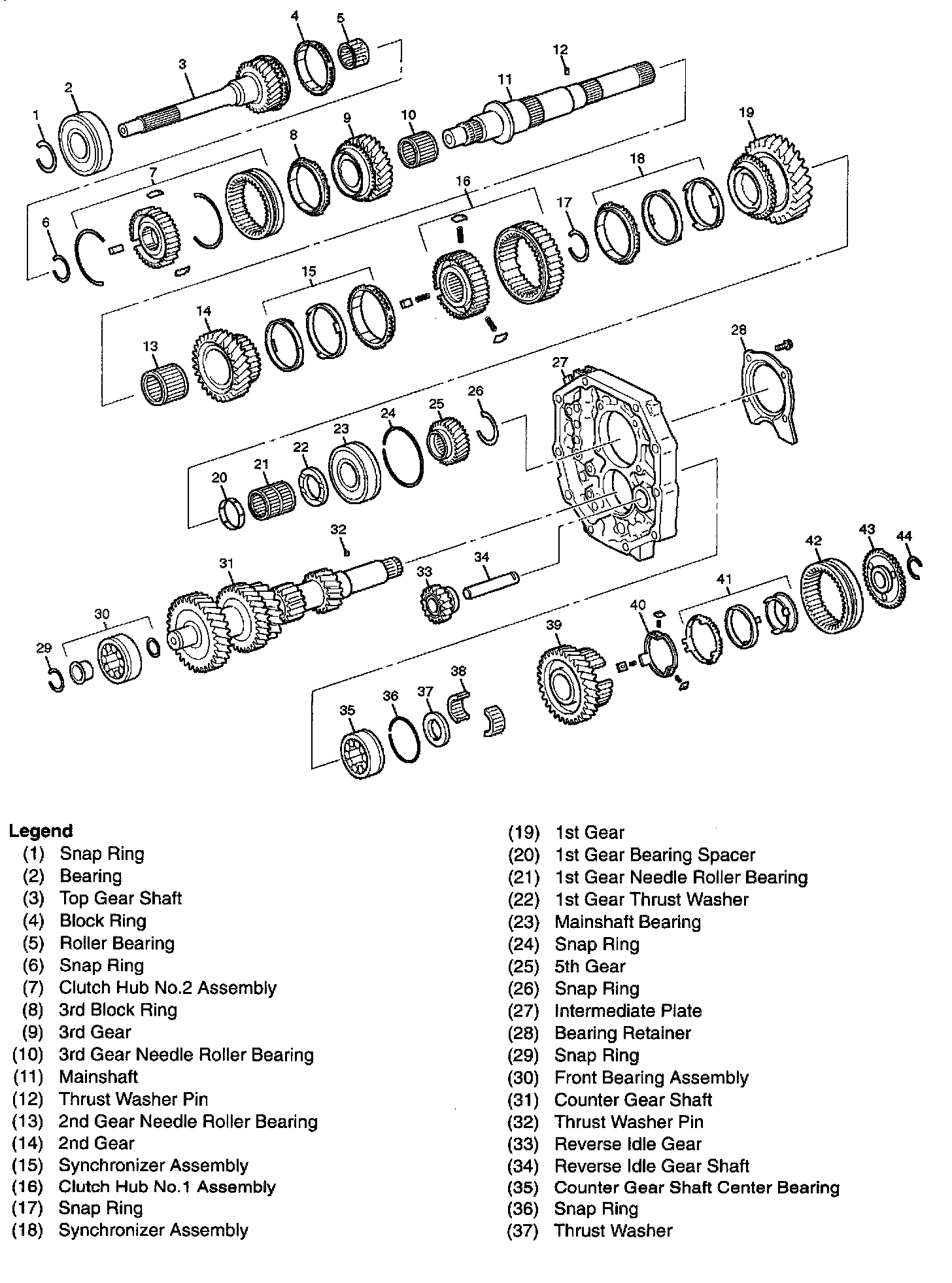

Part 5 Of 6:

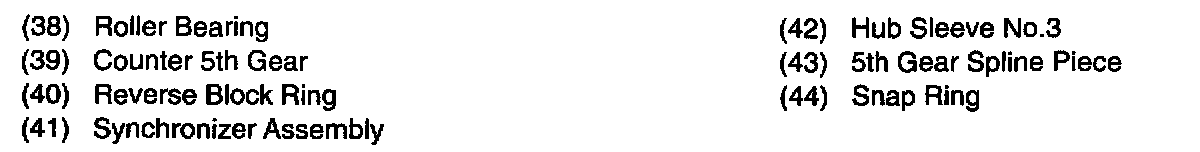

Part 6 Of 6:





DISASSEMBLED VIEWS FOR OVERHAUL PROCEDURE
