Air Conditioning Switch: Service and Repair

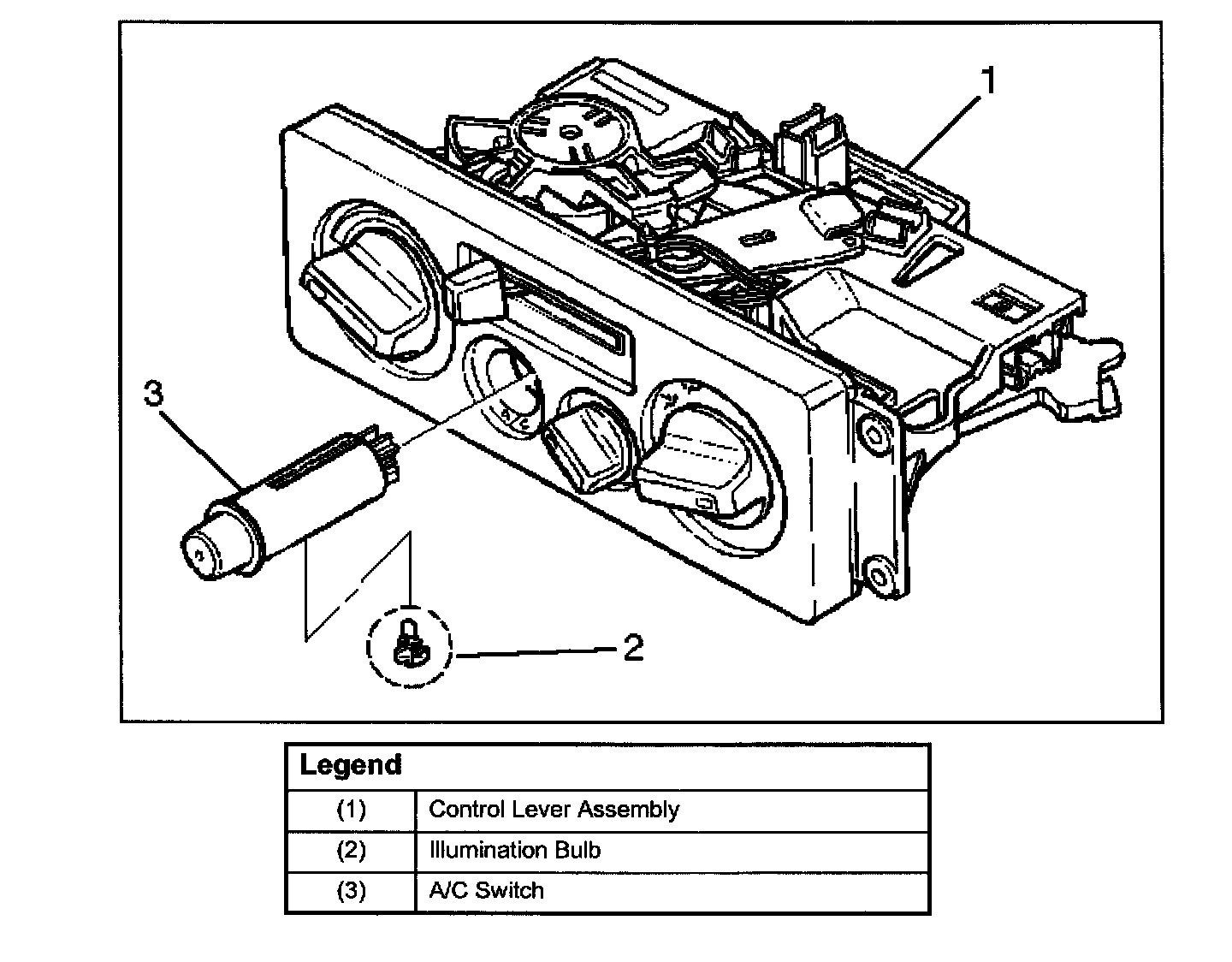

Air-conditioning Switch, Illumination Bulb And Associated Parts:

REMOVAL
1. Disconnect the battery ground cable.
2. Remove control lever assembly.




3. Lift up the catch portion (1) of the switch and remove the air conditioning switch (2) while pushing it toward the outside.
4. Turn the illumination bulb counterclockwise to remove.

INSTALLATION
To install,follow the removal steps in the reverse order.
