System Relay: Service and Repair

1. Disconnect the heater and the A/C relay (B-36).

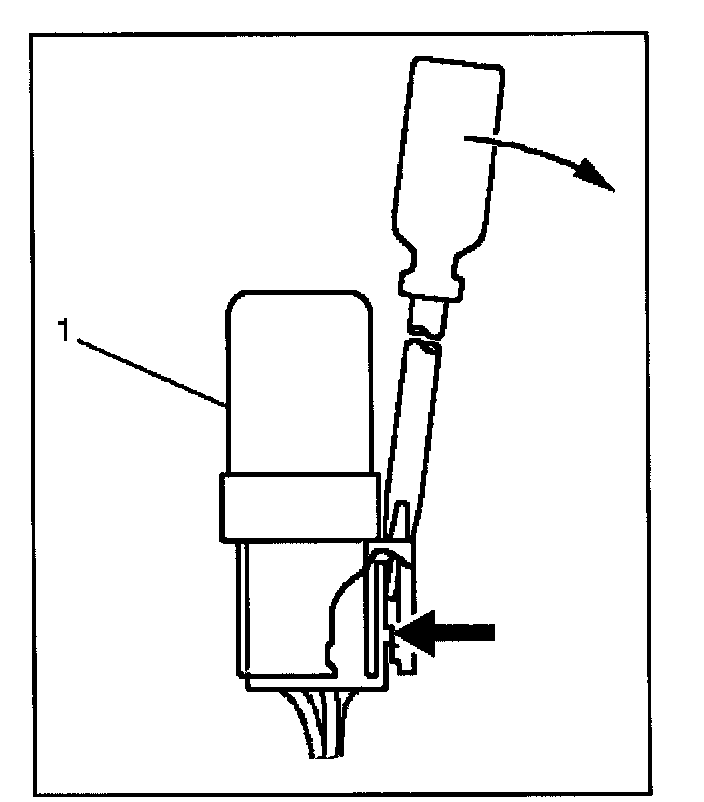

- When removing the connector for relay, unfasten the tang lock of the connector by using a screwdriver, then pull the relay (1) out.

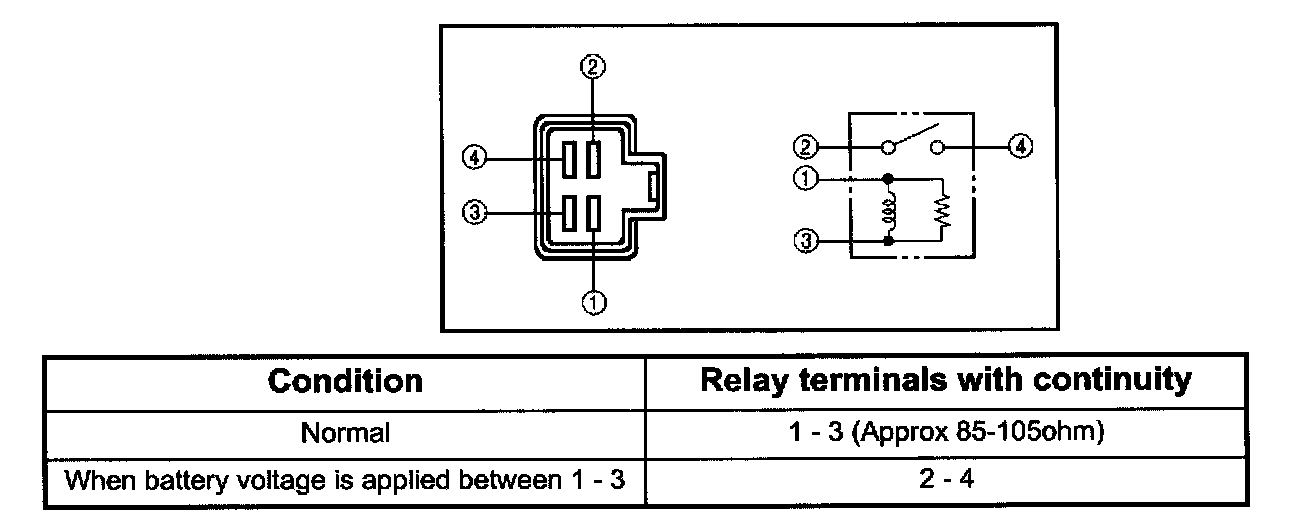

2. Check for continuity between the heater and the A/C relay (B-36) terminals.
