Front Door Assembly: Removal

  1. Disconnect the battery ground cable.
  2. Remove door check arm pin (1).

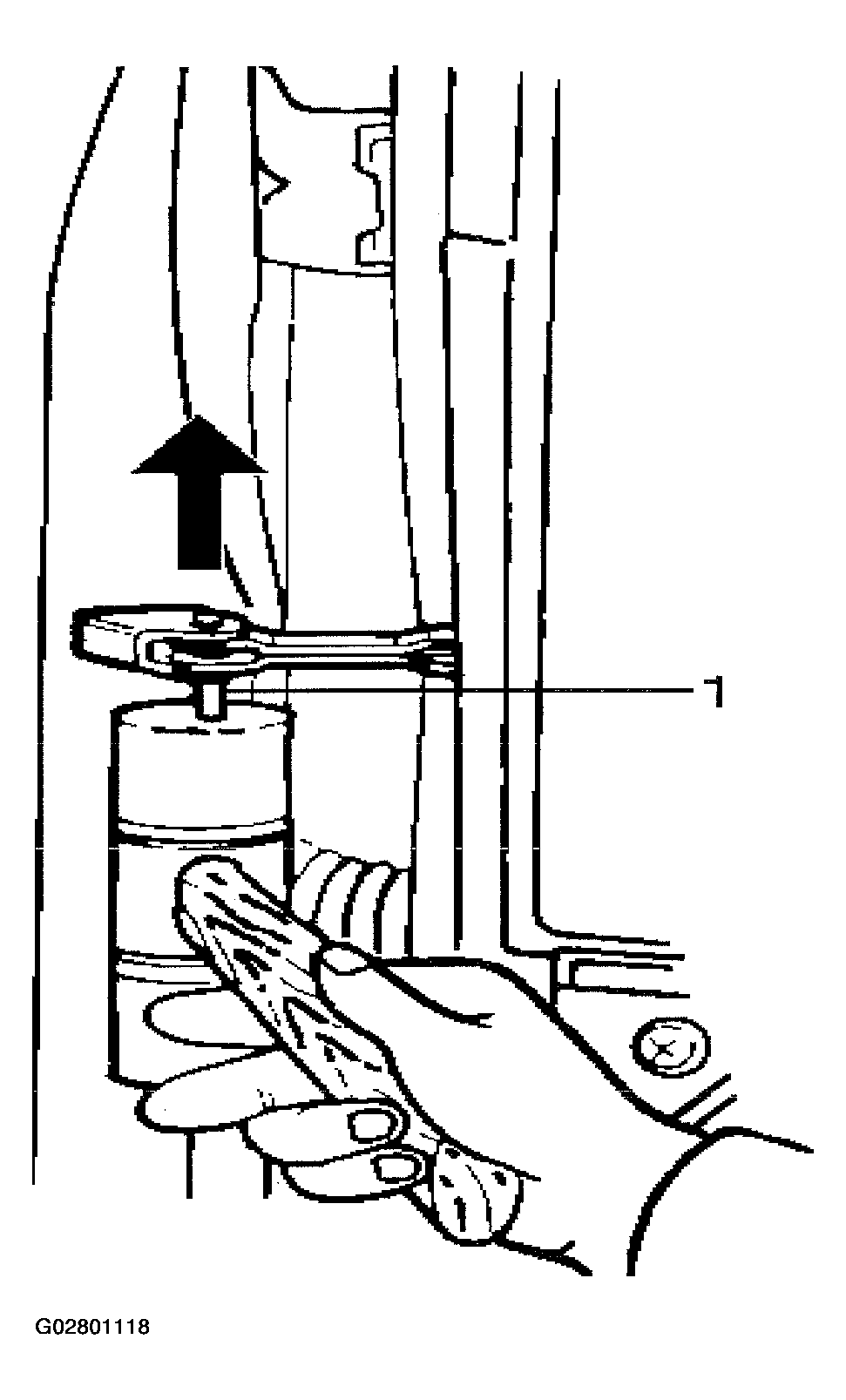

    Fig 1: Removing Door Check Arm Pin
    G02801118Courtesy of ISUZU MOTOR CO.
  3. Remove hinge bolt.
    • Align the hinge bolt to the door side hinge and put a marker on it.
  4. Remove door harness connection (2).
    • Pull the door harness grommet out in order to disconnect the harness connection.

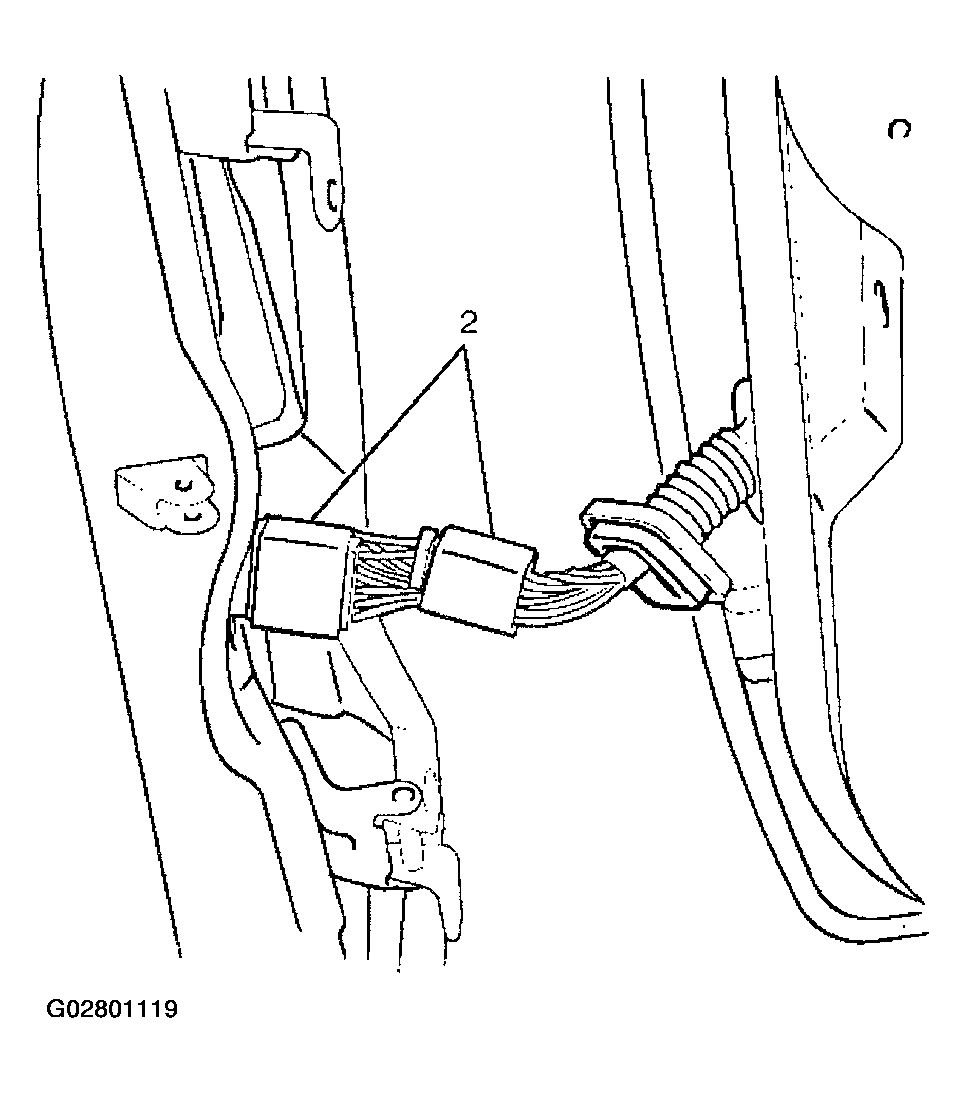

    Fig 2: Disconnecting Door Harness
    G02801119Courtesy of ISUZU MOTOR CO.
  5. Remove front door assembly.
