Body Structure: Windshield: Installation

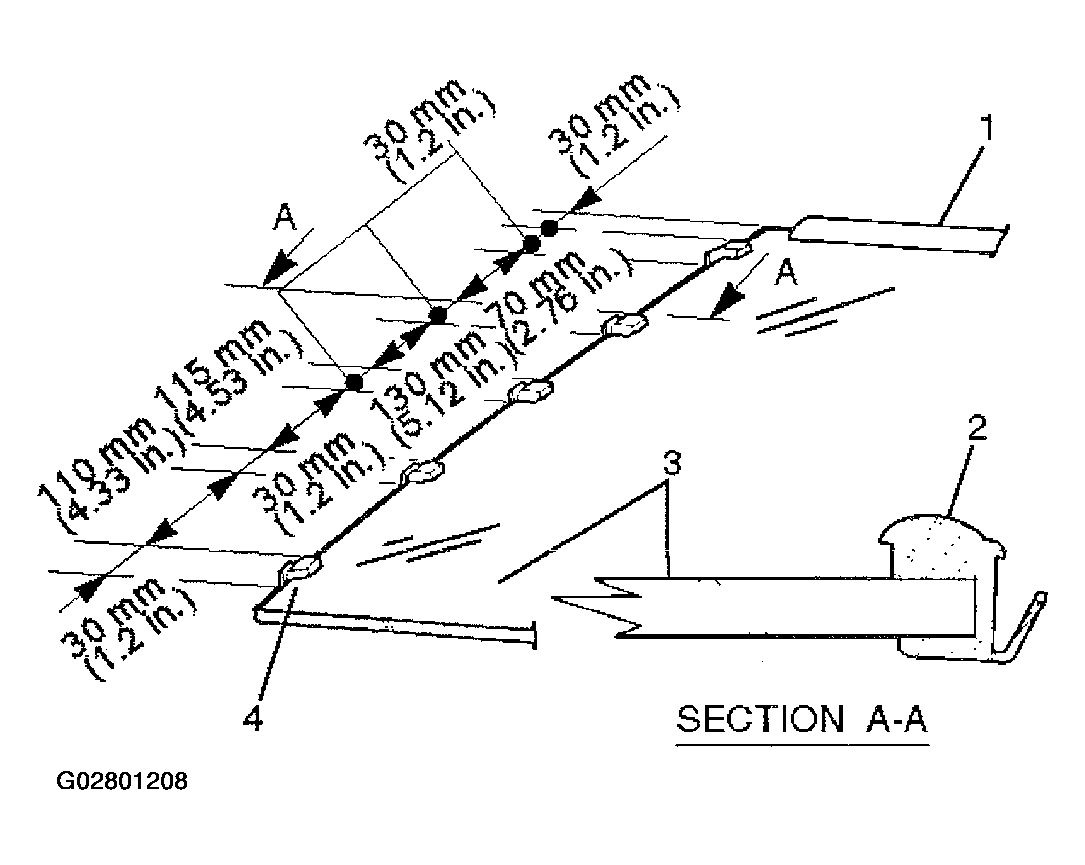

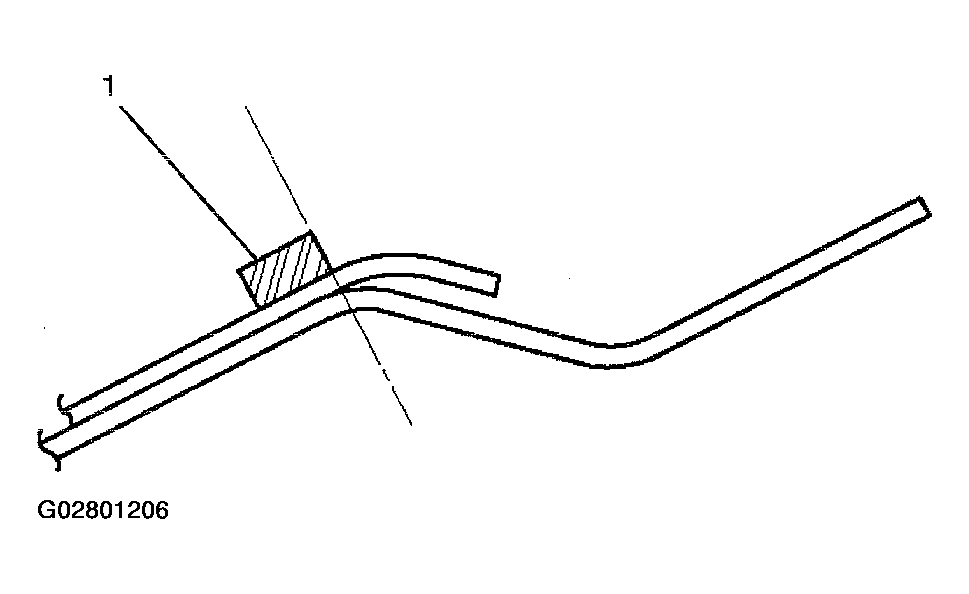

- Install the spacer (1).
- Clean the bonding surfaces of both the windshield and the body panel.
- When installing the spacers, align the lower side spacer to the R stop of the body panel and the side spacer to the end of the body panel. Be sure to always use a new spacer.
Courtesy of ISUZU MOTOR CO.

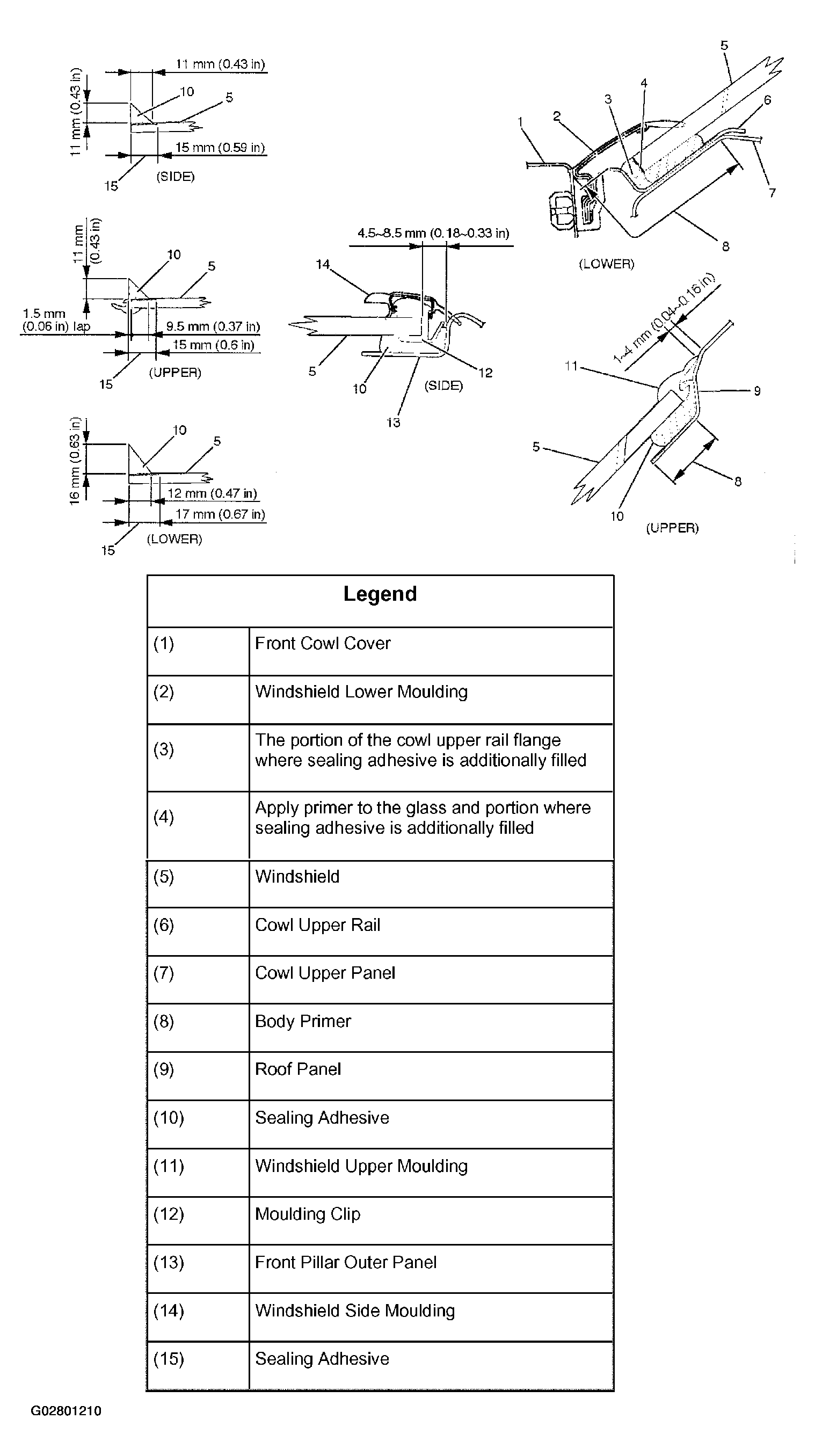

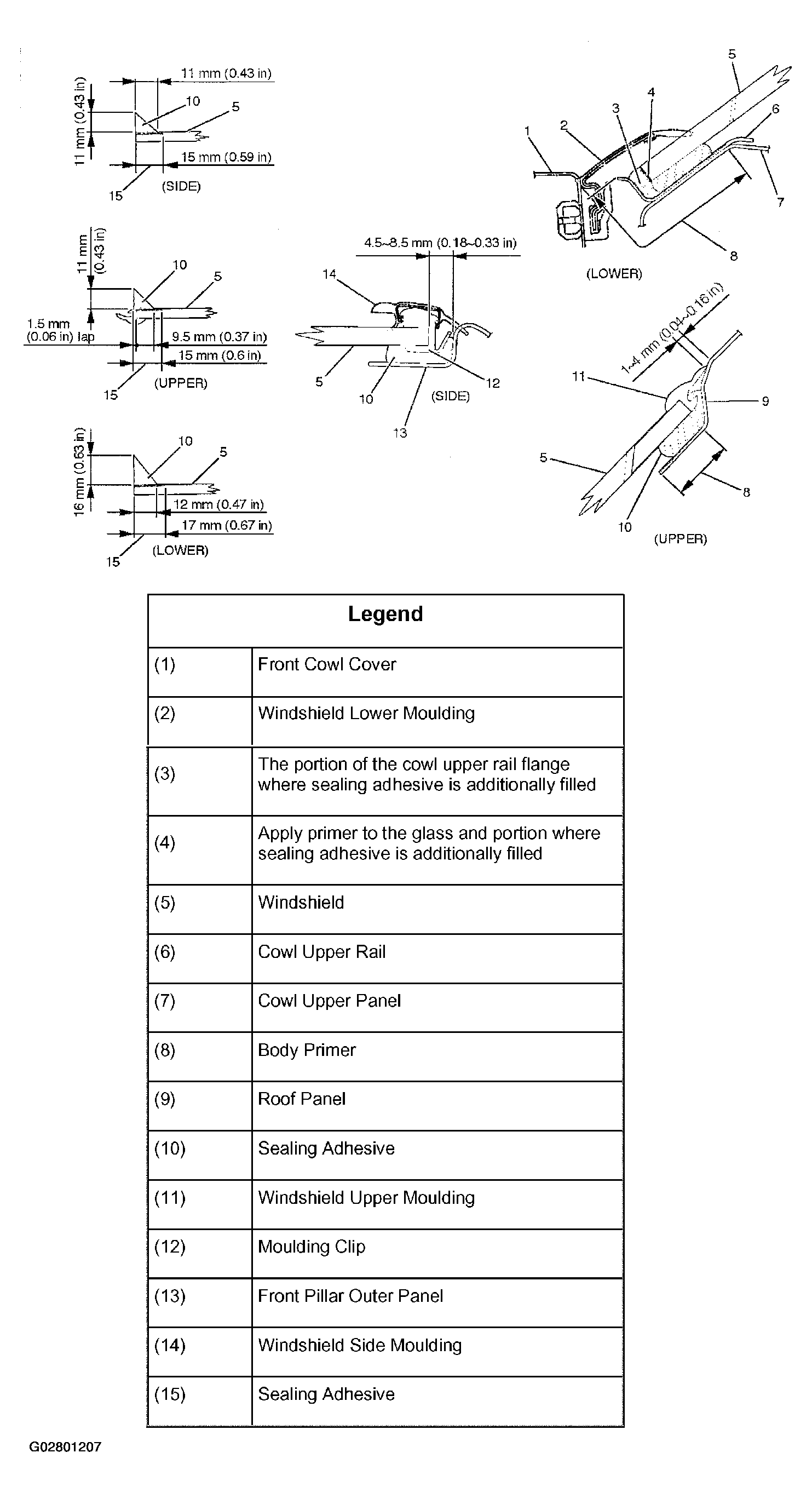

- Be absolutely sure to apply glass primer and body primer to the body panel as shown in the illustration.
Courtesy of ISUZU MOTOR CO.

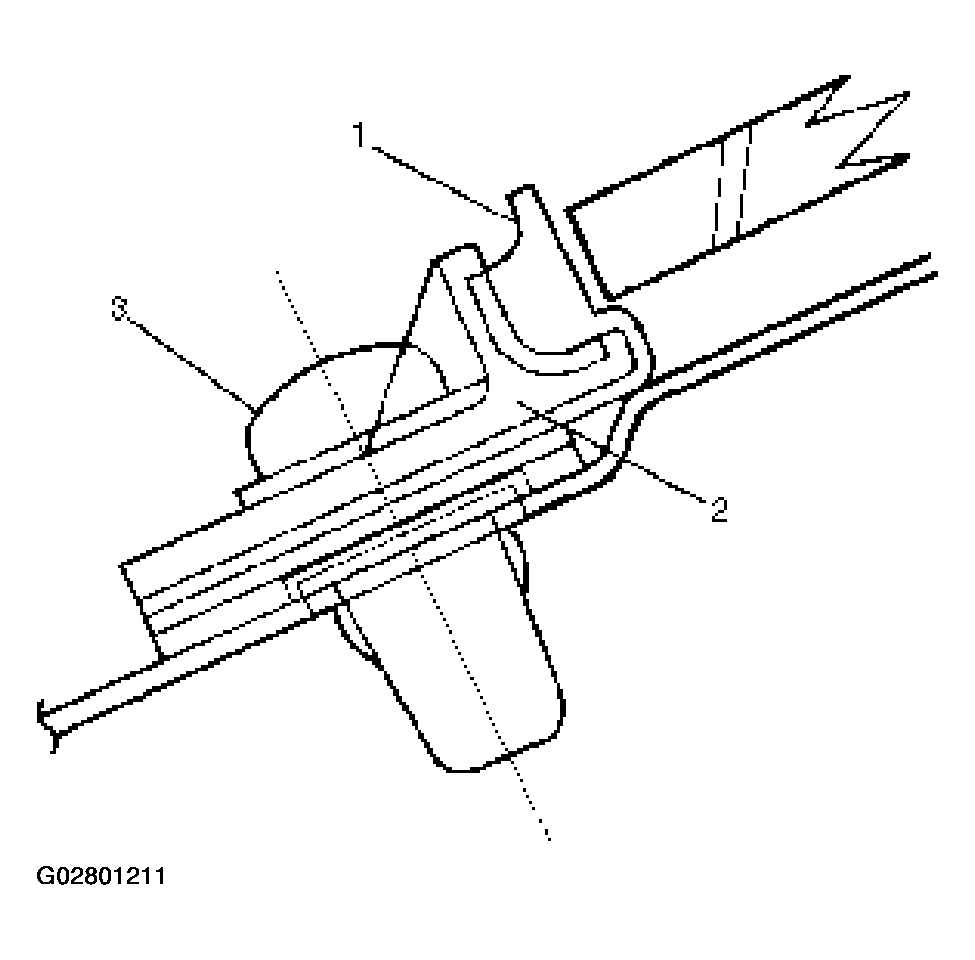

- Install the moulding clip (2).
- Install new moulding clips to the fixed position of the windshield (3).
- Always use new moulding clips (4).
Courtesy of ISUZU MOTOR CO.

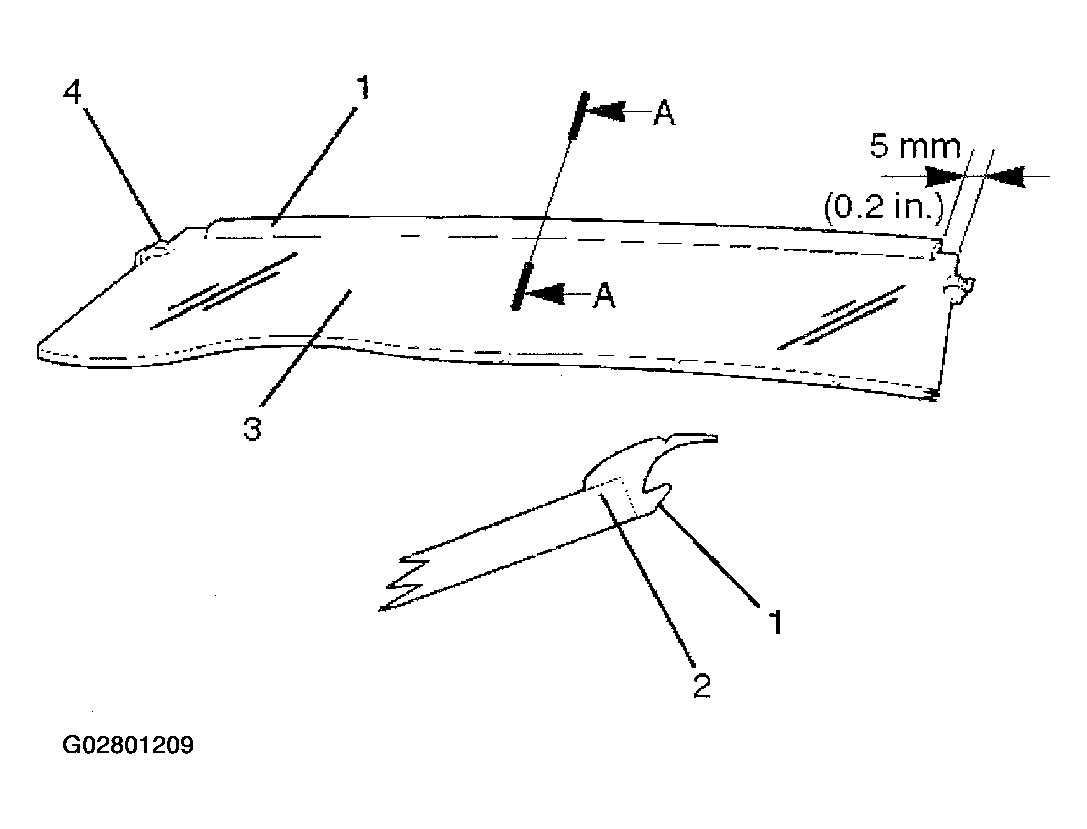

- Install the windshield upper moulding (1).
- Peel off the adhesive tape (2) and install the moulding to the fixed position of the windshield (3).
- Always use new upper moulding (1).
Courtesy of ISUZU MOTOR CO.
- Install the windshield.
Courtesy of ISUZU MOTOR CO.

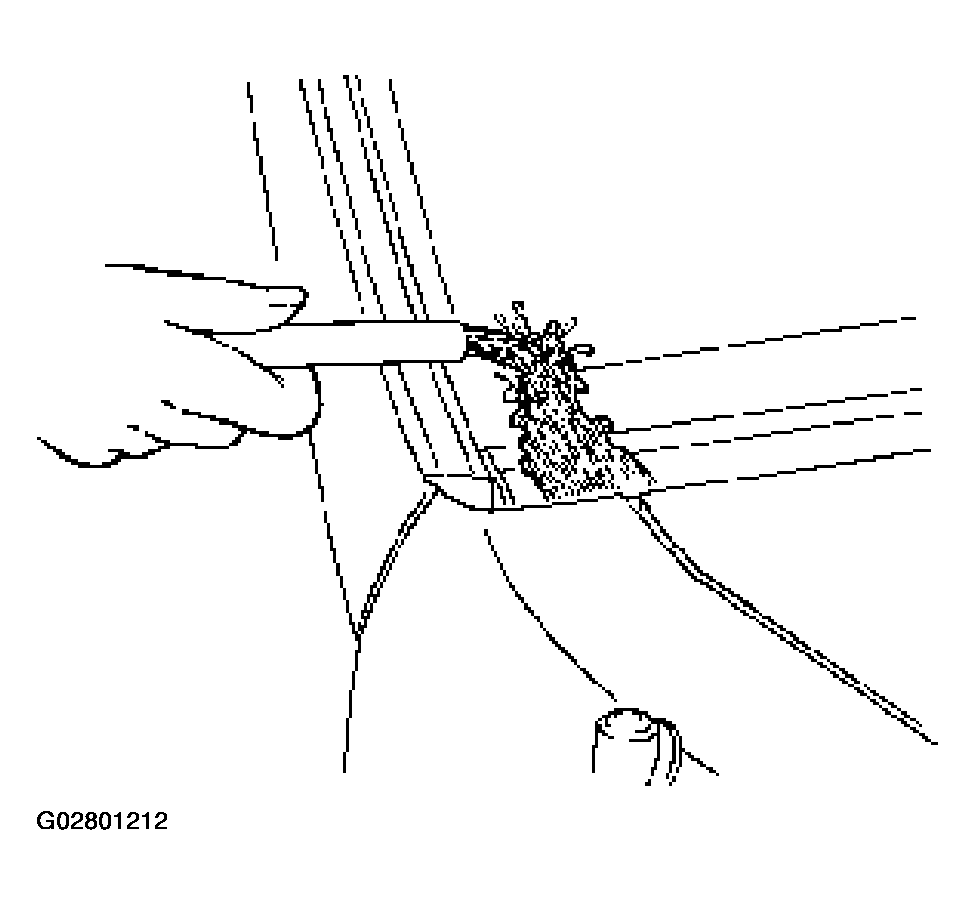

- Install the windshield side seal.
- Install the windshield support (2).
Courtesy of ISUZU MOTOR CO.

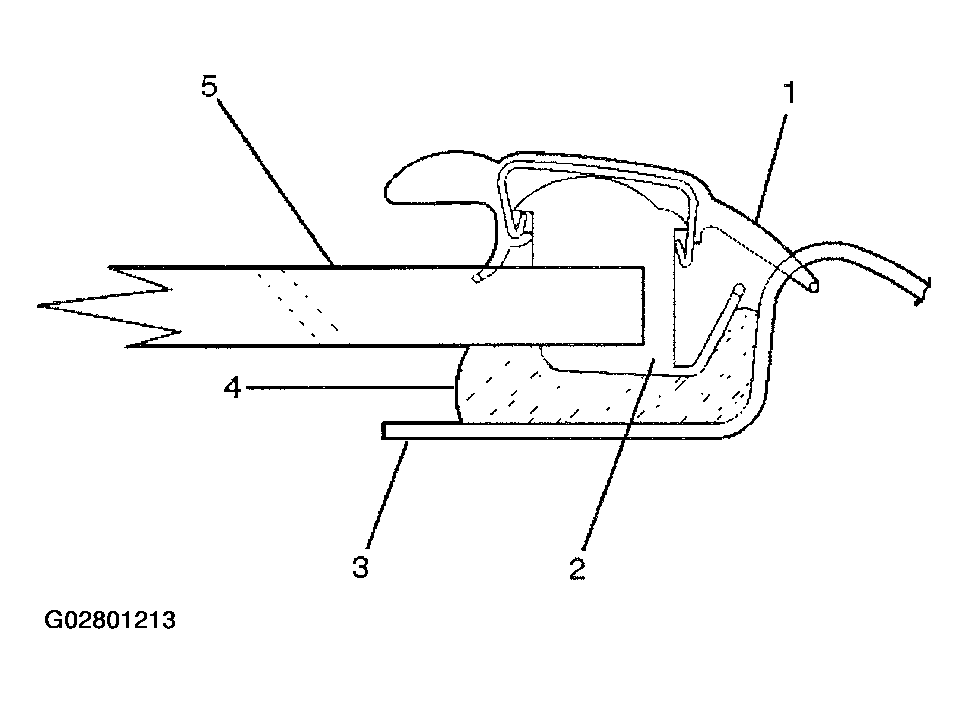

- Apply a sealing adhesive (4) to the circumference of the windshield (5).
- Apply the sealing adhesive to the
fringe portion of the cowl upper rail.
- Adjust the gap clearance of the windshield (5).
- Install the windshield to the body panel by applying pressure to the windshield.
- Cure the adhesive at a temperature of 20-30 °C (68-86 °F) for 24 hours.
- Check that the windshield does not leak water.
Courtesy of ISUZU MOTOR CO.
- Install the windshield side moulding.
- Insert the windshield (5) side moulding (1) into the moulding clip (2).
Courtesy of ISUZU MOTOR CO.
- Take care not to damage the side moulding when you install it.
- Install the front cowl cover.
- Install the windshield wiper.
