Lighting

Lighting Switch Details Index:

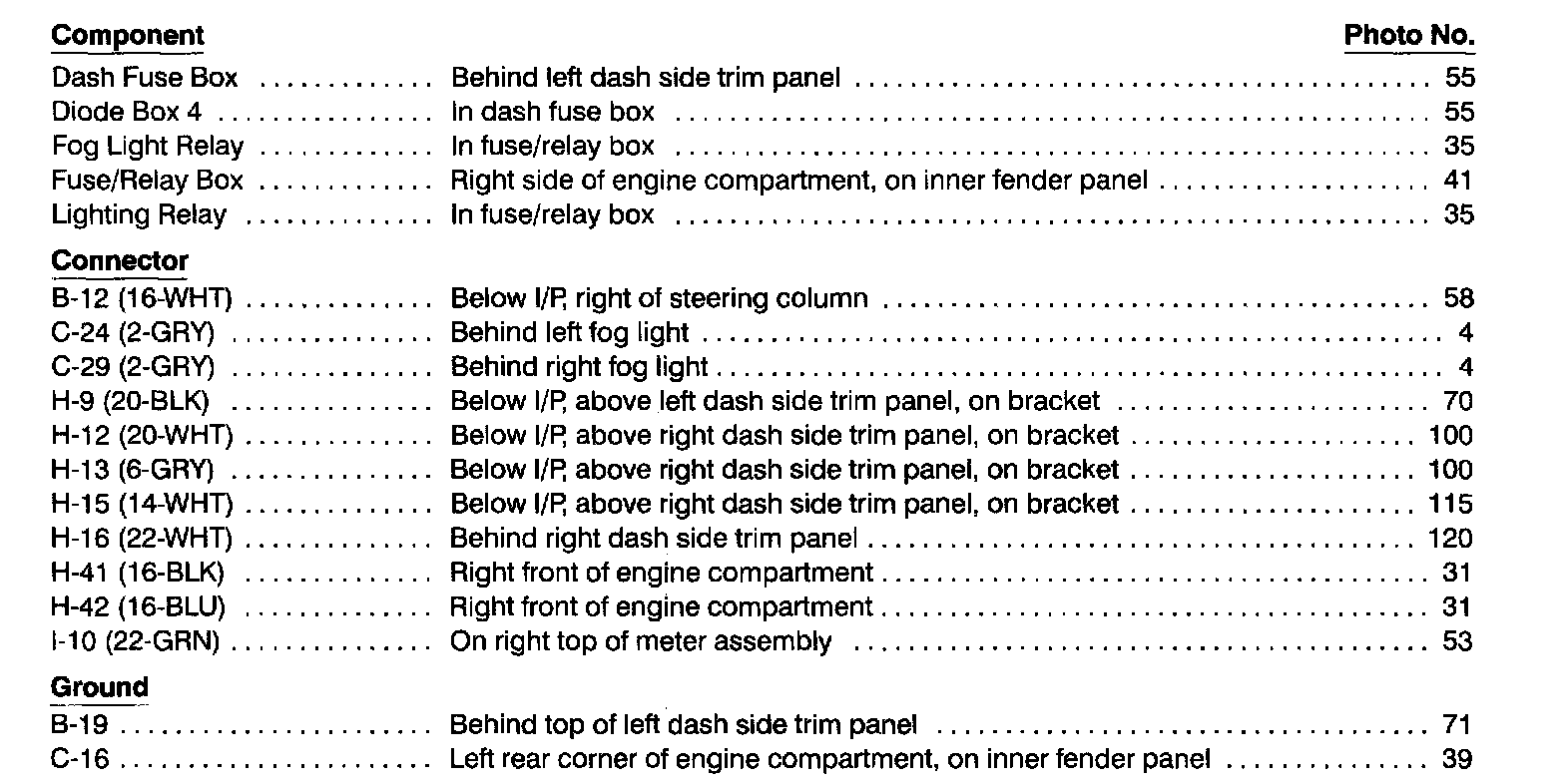

Headlights & Fog Lights Index:

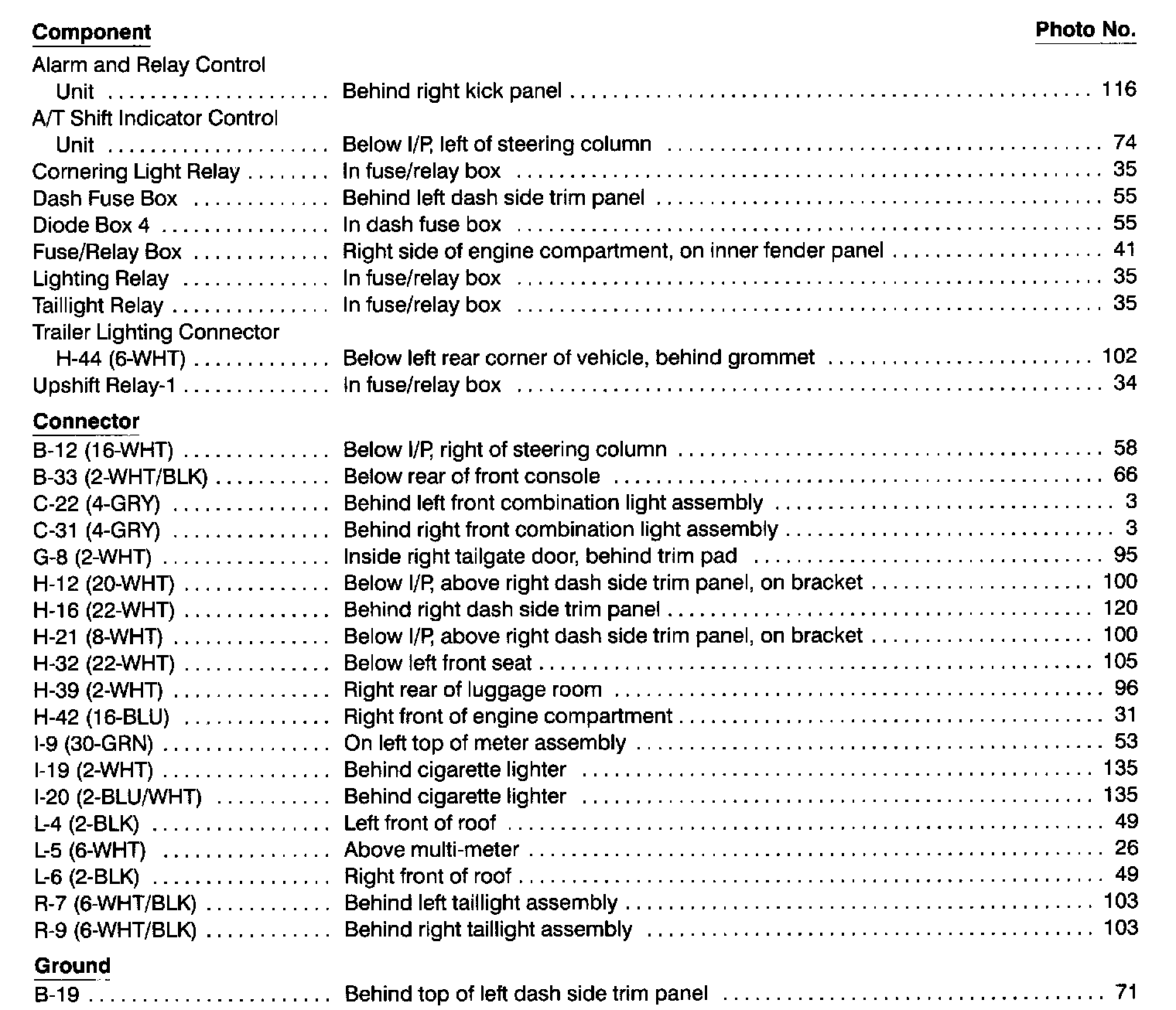

Front Side Marker, Front/Rear Park, & License Plate Lights Index:

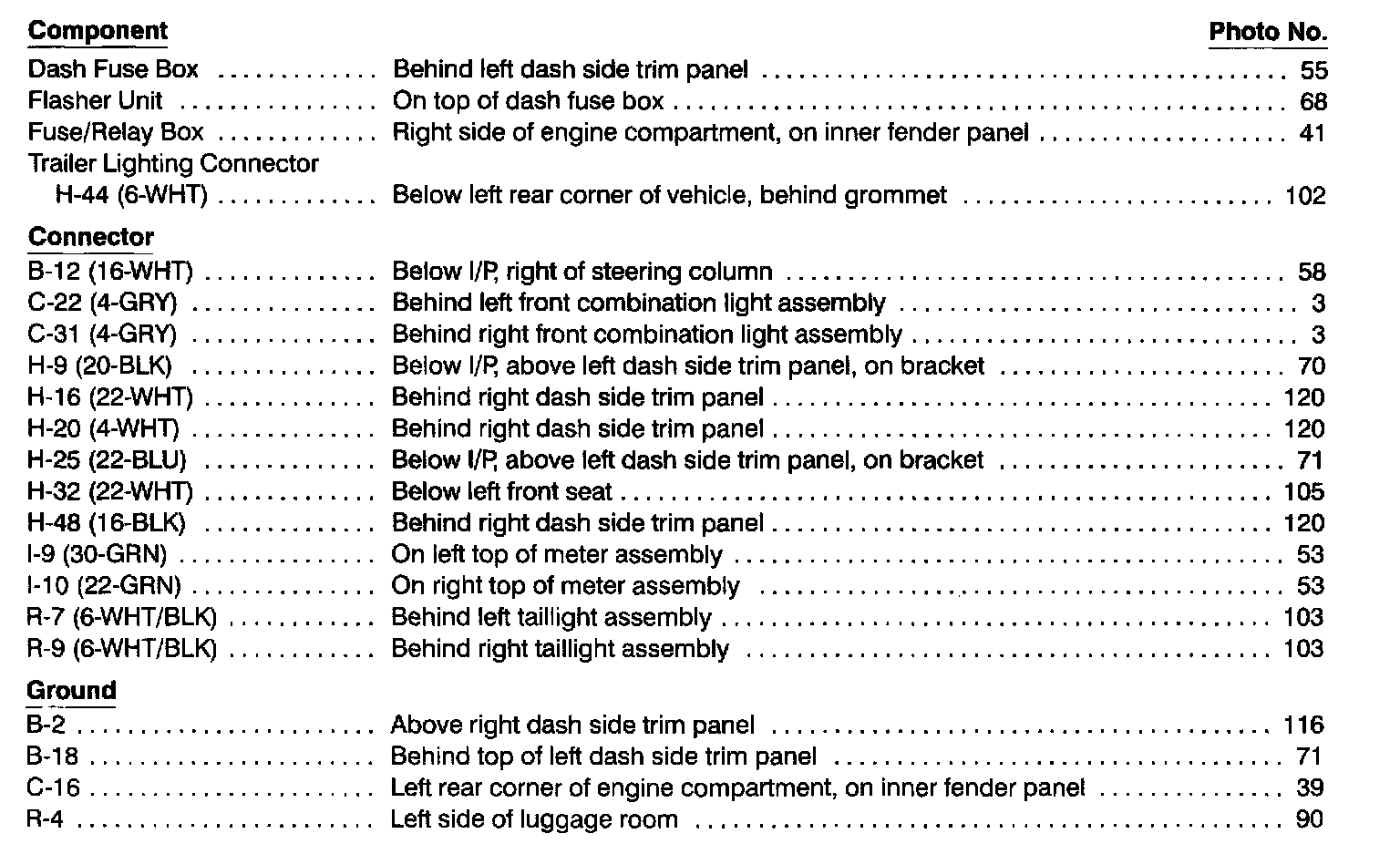

Turn & Hazard Lights Index:

Brake Lights Index:

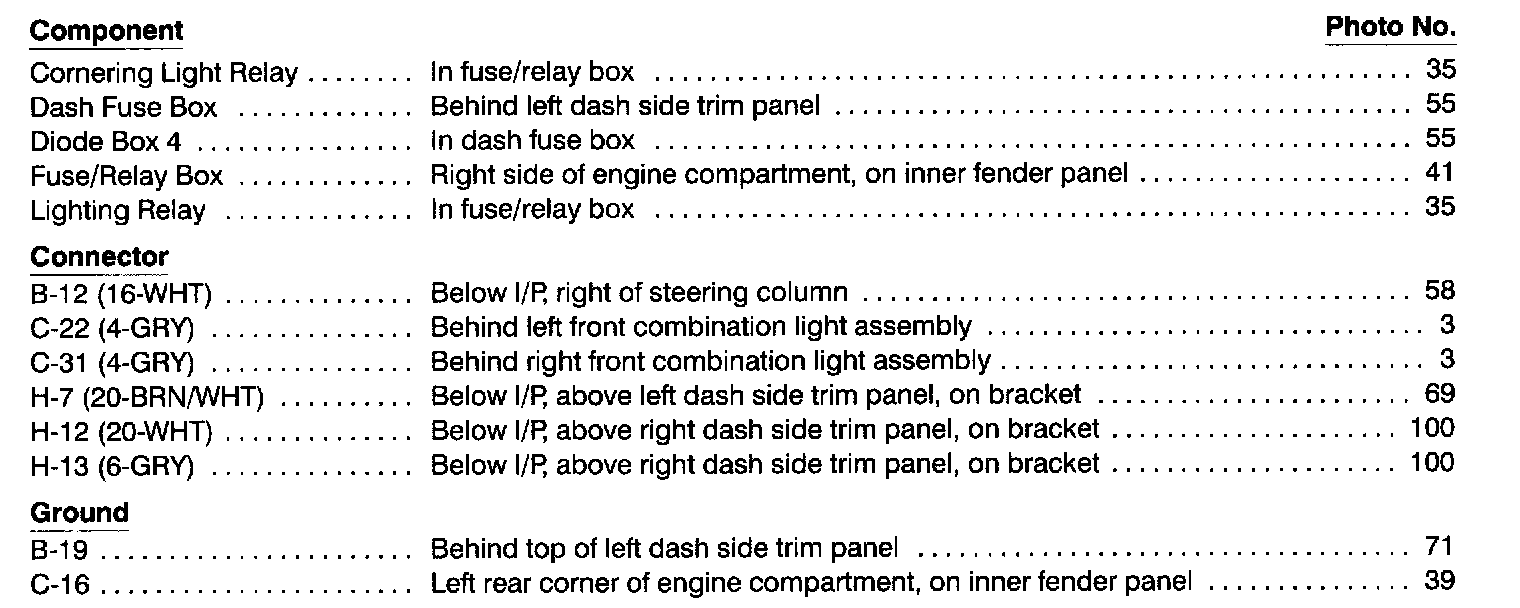

Cornering Lights Index:

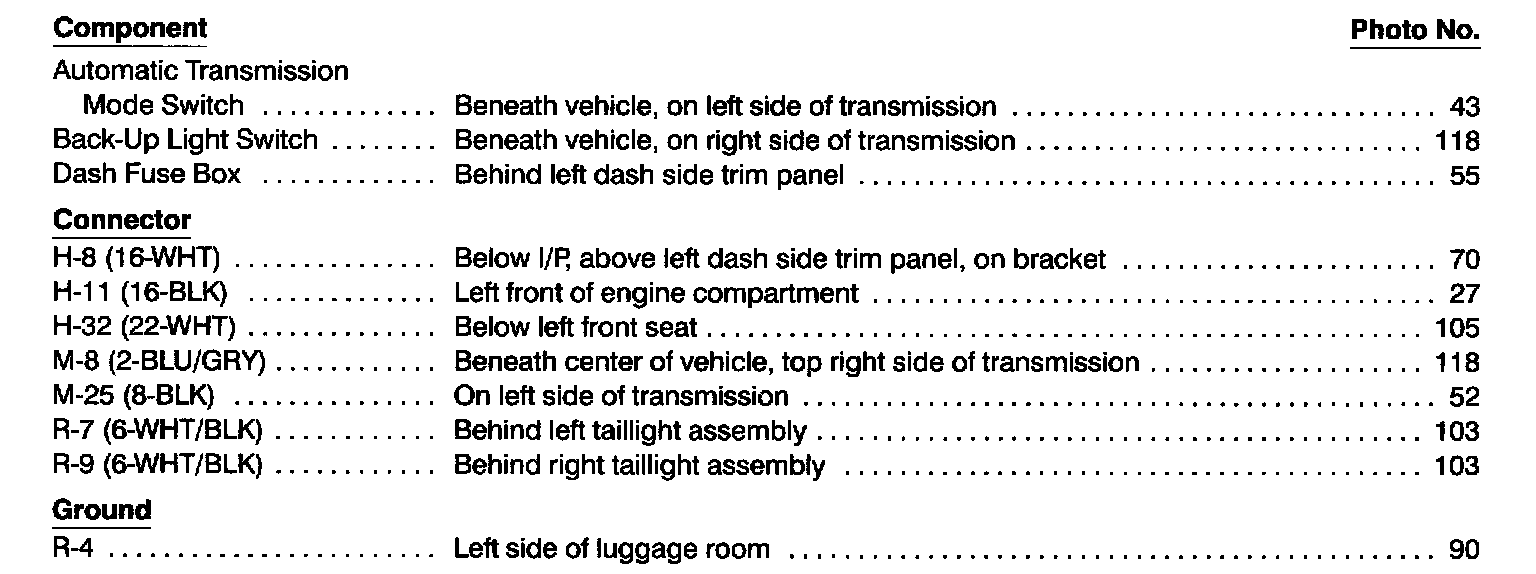

Back-Up Lights Index:

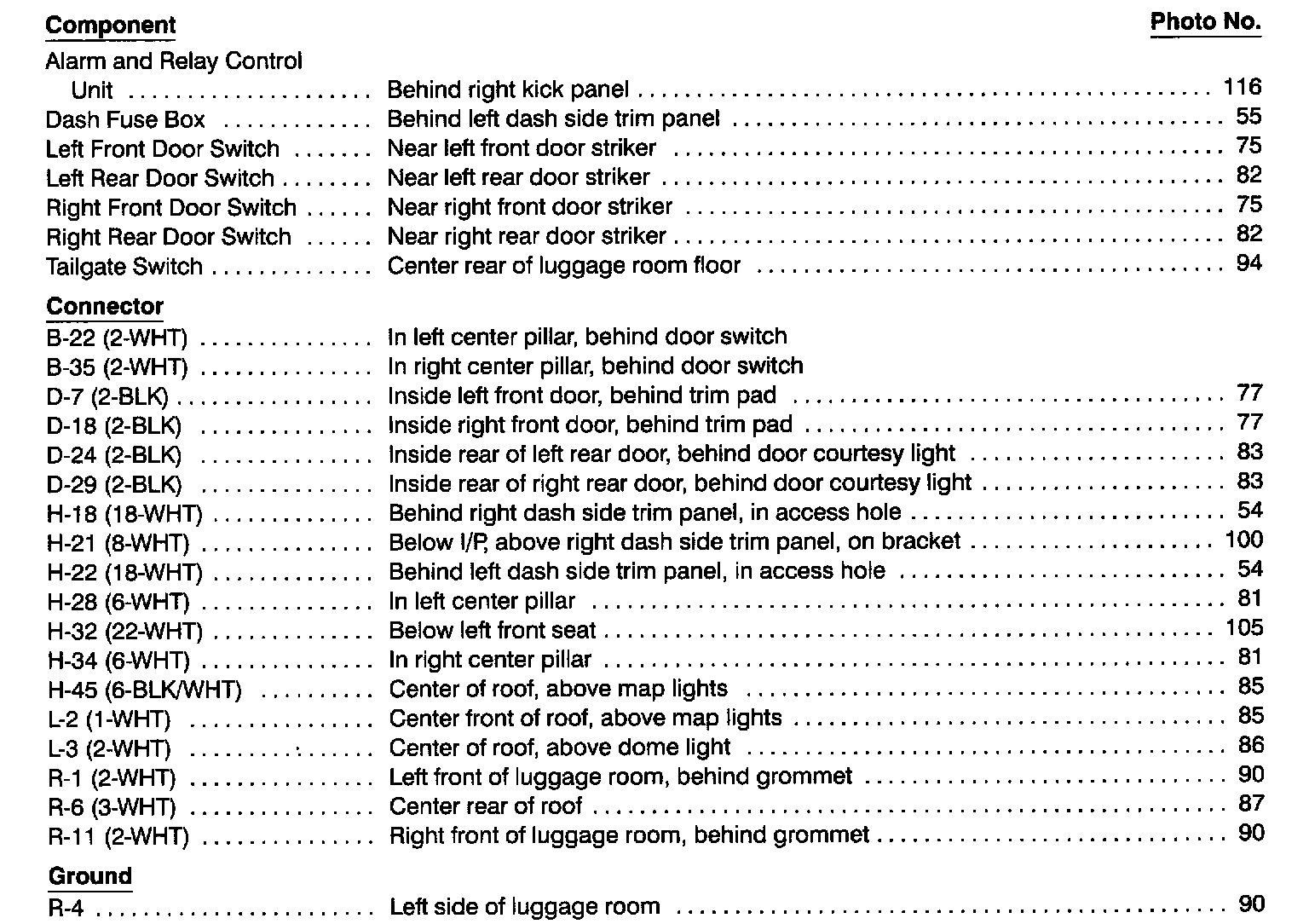

Dome, Luggage Room, Courtesy, & Map Lamps Index:

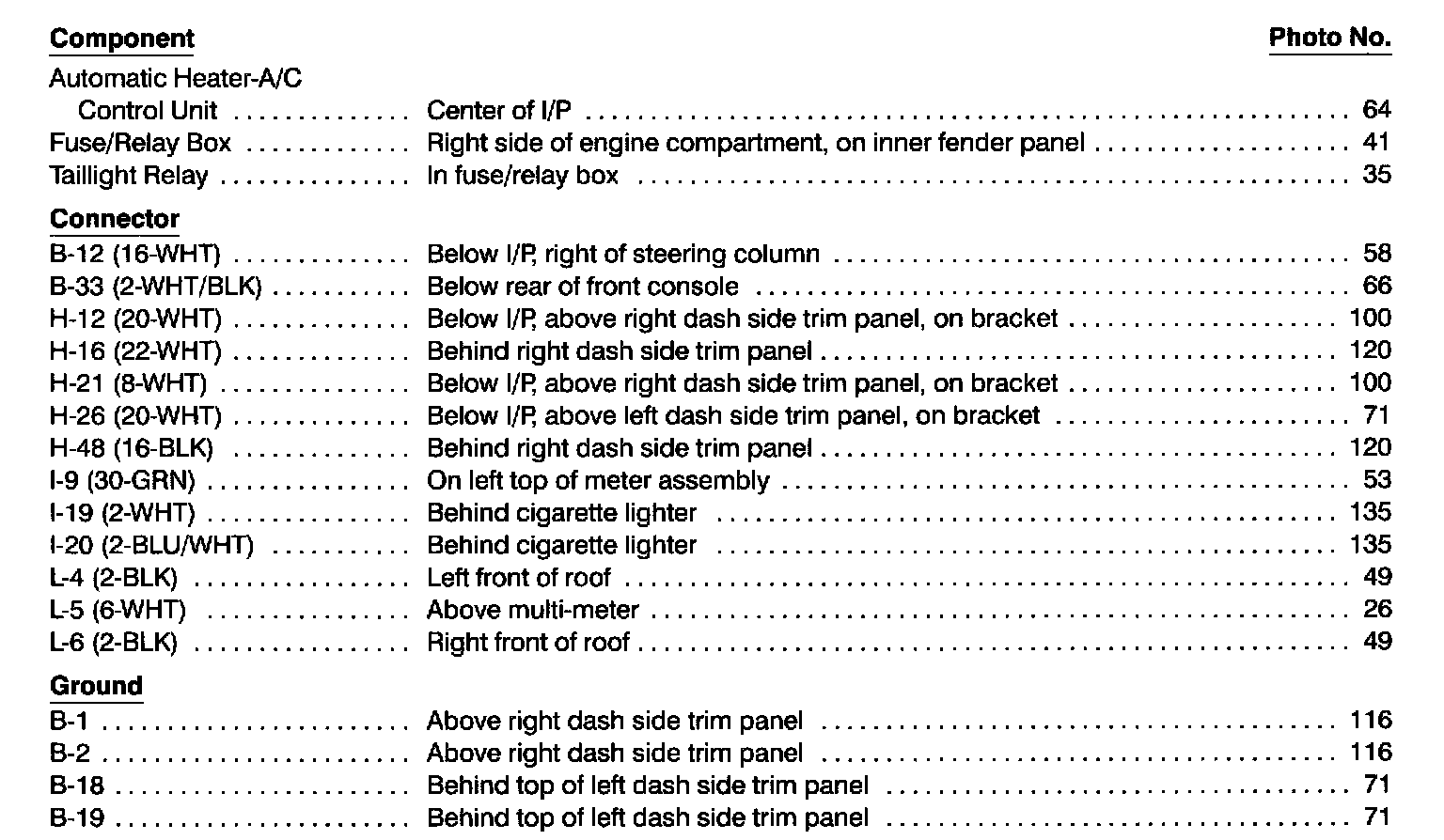

Dash & Console Lights Index:
