Wiper Control Module: Service and Repair

Removal
1. Disconnect the battery ground cable.
2. Remove the glove box.
3. Remove the instrument panel driver lower cover assembly.
4. Remove the driver knee bolster reinforcement assembly.

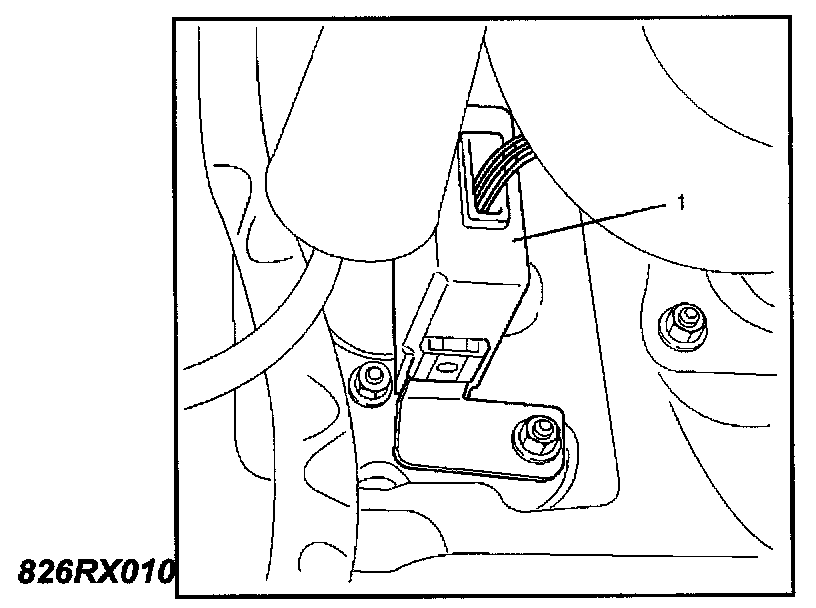

5. Remove the fixing two bolts, disconnect the connectors and then remove the alarm & relay control unit (1).

Installation
To install, follow the removal steps in the reverse order.
