Floor Jack

Using floor jack or hoist, lift vehicle at points indicated by shaded areas on frame. See Fig 2 and Fig 1 .

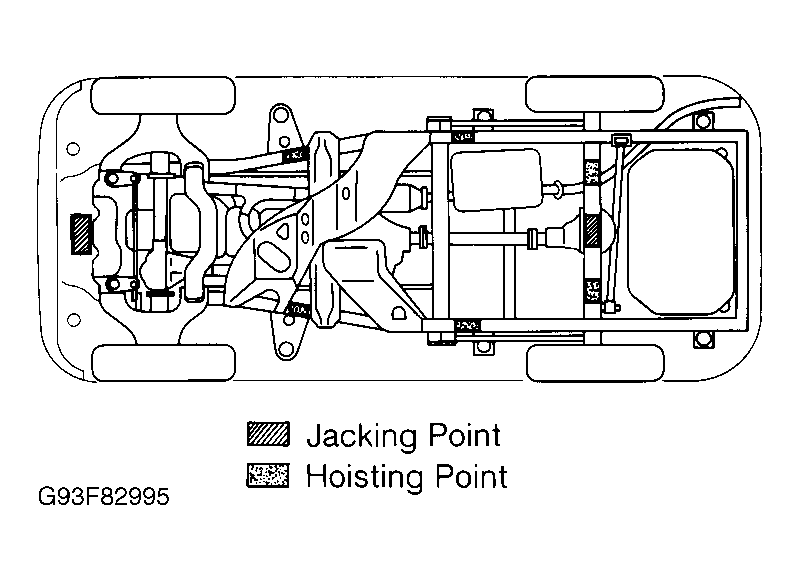

Fig 1: Identifying Jacking & Hoisting Points (Except Hombre)

Courtesy of ISUZU MOTOR CO.

Fig 2: Identifying Jacking & Hoisting Points (Hombre)

Courtesy of ISUZU MOTOR CO.
