Component Location Index

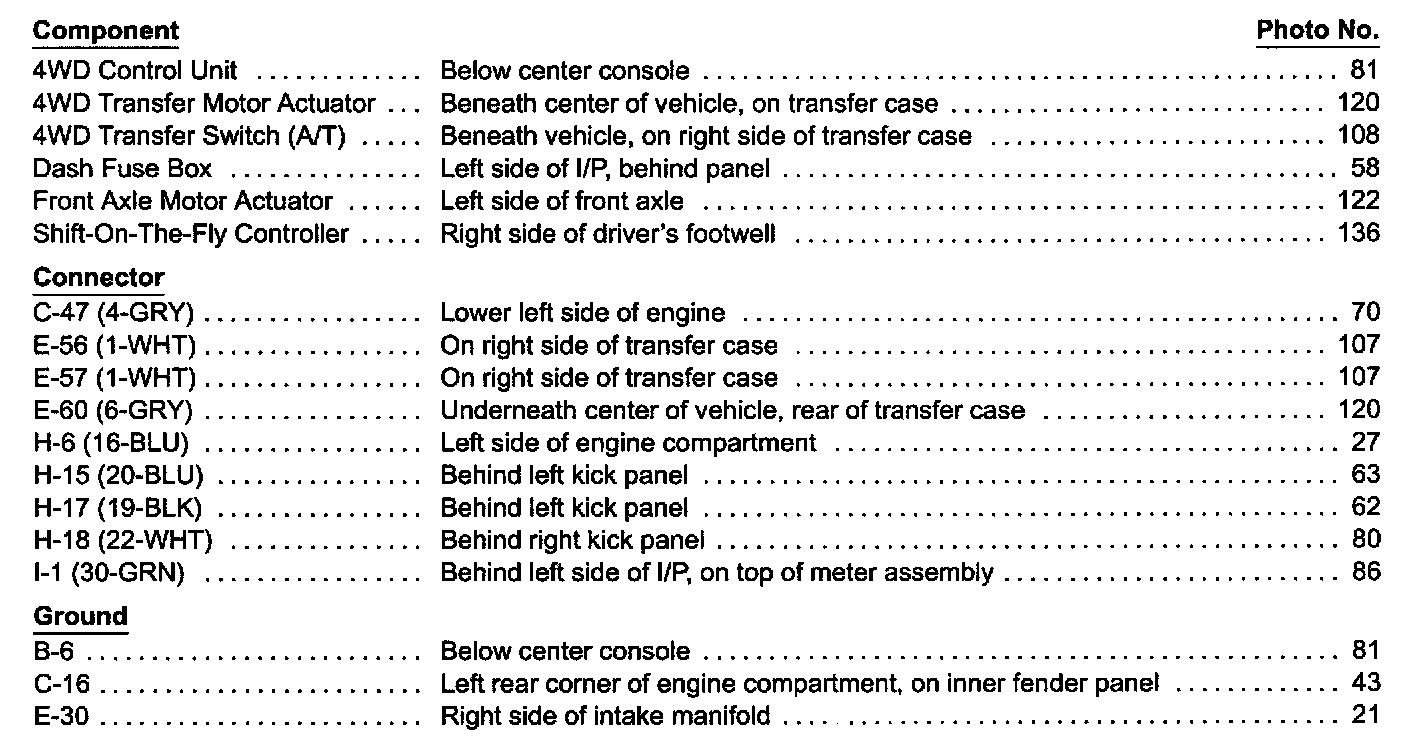

Shift-On-The-Fly System Index:

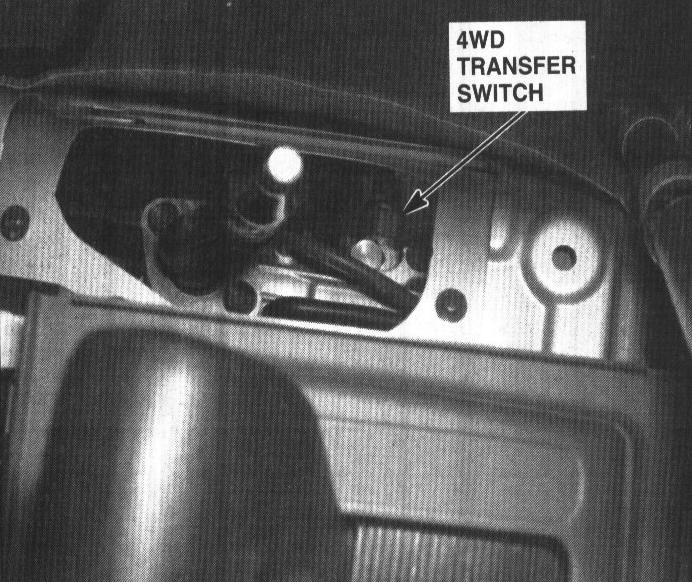

108 - Right Side Of Transfer Case:






Component location Index photographs can be found at Diagnosis and Repair/Locations/Components.
