DTC P0723 Automatic Transmission Output Speed Sensor (OSS) Intermittent: Notes

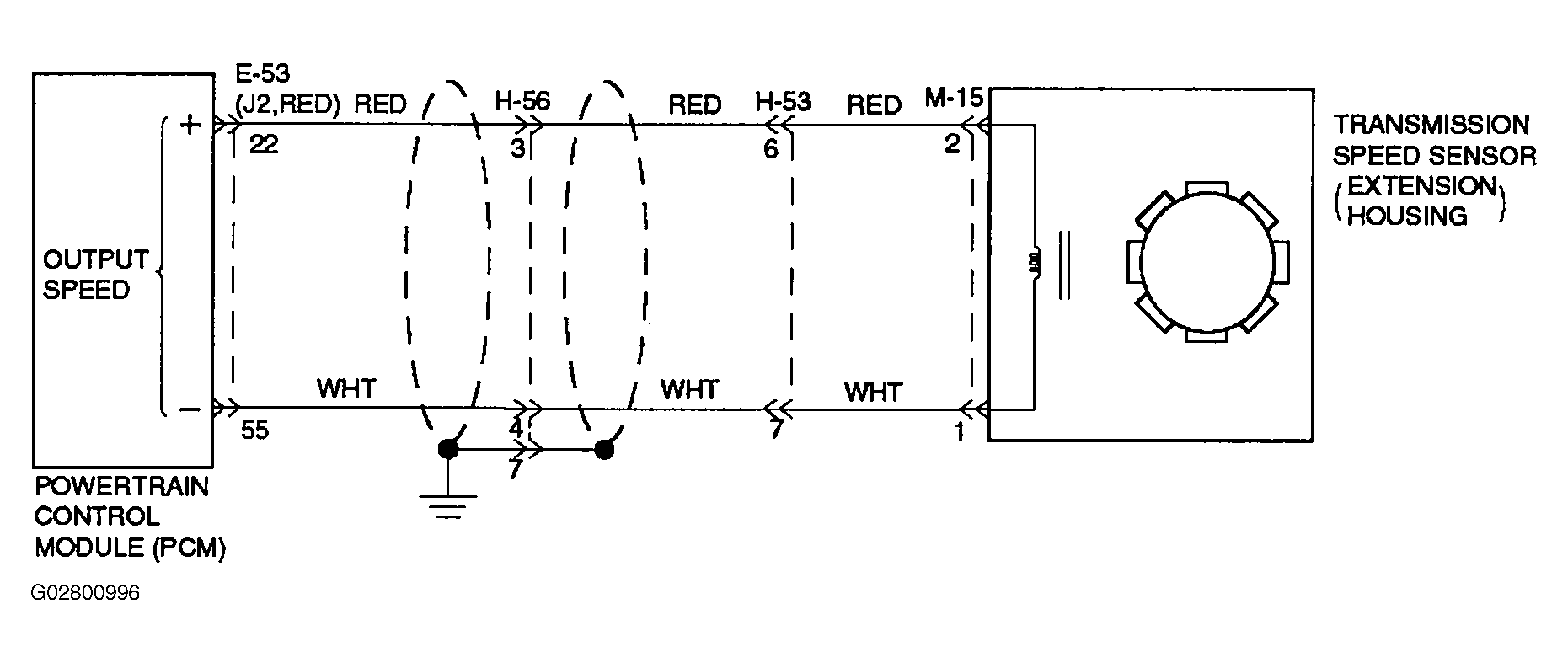

Fig 1: DTC P0723 Automatic Transmission Output Speed Sensor Intermittent Circuit Diagram
G02800996Courtesy of ISUZU MOTOR CO.
