A/T Shift Lock Solenoid and "P" Position Switch: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground terminal from battery.
Remove the console box. See CONSOLE BOX .
Disconnect the connector.
Remove the grip.
Remove the indicator cover.

Fig 1: Removing The Indicator Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the slider.
Remove the cushion.
Remove the clip and remove the "P" position switch.

Fig 2: Removing Clip & "P" Position Switch
Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp and remove the shift lock solenoid.

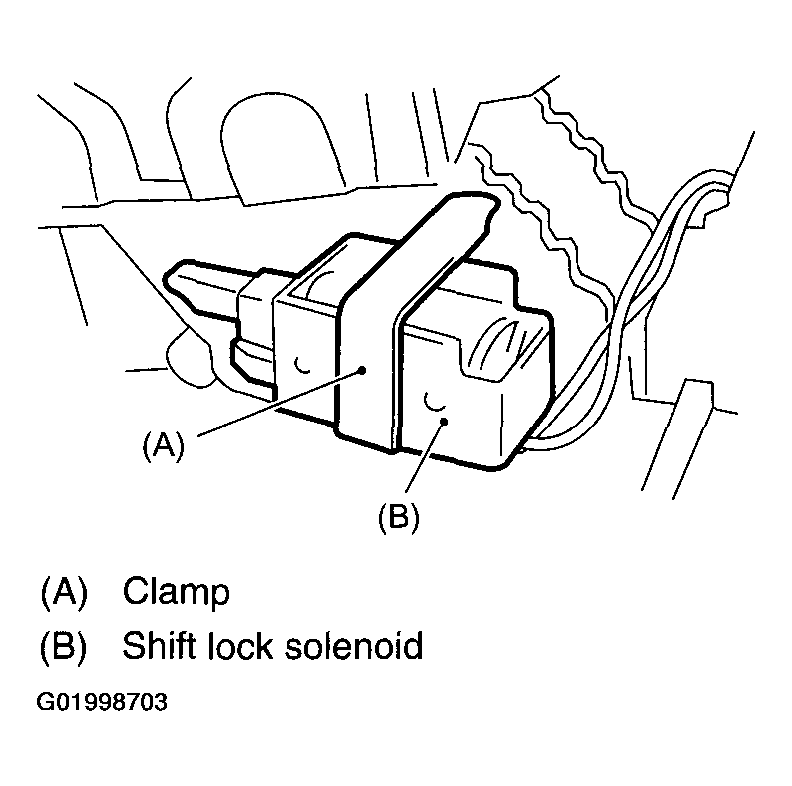

Fig 3: Removing Clamp & Shift Lock Solenoid
Courtesy of SUBARU OF AMERICA, INC.
