System Specifications

Automatic Transmission (4L30-E)

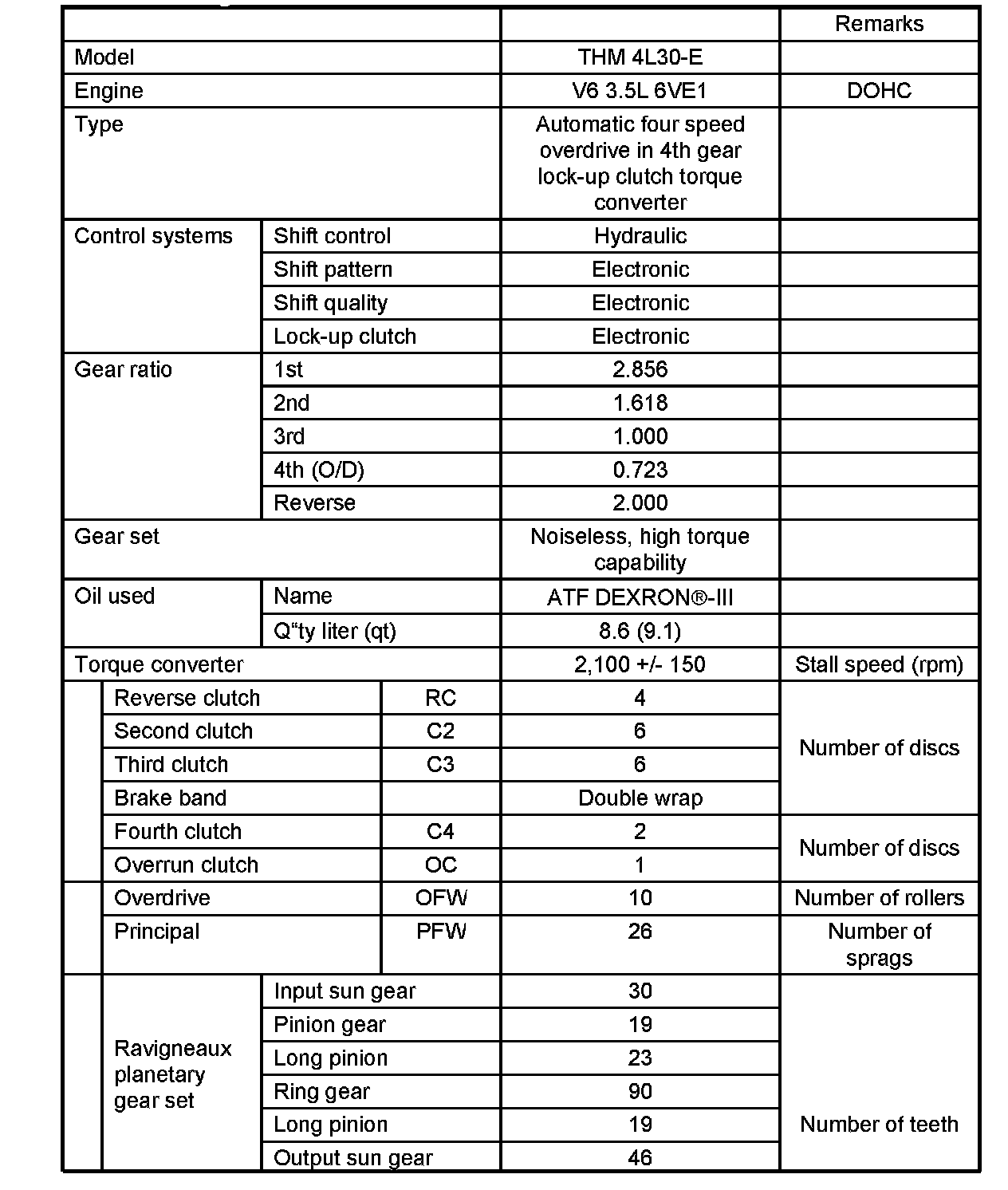

General Specifications

1 of 2

2 of 2

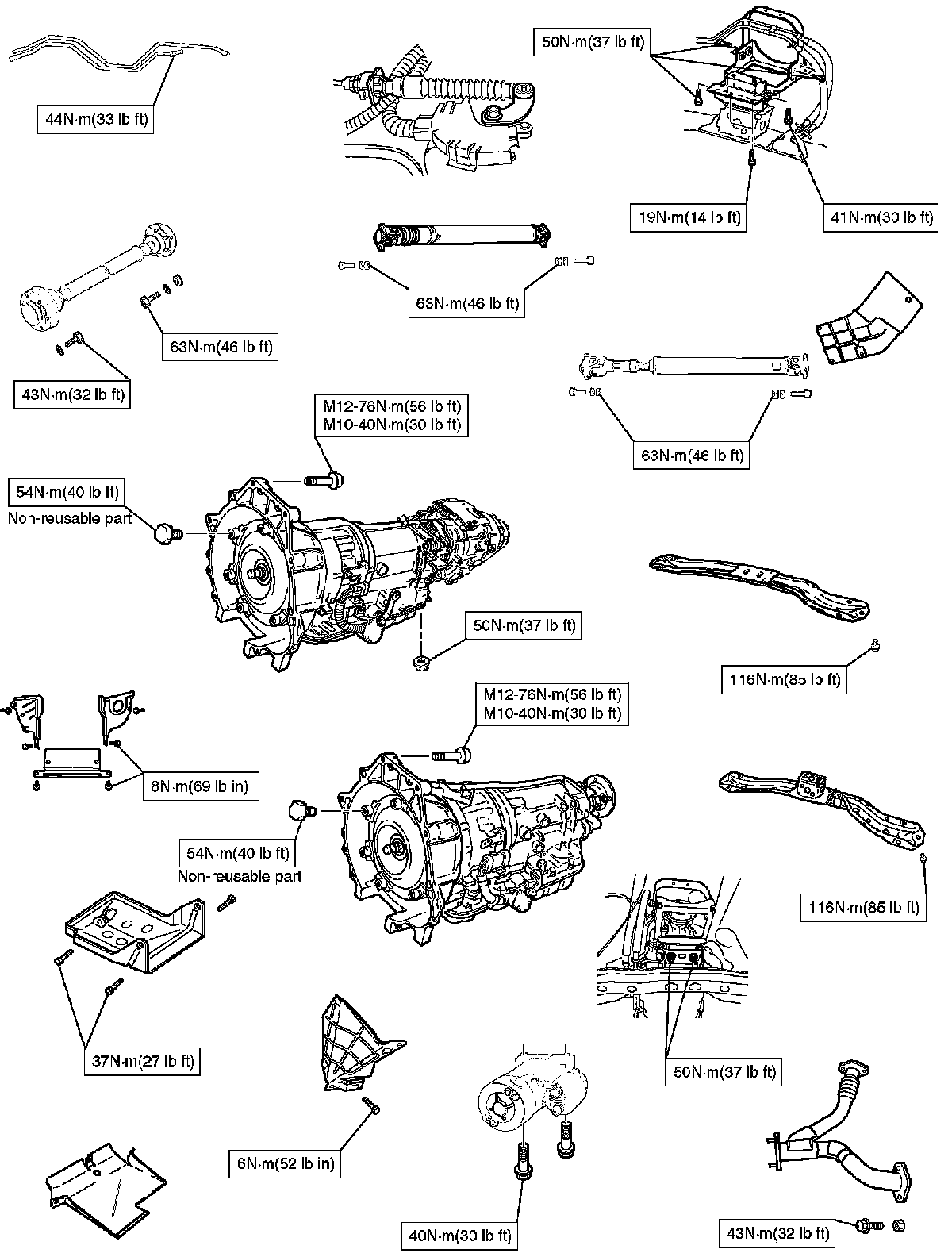

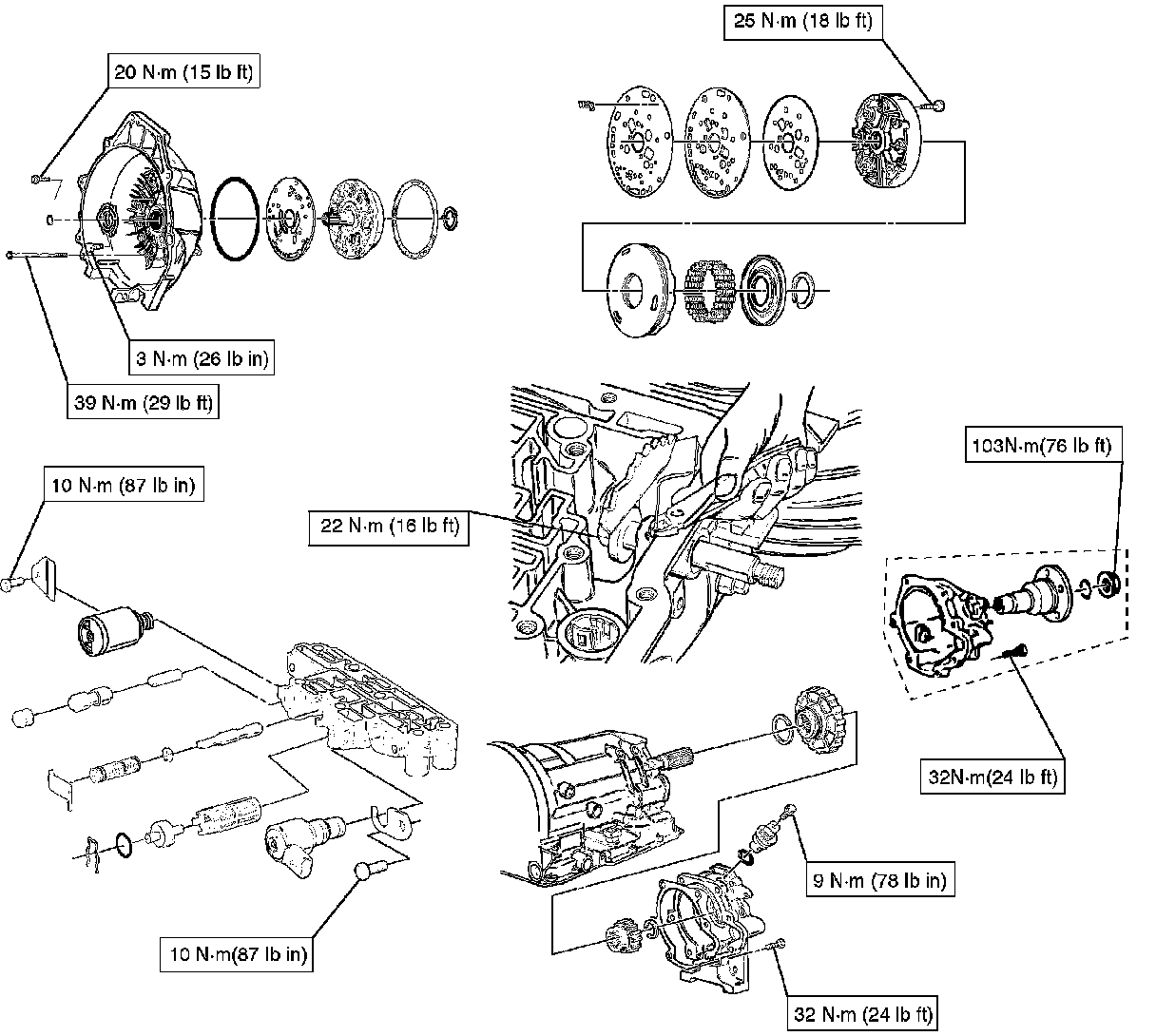

Torque Specifications

1 of 3

2 of 3

3 of 3

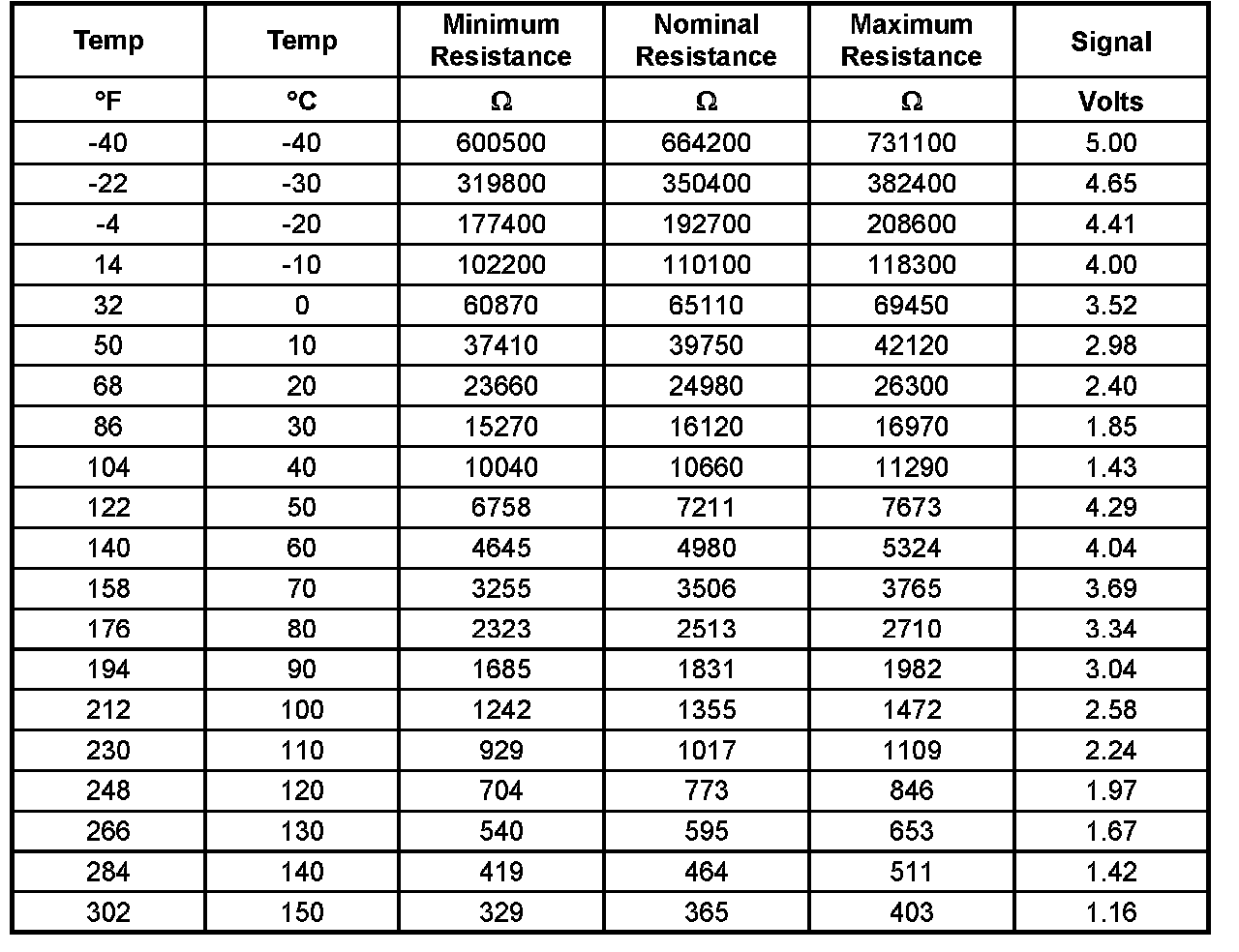

Transmission Fluid Temperature (TFT) Sensor Specifications
