Powertrain Control Module: Installation

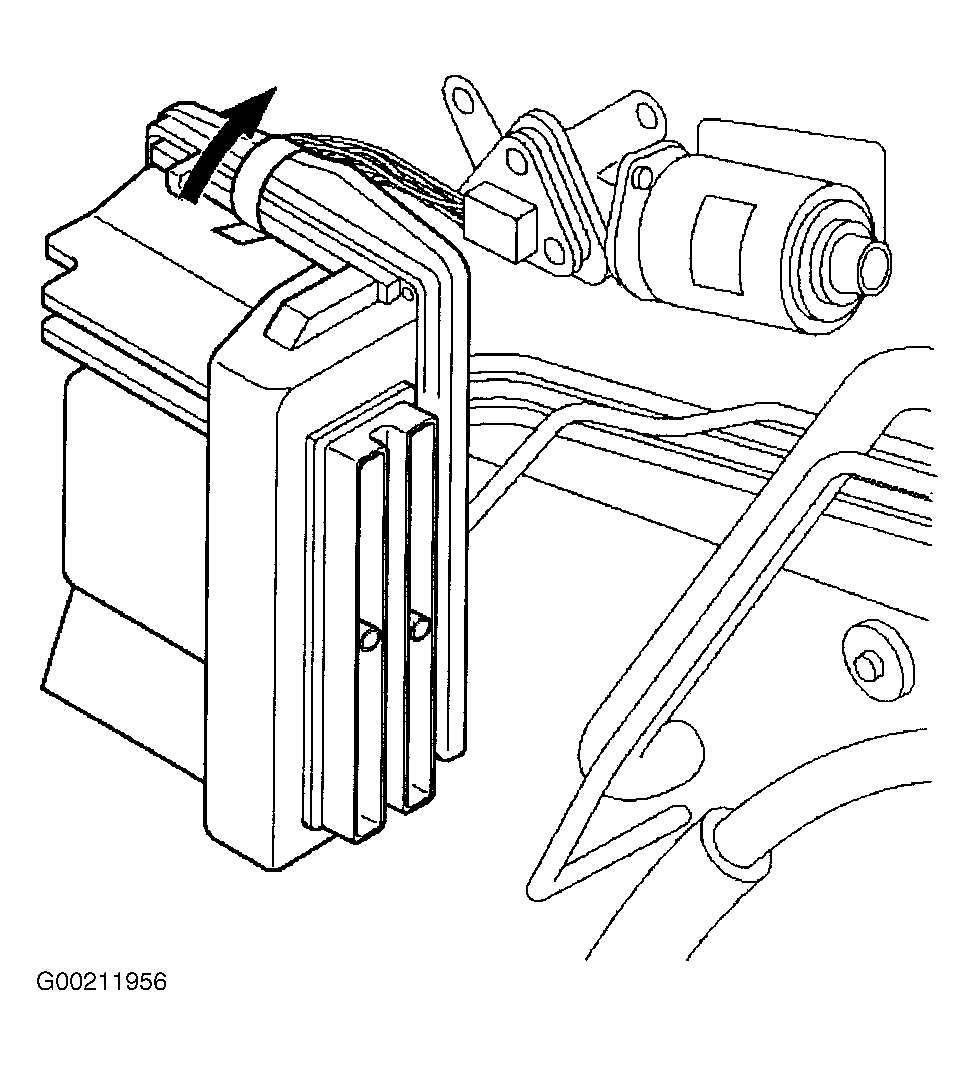

  1. Install the PCM to bracket and fix clip reversing order of operation. See Figure
  2. Connect the PCM electrical connectors.
  3. Install two screws to PCM electrical connectors. See Figure .
