DTC P0722 Automatic Transmission Output Speed Sensor (OSS) Low Input

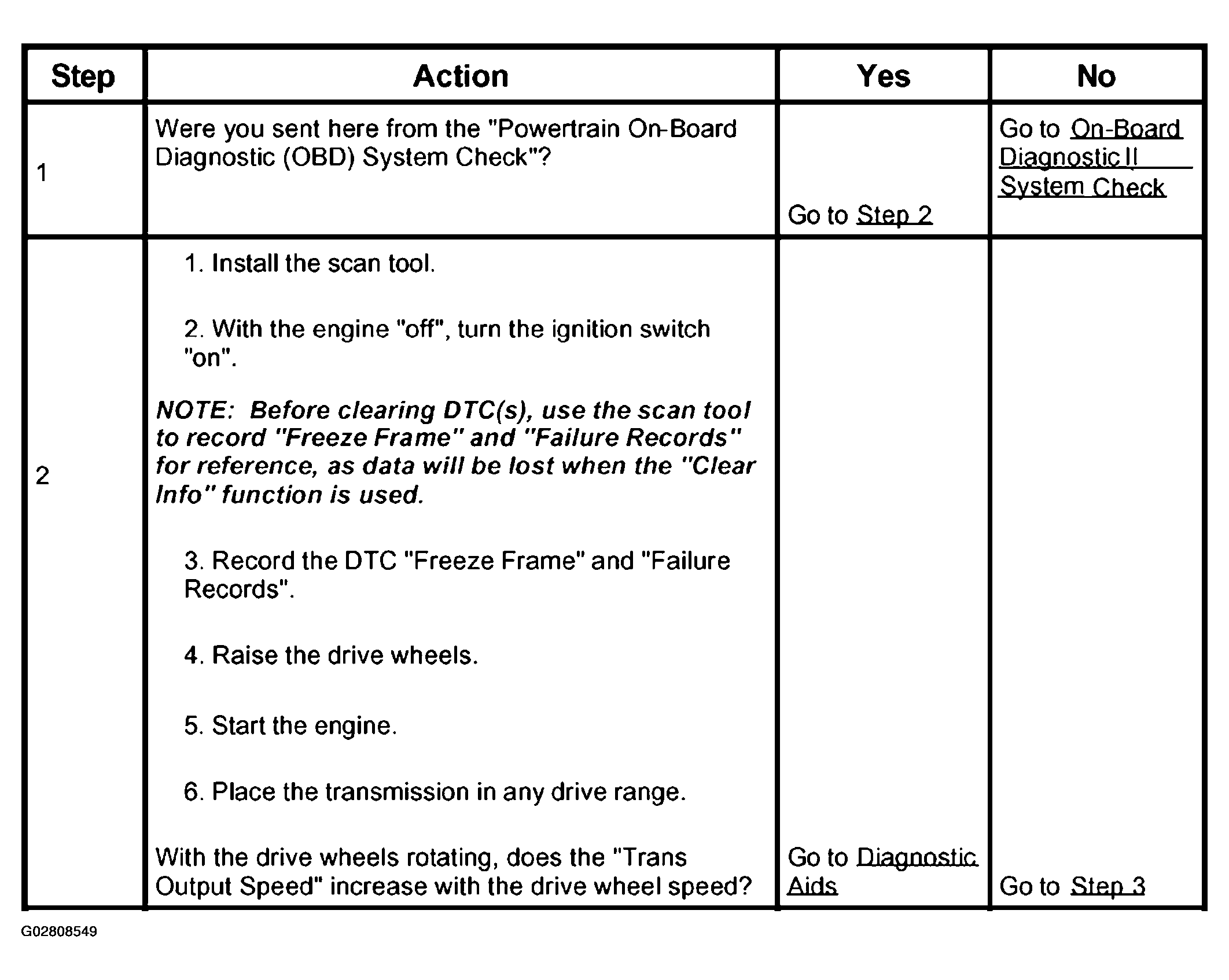

Fig 1: DTC P0722 Automatic Transmission Output Speed Sensor (OSS) Low Input Diagnostic Chart (1 Of 3)

Courtesy of ISUZU MOTOR CO.

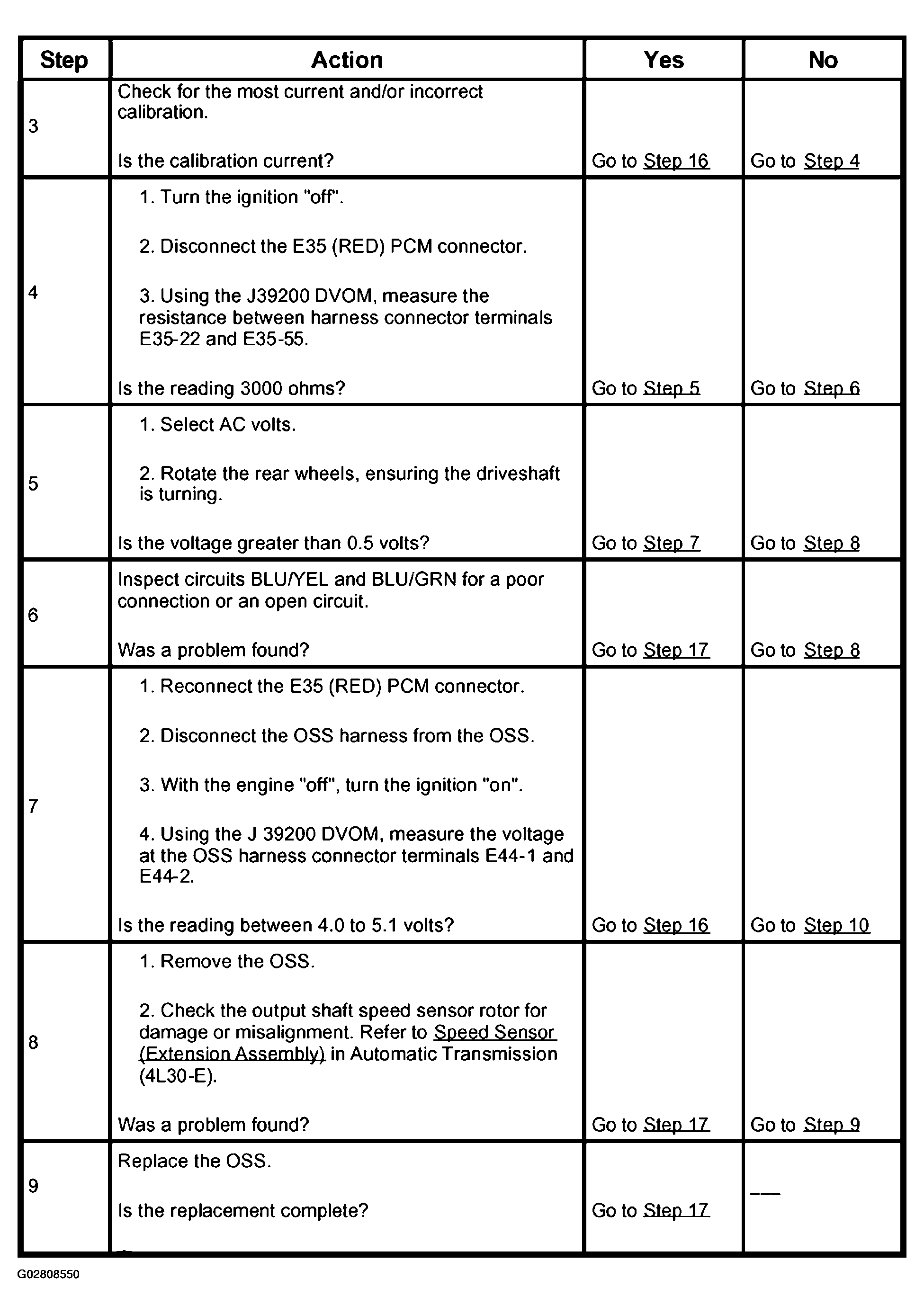

Fig 2: DTC P0722 Automatic Transmission Output Speed Sensor (OSS) Low Input Diagnostic Chart (2 Of 3)

Courtesy of ISUZU MOTOR CO.

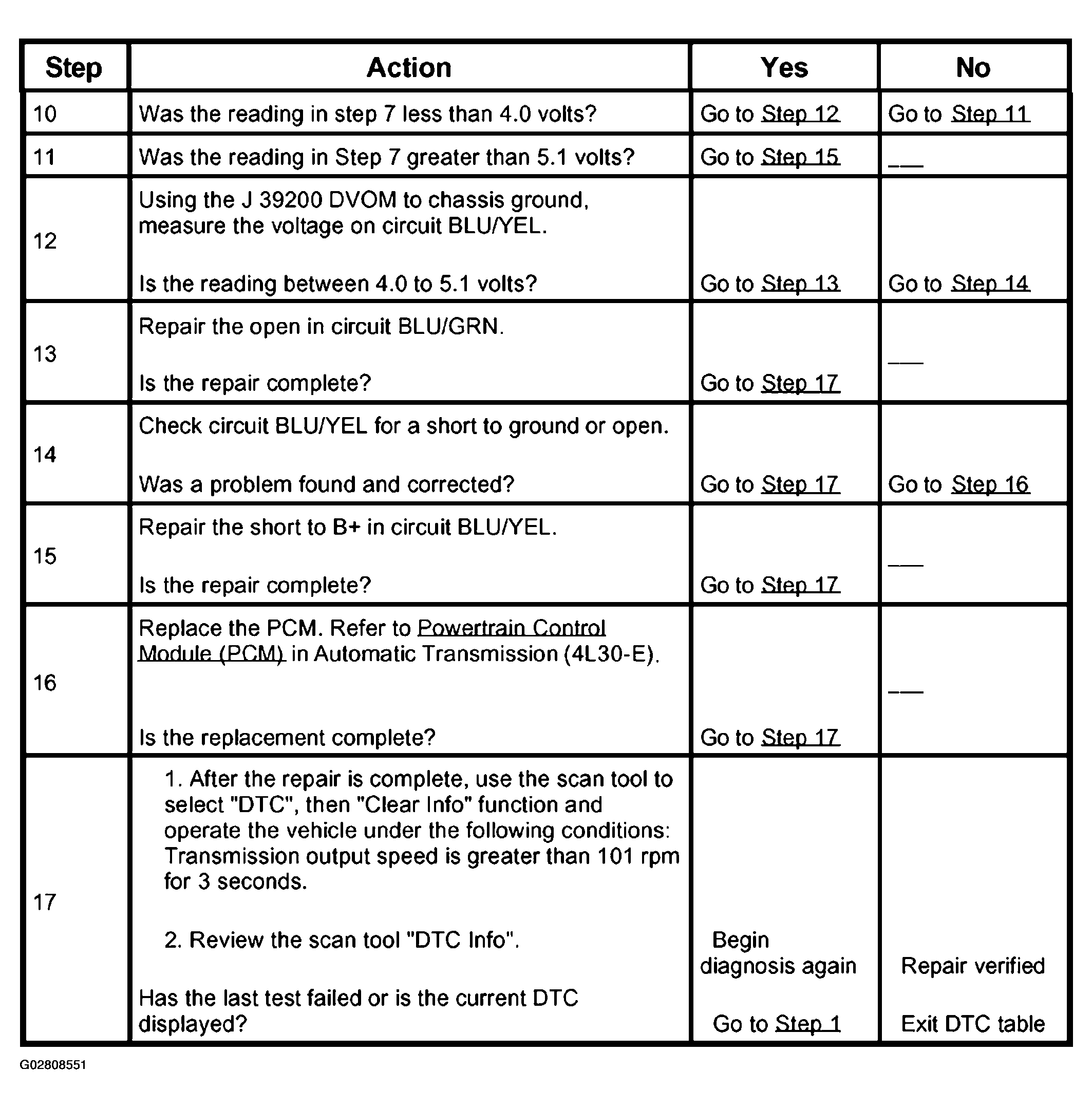

Fig 3: DTC P0722 Automatic Transmission Output Speed Sensor (OSS) Low Input Diagnostic Chart (3 Of 3)

Courtesy of ISUZU MOTOR CO.
