Range Switch Logic Table

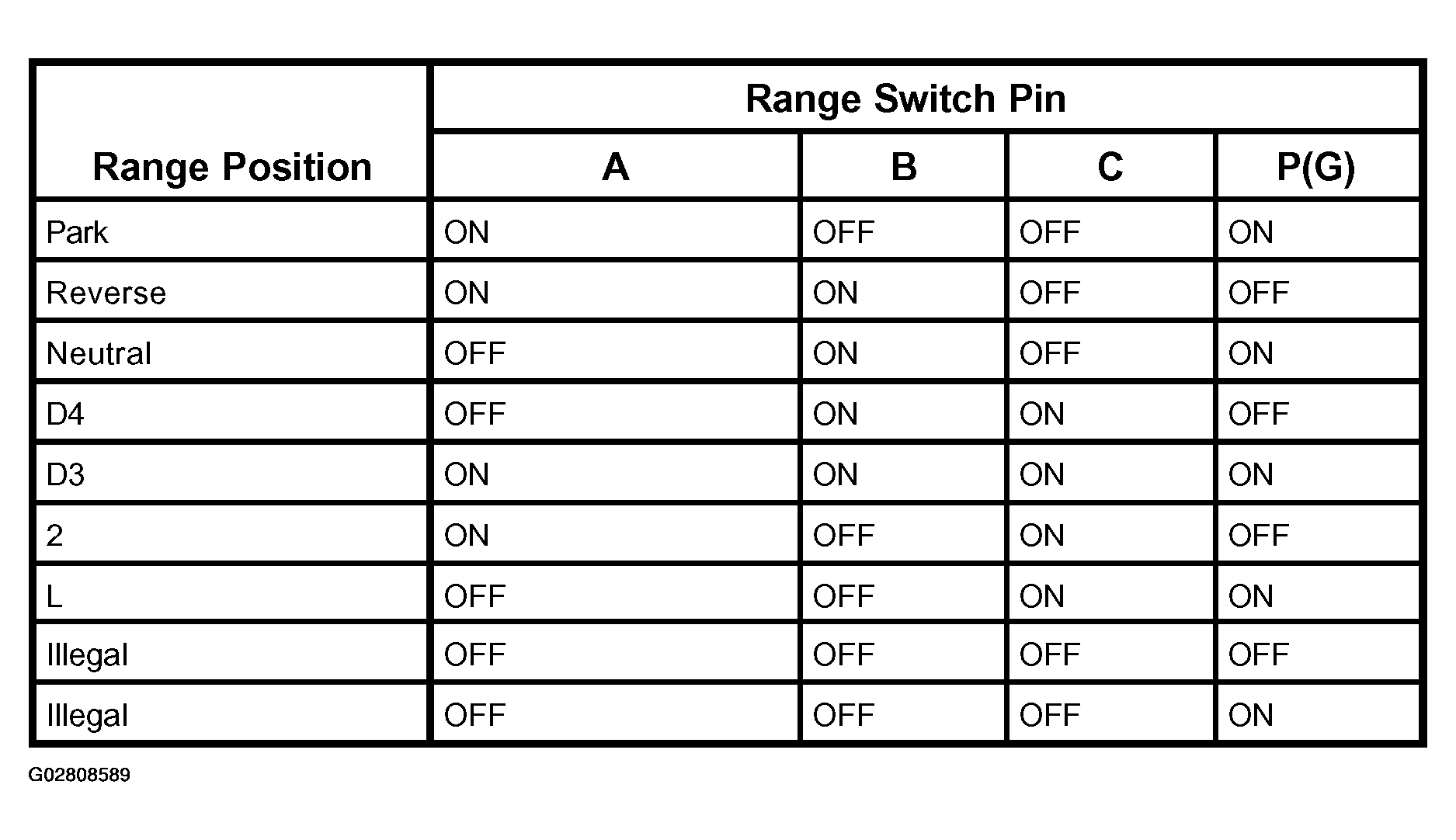

Fig 1: Range Switch Logic Table
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
