Torque Specifications

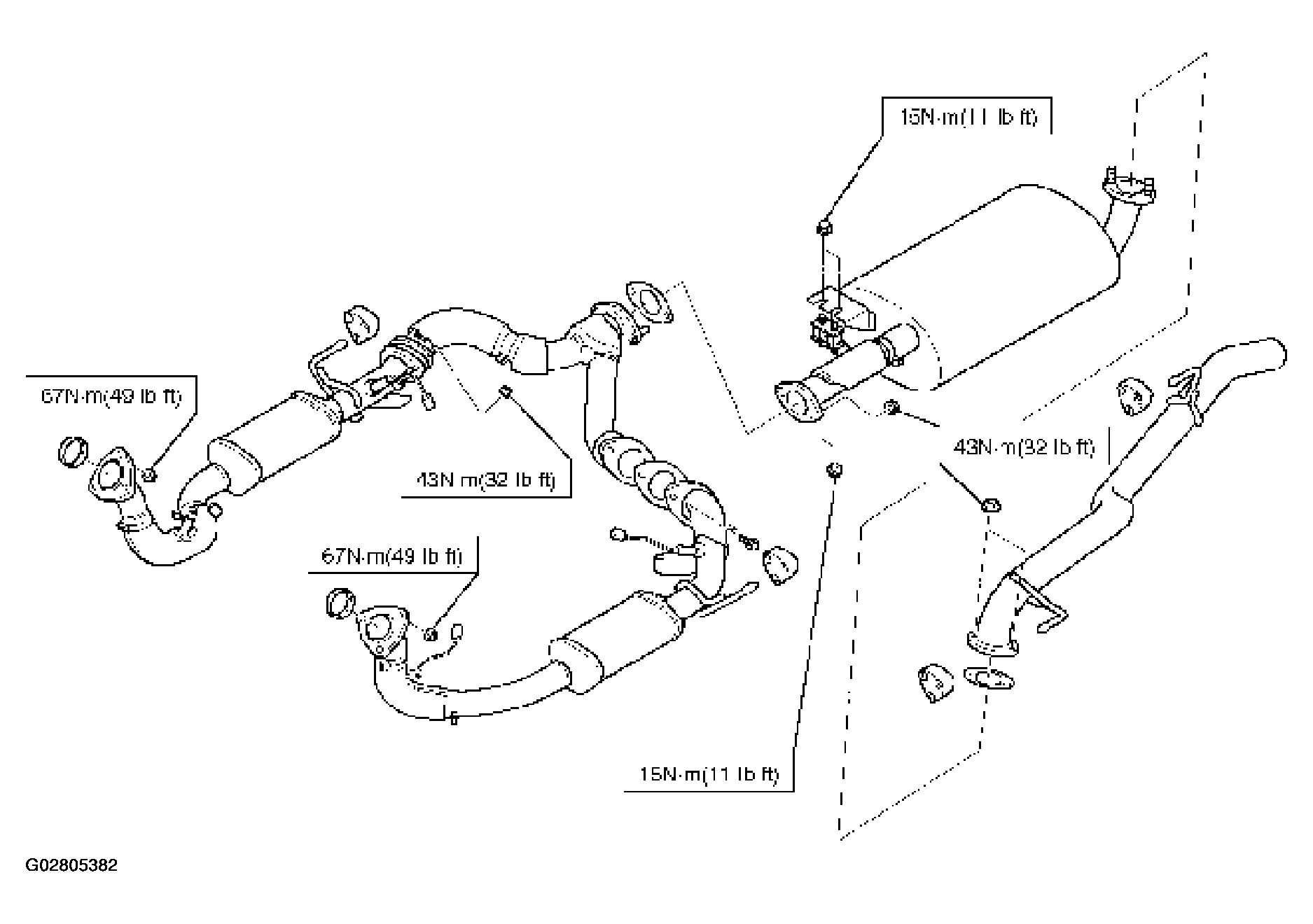

Fig 1: Exploded View Of Exhaust System Assembly With Torque Specifications
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
