Lifting Points And Supportable Point Locations: Notes

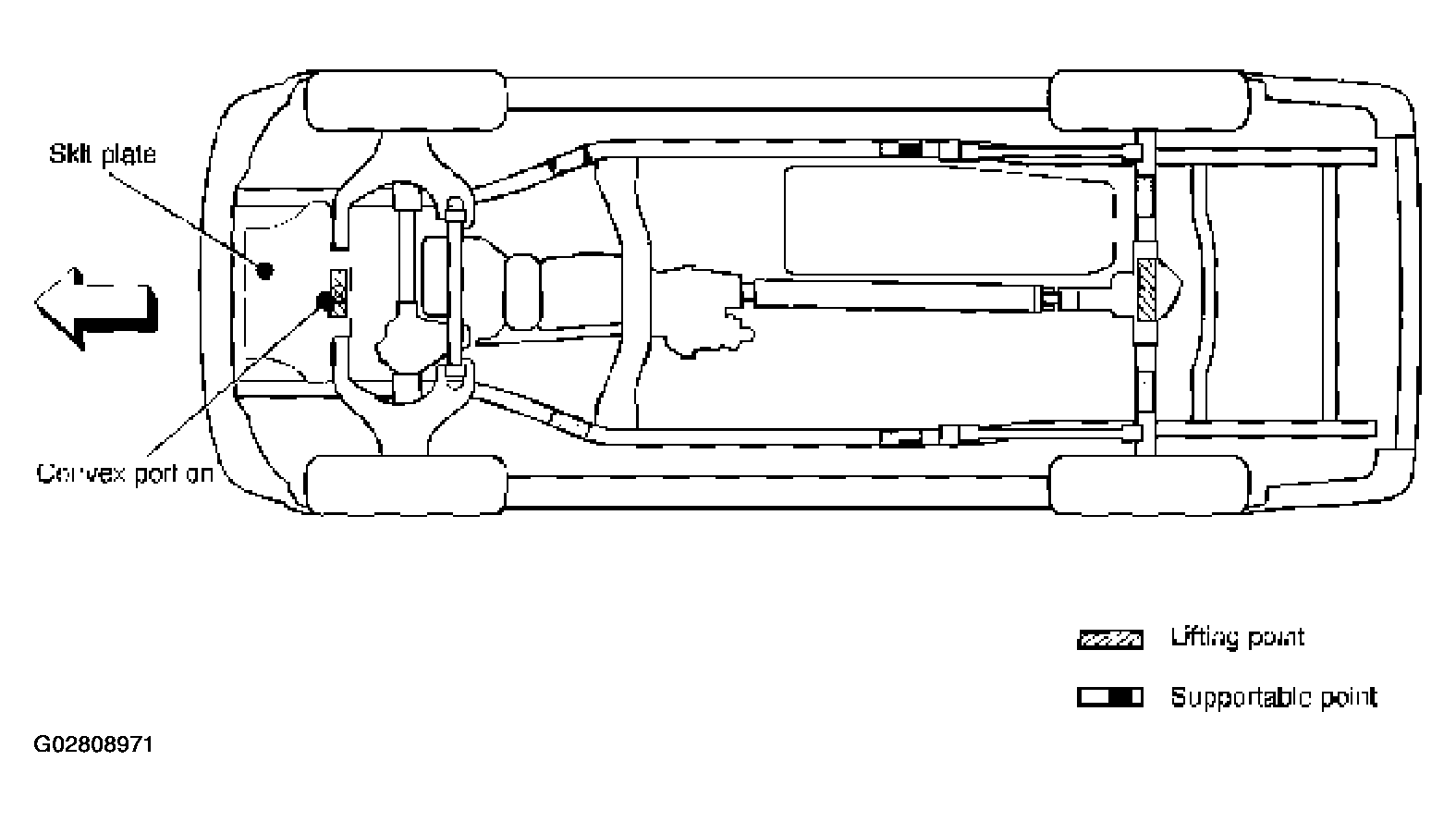

Fig 1: Identifying Lifting Points And Supportable Point Locations
G02808971Courtesy of ISUZU MOTOR CO.
