System Diagrams

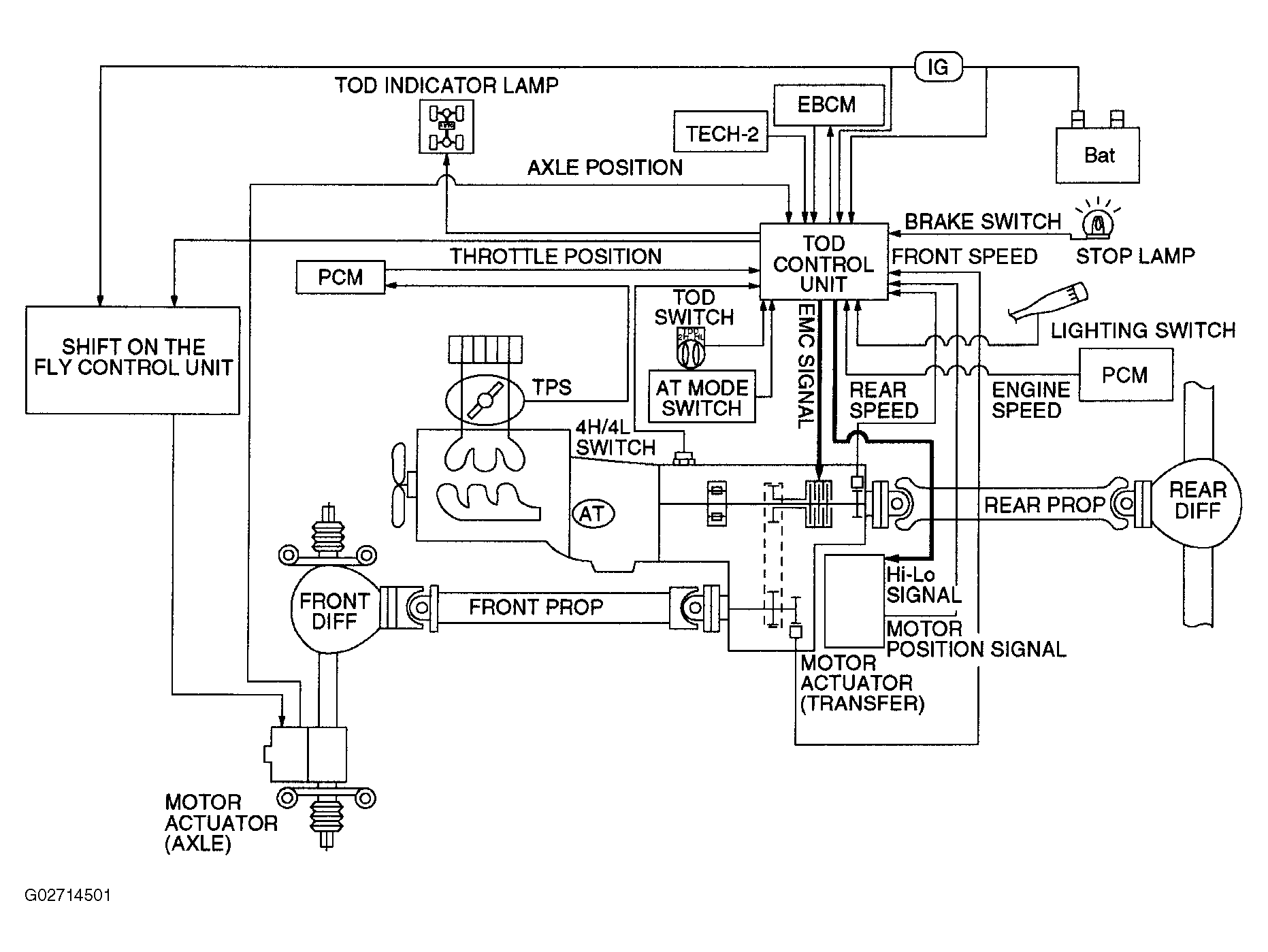

Fig 1: System Diagram - TOD Control Unit Of Shift On Fly System
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
