Connector Pin Assignment: Notes

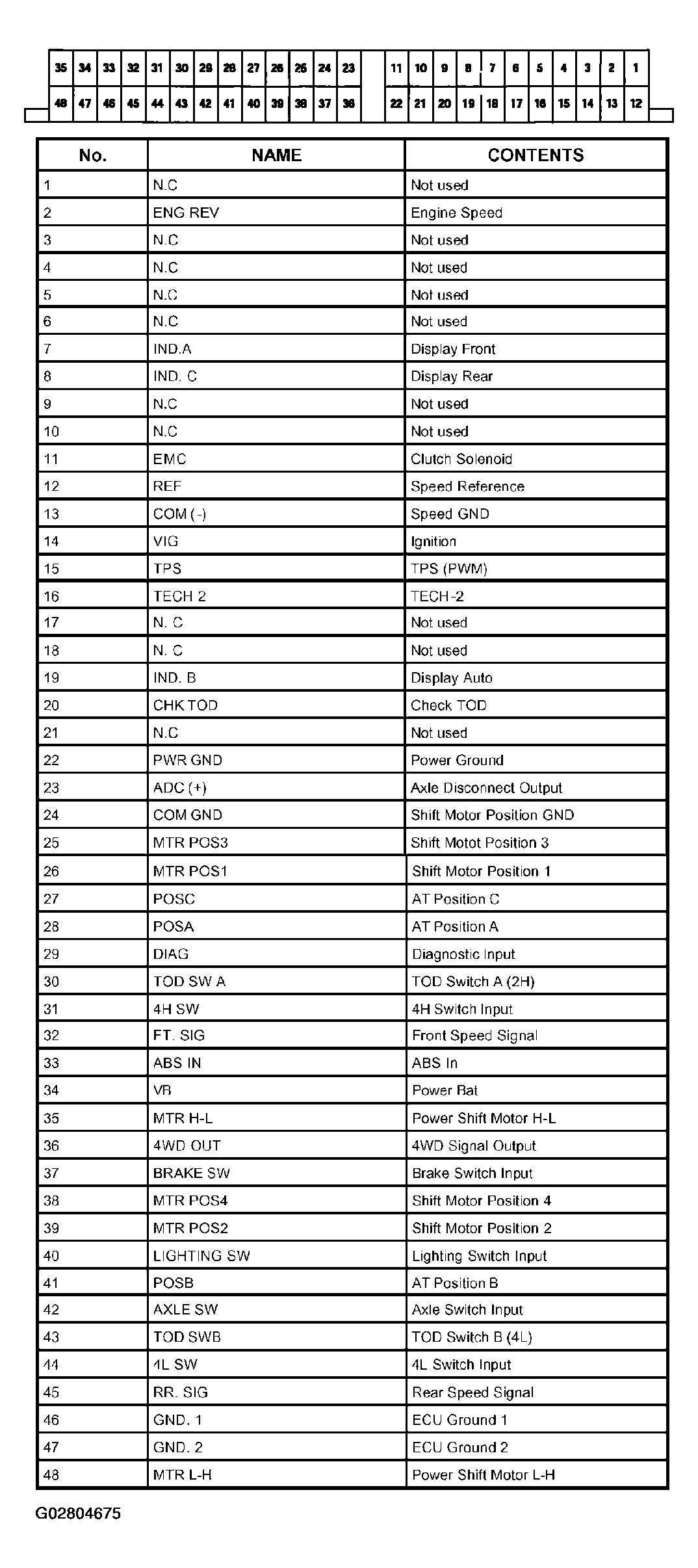

Fig 1: TOD Control Unit Pin Assignment Table
G02804675Courtesy of ISUZU MOTOR CO.
