Motor Position And Encoder Position Code

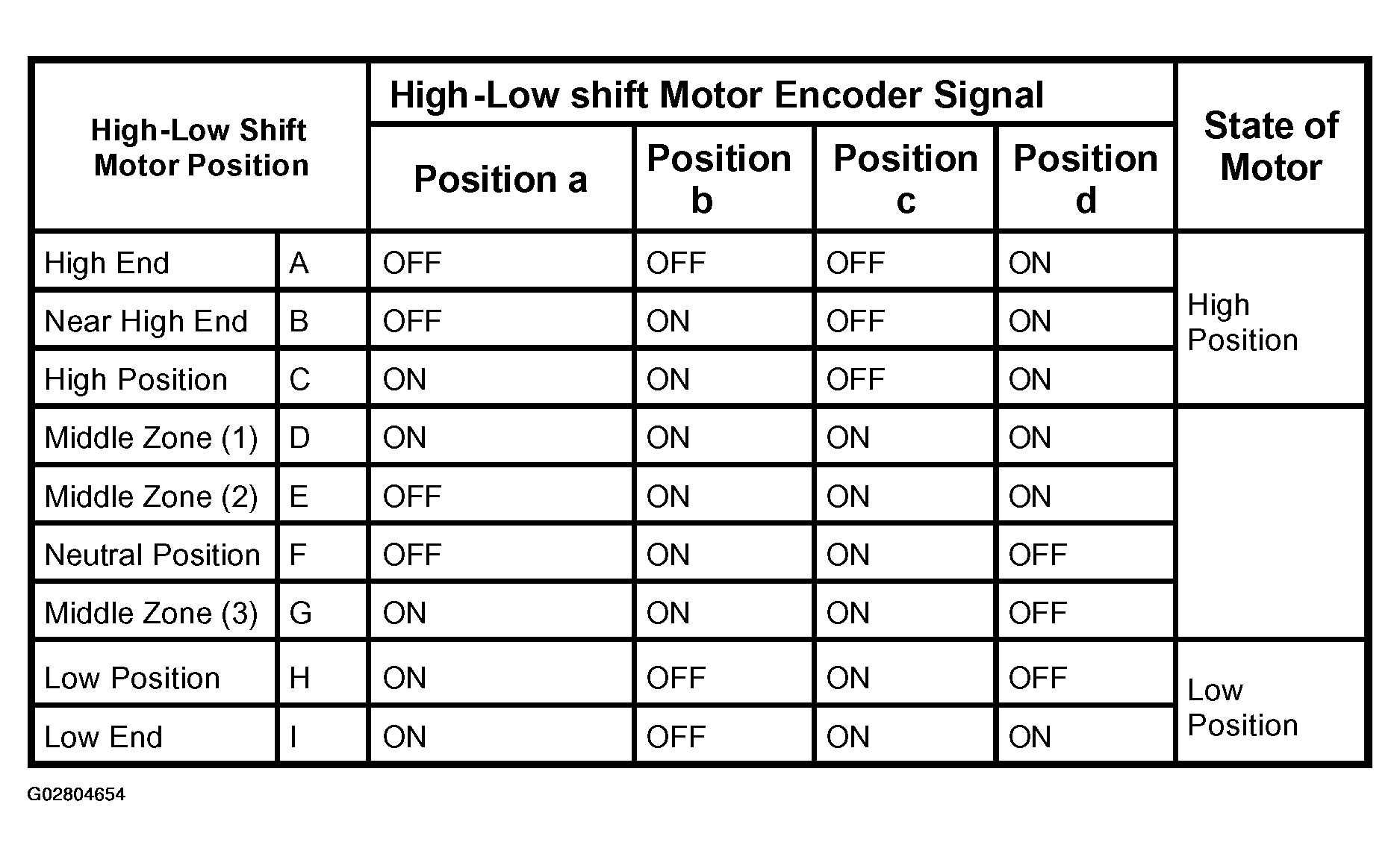

Fig 1: High-Low Shift Motor Position & Encoder Position Code Chart
G02804654Courtesy of ISUZU MOTOR CO.
