DTC P0706 Transmission Range Switch (Mode Switch) Performance

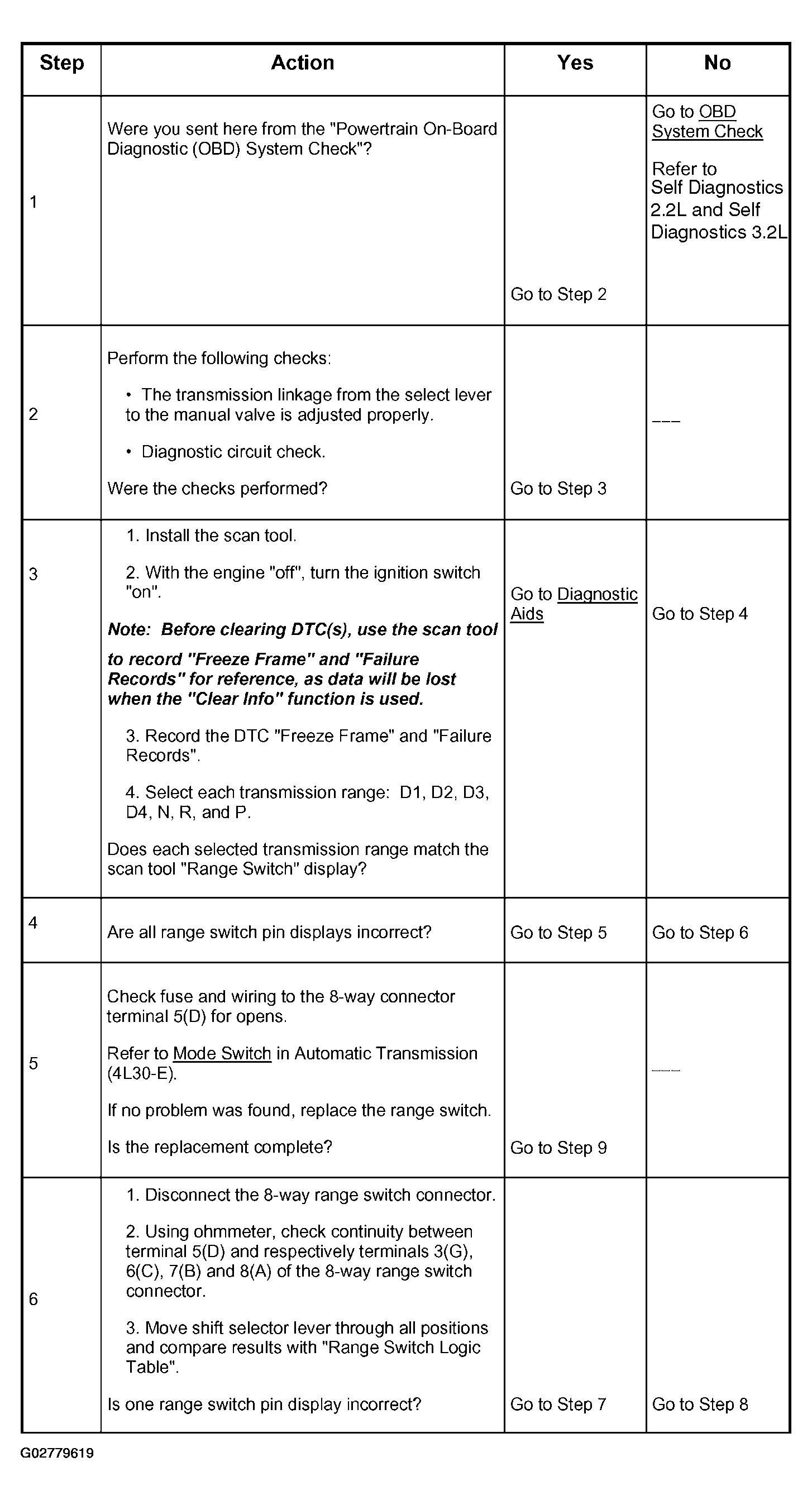

Fig 1: DTC P0706 Transmission Range Switch (Mode Switch) Performance Diagnosis Chart (1 Of 2)
G02779619Courtesy of ISUZU MOTOR CO.

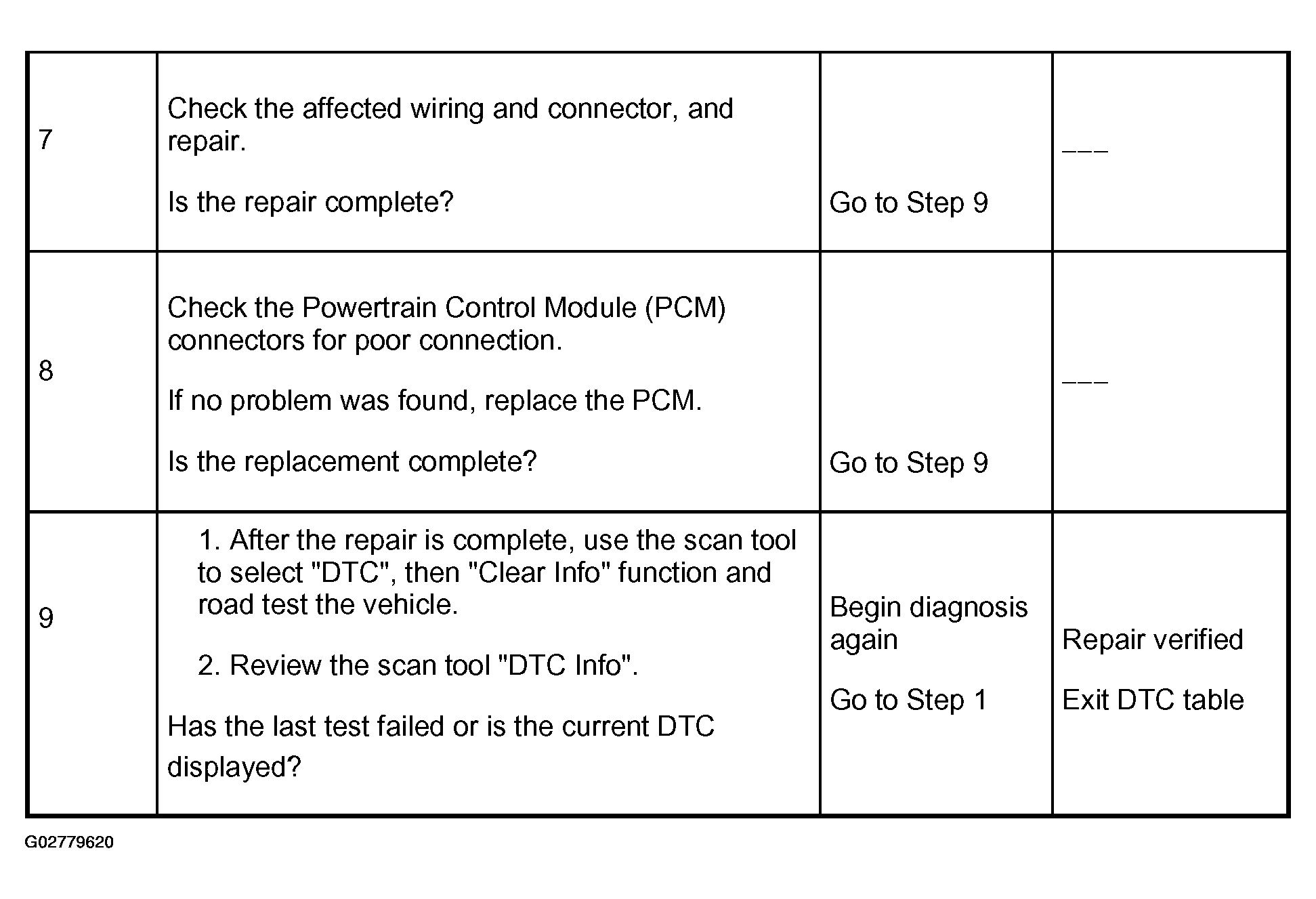

Fig 2: DTC P0706 Transmission Range Switch (Mode Switch) Performance Diagnosis Chart (2 Of 2)
G02779620Courtesy of ISUZU MOTOR CO.
