Power Steering Unit

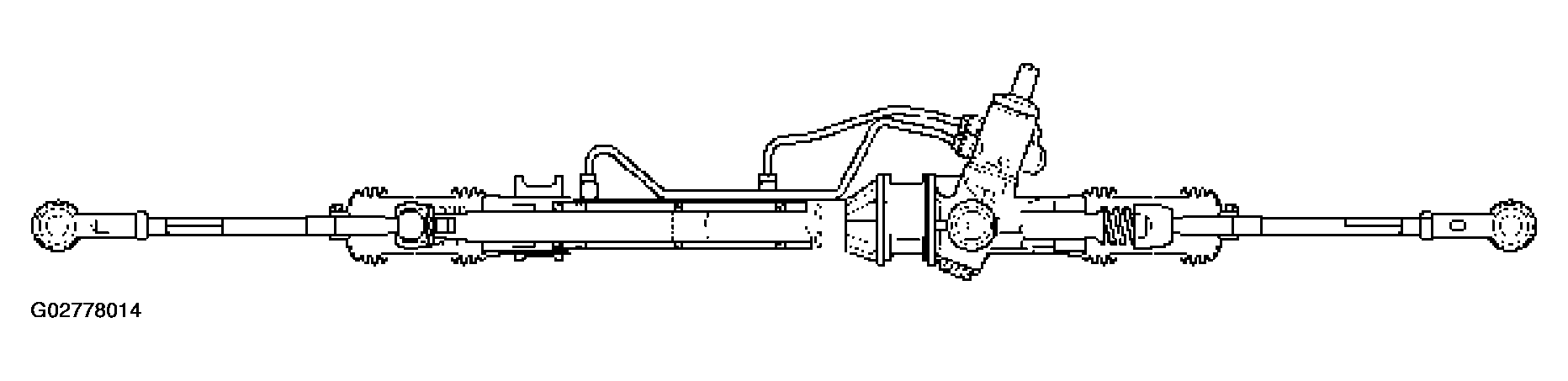

Fig 1: Identifying Power Steering Unit
G02778014

The power steering unit is rack and pinion type.

The toe- in angle can be adjusted by turning the rod on each side.

The steering housing cannot be disassembled.
